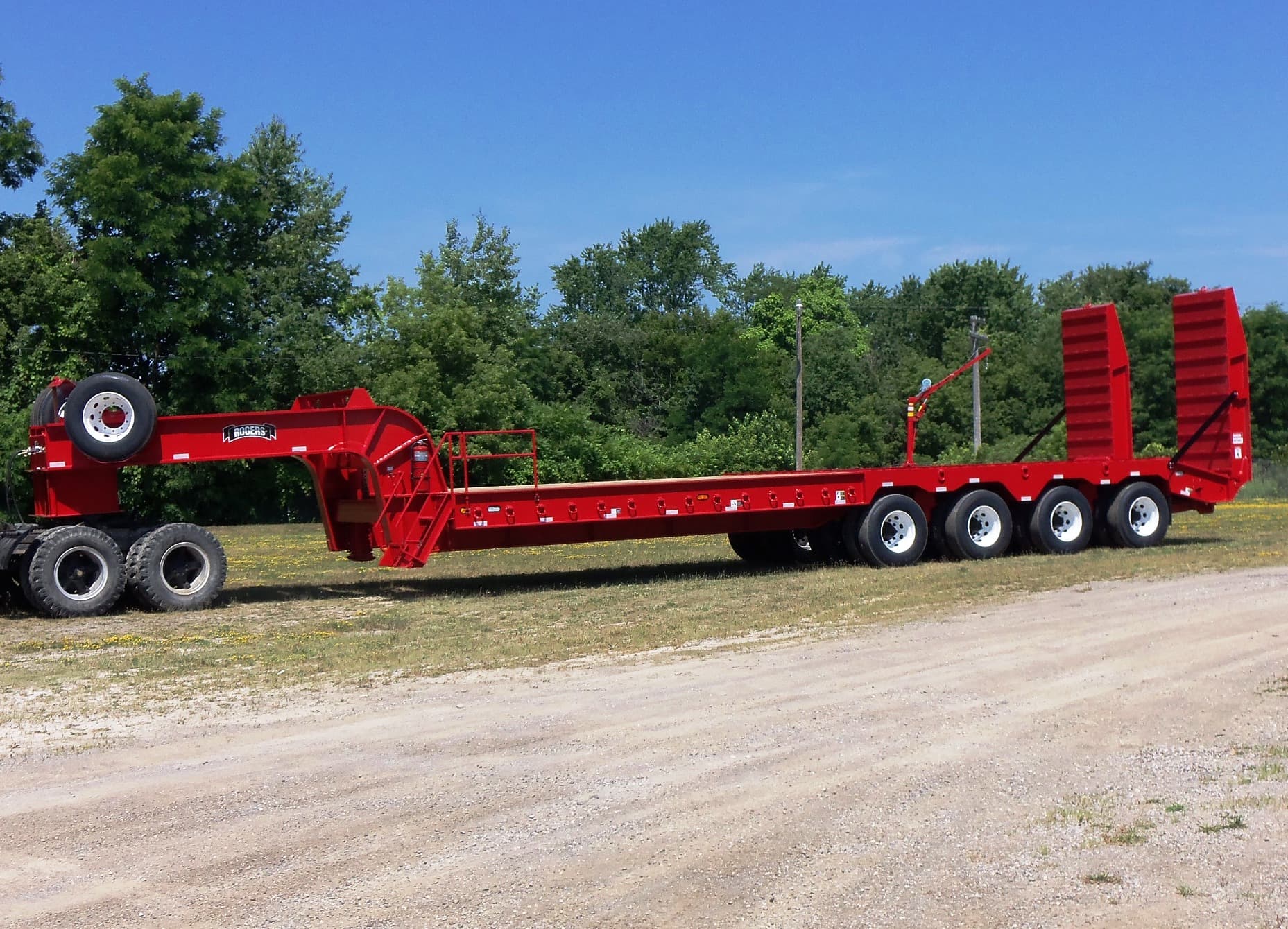

Rogers Brothers
FG127L 127-Ton Fixed Gooseneck
- Capacity
- 127 ton
- Axles
- 8
- Deck length
- 23.7 ft
Overview
From Rogers Brothers
This trailer was manufactured for a Canadian company that specializes in gold mining and exploration on four continents. The steel-covered beavertail and single-fold, hydraulic rear loading ramps with 1/2" plate and grouser bars offer improved traction to this rear-loading trailer.
Specifications
Capacity
- Capacity
- 127.0-ton
- Concentrated Load
- 253,532-pounds
- Concentrated Load Length
- 24'-0"
Dimensions
- Deck Length
- 23'-8"
- Deck Width
- 1'-4"
- Deck Style
- Platform
Running Gear
- Axles
- 8 axles
- Axle Type
- 33,069 lb capacity with oil-bathed bearings
- Suspension
- 132,277 lb capacity cantilever (trunnion) suspension
- Tires
- 315/80R22.5(L) low-profile tubeless radial
- Wheels
- 22.5 x 9.00 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes (no ABS)
General
- Trailer Type
- Fixed Gooseneck
- Trailer Use
- Rear Loading: Fixed Gooseneck
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
