Trail King

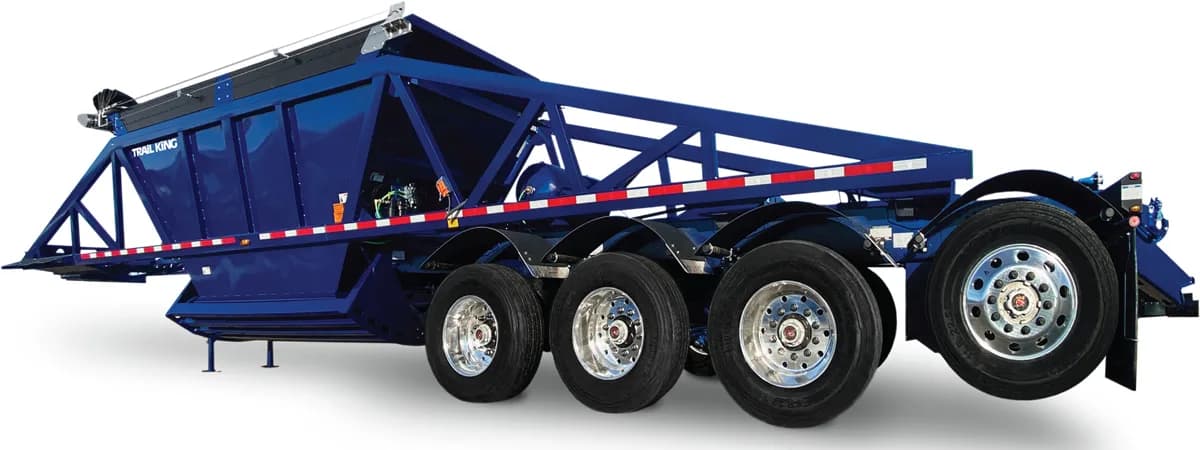

Lightweight, High-Capacity Bottom Dump Trailers
Find Your Specialized Solution
- Axles
- 15
Overview
Full Oscillating Fifth Wheel PlateFeatures a spherical, chrome-brushed design that reduces trailer stress and extends the service life of the tractor and frame. Heavy-Duty Gate StopIncreased productivity and greater output with fast cycle times and recently modified easy-to-use gate limit setting. Convenient position with 6 adjustable locations. Infinite gate control available. Large Air ReservoirStandard 60 gallon air resevoir allows more capacity for the gate and quicker operation. Bolt-on Push BlockAlso available with a pintle hitch Large 11'6" Clam Overlapping knife edge ensures full closure of gates. Continuous hopper slopes with a 54"x99" hopper opening, deliver complete dumping and reduce areas of material buildup. Maximize fleet ROI with Trail King bottom dump trailers. Our engineered, lightweight, cross-bracing and gusset design eliminates stress-point flexing while increasing payload capacity. This is built for superior weight savings and hauling performance. Engineered for rugged durability and global hauling efficiency. Our bottom dump trailers can haul more payloads than ever before. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKBD Bottom Dump Protect Your Investment with Our Complete Line of Services Trail King Paint Options We don’t have any current videos of this product on our YouTube channel (YET), but go subscribe so you don’t miss any new uploads! Bottom Dump in Augmented Reality powered by JigSpace Published Date: June 17, 2026
Specifications
General
- TKBD Bottom Dump Trailer Performance Specs
- BD11-202
- Large 11'6" Clam
- Overlapping knife edge ensures full closure of gates. Continuous hopper slopes with a 54"x99" hopper opening, deliver complete dumping and reduce areas of material buildup.
Capacity
- Capacity
- 11 cu. yds.
- Empty weight
- 9,925 lbs. lbs
Dimensions
- Overall length
- 19’ 11”
- Overall height
- 8′ 4”
- Overall width
- 102”
Running Gear
- KP to center of last axle
- 15′ 11″
