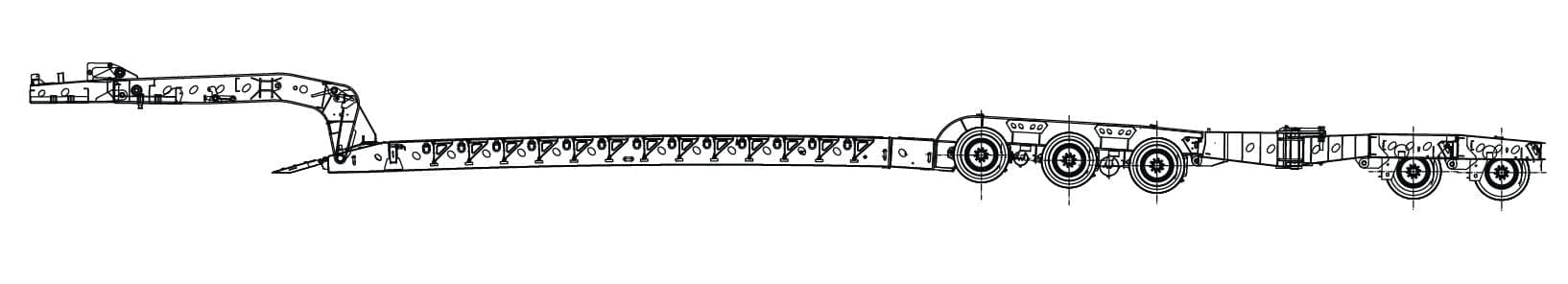

Globe 60 ton lowboy drawing 1285196 three-quarter front view

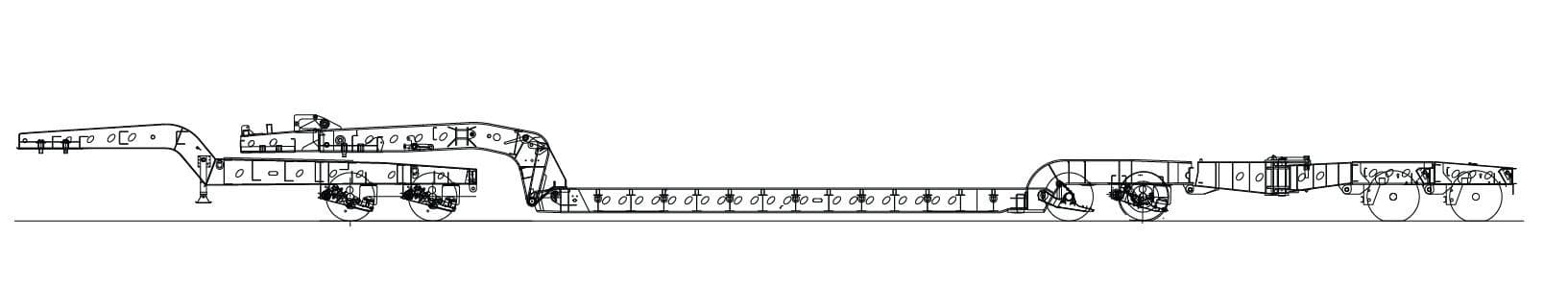

Globe 60 ton lowboy drawing 1205583 drop side
Globe Trailers 60LB1309412.pdf
60 ton Globe lowboy trailer

Globe Trailers

60-80 Ton Lowboys

Contact Us

Capacity
80 ton
Axles
5
Deck length
30 ft
Deck height
22 in

Overview

From Globe Trailers

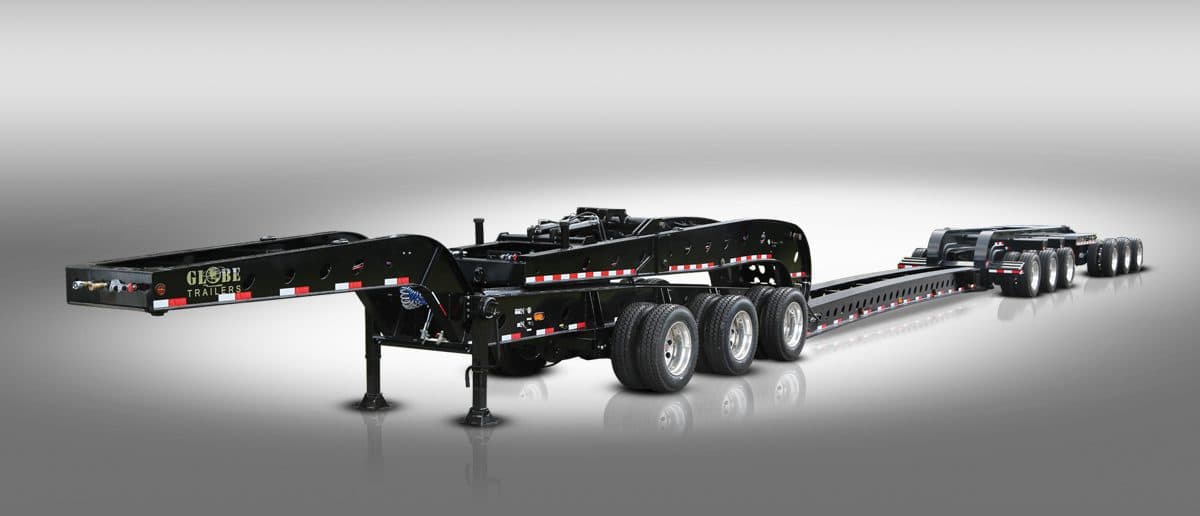

60-Ton Capacity · 22" Deck Height · 26' Deck Length · Hyd. Detach. Neck · 60-Ton Capacity · 22" Deck Height · 28' Deck Length · Hyd. Detach. Neck · 60-Ton Capacity · 22" Deck Height · 26' Deck Length · Hyd. Detach. Neck · 3 Axles · 24" Deck Height · 98" Swing Clearance · 26' Deck Length · 60-Ton Capacity · 22" Deck Height · 28' Deck Length · Hyd. Detach. Neck · 60-Ton Capacity · 22" Deck Height · 26' Deck Length · Hyd. Detach. Neck · 60-Ton HGG · 18" Deck Height (6" GC) · 28' Deck Length · NGB Detach. Neck Globe 60–80 Ton Lowboy Trailer specs at a glance: capacity 60–80 ton, deck height 22–24 in, deck length 28 ft, swing clearance 114–126 in, axle setup 3+2 / 3+3+3, hydraulic detachable gooseneck (RGN) — built to order in the USA. Globe builds its 60-80 ton lowboys as hydraulic detachable gooseneck (RGN) trailers in Bradenton, Florida, USA: the neck detaches and the front of the deck lowers to the ground for front loading. The category represents nominal payloads of 120,000 to 160,000 pounds (US short tons), and the rating depends on the complete trailer design and load footprint. Catalogue specs for the category: deck height 22–24 in, deck length 28 ft, swing clearance 114–126 in, axle setups 3+2 / 3+3+3. A 60 ton lowboy trailer carries a nominal 120,000-pound payload. A 55 ton design can be configured for 60 tons over a 16-foot load concentration, and some 60 ton ratings use a three-axle trailer with a flip axle and a longer load footprint. A 65 ton lowboy trailer carries a nominal 130,000-pound payload. Globe has built 65 ton lowboys as three-axle hydraulic detachable gooseneck trailers with a 28-foot deck, engineered like the rest of the category for the complete trailer design and load footprint. A 70 ton lowboy trailer carries a nominal 140,000-pound payload. Higher concentrated loads are carried by trailer axle groups combined with multi-axle jeeps at the front and stingers at the rear, with the complete modular arrangement engineered for the load. An 80 ton lowboy trailer carries a nominal 160,000-pound payload, the top of the Globe lowboy range, and is engineered as a complete modular arrangement for the load concentration. Options across the category include manual or hydraulic flip axles and onboard hydraulic power units (pony motors) with 13-hp Honda gasoline, 10-hp Yanmar or Hatz diesel, or 27-hp diesel engines. Looking to buy? Browse 60-80 ton lowboy trailers for sale in stock at authorized Globe dealers, or request a factory quote or call 1-800-800-3484 with the load weight, dimensions, and the length over which its weight is supported. Looking to buy? Browse 60–80 Ton Lowboy Trailers for sale in our in-stock Globe Trailers dealer inventory, or call 1-800-800-3484 for a factory-direct quote. The 60-80-ton category represents nominal payloads of 120,000 to 160,000 pounds. The rating depends on the complete trailer design and load footprint. For example, a 55-ton design can be configured for 60 tons over a 16-foot load concentration; carrying higher concentrated loads can require a modular trailer with jeeps and stingers. Options depend on the required load concentration and include trailer axle groups combined with multi-axle jeeps at the front and stingers at the rear. Some 60-ton ratings use a three-axle trailer with a flip axle and a longer load footprint. Higher concentrated-load ratings require the complete modular arrangement to be engineered for the load. Yes. Globe manufactures these lowboys in Bradenton, Florida, USA. Yes. Globe offers hydraulic detachable-gooseneck configurations for its heavy lowboys. The neck detaches and the front of the deck lowers to the ground for front loading. Request a quote online or call 1-800-800-3484 with the load weight, dimensions, and the length over which its weight is supported so Globe can specify the required configuration. Contact Globe at 1-800-800-3484 or request a factory quote online for a 60-, 70-, or 80-ton application. You can also check Globe dealer inventory for a unit with the required rating and load footprint. Options include manual or hydraulic flip axles and onboard hydraulic power units, often called pony motors. Power-unit choices include a 13-hp Honda gasoline engine, 10-hp Yanmar or Hatz diesel engines, and a 27-hp diesel option. The compatible axle and power unit depend on the trailer design and hydraulic demand.

Specifications

Capacity

60-80 ton lowboy trailers for sale
in stock at authorized Globe dealers, or request a factory quote or call 1-800-800-3484 with the load weight, dimensions, and the length over which its weight is supported.
60–80 Ton Lowboy Trailers for sale
in our in-stock Globe Trailers dealer inventory, or call 1-800-800-3484 for a factory-direct quote.
Rated Capacity
60-80 ton

Frame

Steel Type
T-1 100K PSI yield strength steel

Safety

Safety System
Air lock safety system with safety bar

Hydraulics

Flip Axle
Patented hydraulic flip axle

Running Gear

Air Bags
30K-lb air bags standard
Axle Configuration
3+2 (5 axles)

Decking

Cross Member Spacing
12 inches

General

Fittings
Centralized fittings (protected from equipment contact)
Manufacturing
100% US-made, locally sourced steel, Bradenton, FL

Warranty

Structural Warranty
10-year structural warranty
Wheel Warranty
5-year STEMCO wheel warranty

Dimensions

Deck Height
22"
Deck Length Range
28' to 30'

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
