Trail King

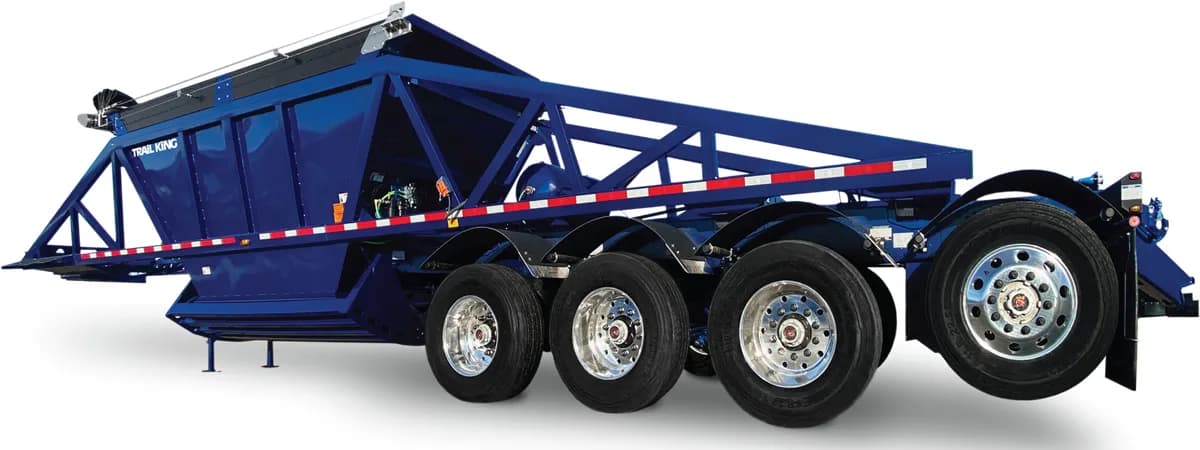

TKBD Bottom Dump
Interested in Our Hauling Solutions?
- Axles
- 15
Overview
Full Oscillating Fifth Wheel PlateFeatures a spherical, chrome-brushed design that reduces trailer stress and extends the service life of the tractor and frame. Heavy-Duty Gate StopIncreased productivity and greater output with fast cycle times and recently modified easy-to-use gate limit setting. Convenient position with 6 adjustable locations. Infinite gate control available. Large Air ReservoirStandard 60 gallon air resevoir allows more capacity for the gate and quicker operation. Bolt-on Push BlockAlso available with a pintle hitch Large 11'6" Clam Overlapping knife edge ensures full closure of gates. Continuous hopper slopes with a 54"x99" hopper opening, deliver complete dumping and reduce areas of material buildup. The bottom dump is engineering to be lightweight, yet rugged and strong. Its lightweight cross-bracing and gusset design minimizes the twisting and flexing in critical stress areas while delivering maximum weight savings. This trailer can haul more payloads than ever before. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKBD Bottom Dump Protect Your Investment with Our Complete Line of Services Trail King Paint Options We don’t have any current videos of this product on our YouTube channel (YET), but go subscribe so you don’t miss any new uploads!
Specifications
General
- STANDARD EQUIPMENT
- BD11-202
- Large 11'6" Clam
- Overlapping knife edge ensures full closure of gates. Continuous hopper slopes with a 54"x99" hopper opening, deliver complete dumping and reduce areas of material buildup.
Capacity
- Capacity
- 11 cu. yds.
- Empty weight
- 9,925 lbs. lbs
Dimensions
- Overall length
- 19’ 11”
- Overall height
- 8′ 4”
- Overall width
- 102”
Running Gear
- KP to center of last axle
- 15′ 11″
