Trail King

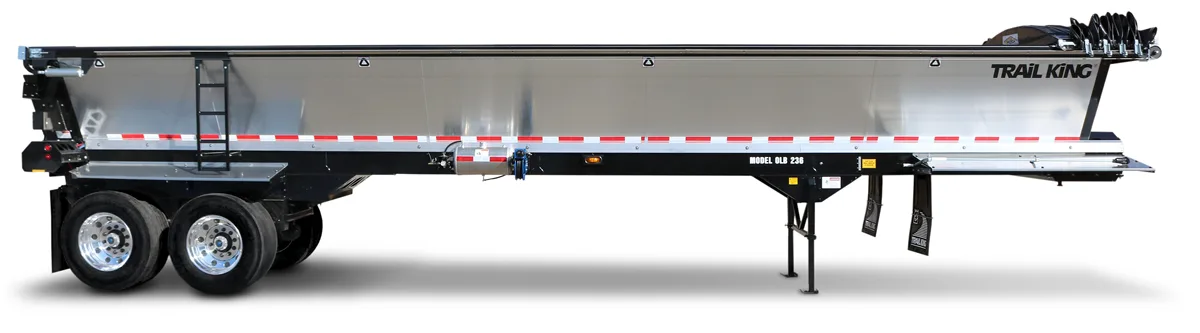

TKLB Live Bottom
Interested in Our Hauling Solutions?
- Axles
- 25
Overview
Front Bearing Tensioner AssemblyHeavy duty outboard design for easier maintenance and servicing. Pitch Roller Chain4” pitch chain with frictionless z-bar design. Sprocket & chain guide profile capable of reversing option. Hydrostatic DriveSingle or dual direct hydrostatic drive with double reduction planetary gearbox and drive tube. Exterior Mounted LinesAir and electrical mounted standard with aluminum covers or optional stainless steel. Hopper WallsConstructed with longer lasting .160" (4mm) thick AR450 wear plate (rear half standard, full length optional). Exterior SheetingAluminum shown on full length trailer. Stainless steel shown above. Side wall and flat front wall (insulation optional) attached to steel body with high strength adhesives. Choose aluminum or stainless. Designed for strength and speed – this live bottom delivers! Our innovative body distributes weight to maximize your payloads and maintain high levels of maneuverability with multiple axle configurations. The frictionless drive system provides efficient horizontal discharge while unloading in one revolution or less! The aerodynamic design features smooth side panels, providing corrosion prevention and a clean shiny finish. This trailer will provide a high level of return on your investment with consistent performance. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKLB Live Bottom Protect Your Investment with Our Complete Line of Services Trail King Paint Options
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
