Interstate Trailers

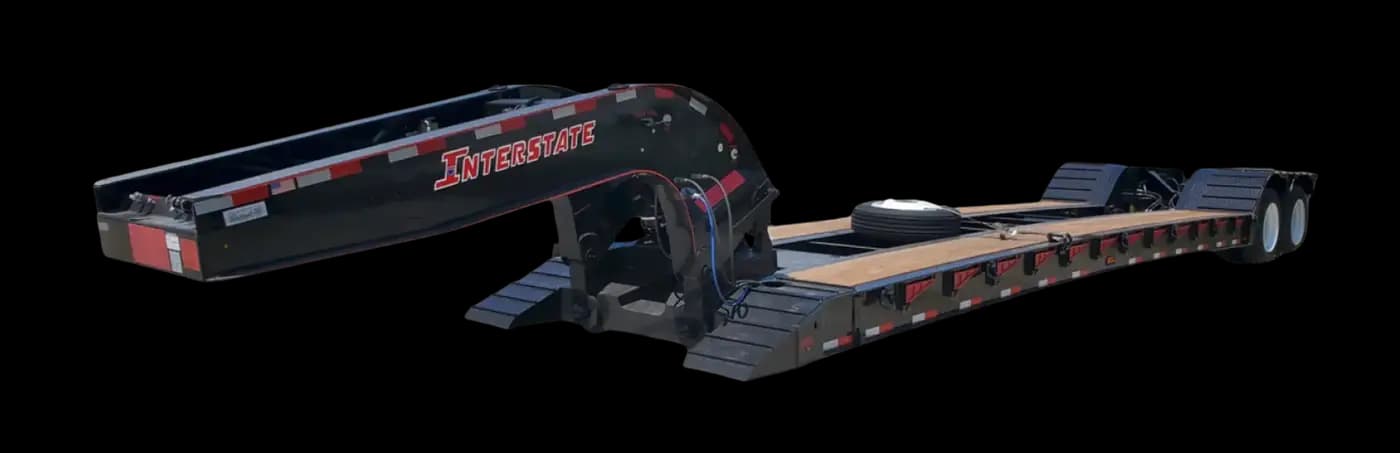

102 SDGN Lowboy
- Capacity
- 51 ton
- Deck length
- 24 ft
Overview
From Interstate Trailers
102,000 lb. capacity lowboy trailer with detachable gooseneck for efficient loading/unloading.
Specifications
Capacity
- Capacity
- 102,000 lbs
Weight
- Trailer weight
- 19,600 lbs.
Dimensions
- Deck length
- 24’0″
- Deck width
- 8’6″
Running Gear
- Brakes
- Air brakes
General
- Model Code
- SDGN: self-lifting detachable gooseneck
Documents
- Spec Sheet (PDF)
- https://interstatetrailers.com/wp-content/uploads/2026/09/102SDGN_Spec.pdf
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
