Kaufman Trailers

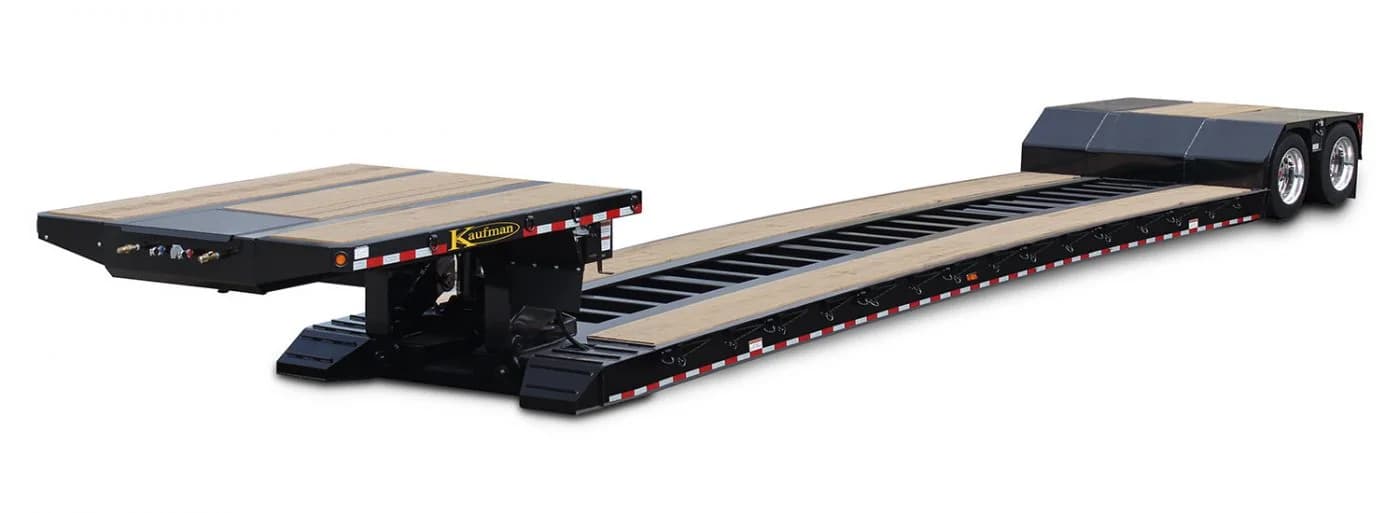

30 Ton Detachable Gooseneck Trailer - Deck On The Neck
- Capacity
- 30 ton
- Axles
- 2
- Deck length
- 29 ft
- Deck height
- 20 in
- GVWR
- 77,500 lb
Overview
The Kaufman Trailers 30 Ton Detachable Gooseneck Trailer - Deck On The Neck is a 30-ton RGN trailer with 2 axles, a 29-foot deck and a 20-inch loaded deck height. Gross vehicle weight rating is 77,500 lb. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Capacity
- G.V.W.R.
- 77,500 lbs. (Capacity 60,000 lbs. in 16 ft. span or greater)
Dimensions
- Deck Length
- 29' well standard. Additional Optional Lengths
- Deck Height
- 20" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Upper Deck
- 120” Long x 101.5” Wide, Oak Decking, D-Rings on Side-rail
- Lower Deck
- 29' well length
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- 12" Fabricated
- Floors
- 2" oak flooring
- Toolbox
- Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
- Tie Downs
- Forged D-rings
General
- Fenders
- Load bearing high tensile steel fenders over the tires.
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2-25,000 lb. axles (5" round, 5/8" wall thickness)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 85" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
