Globe 35 ton lowboy drawing 1193196 with beavertail rear ramps
Globe Trailers 35LB1193196.pdf
Globe Trailers 35LB1221244.pdf
Globe Trailers 35LB1235154.pdf
Globe 35 ton lowboy drawing 1228339 as-built unit

Globe Trailers

35-40 Ton Lowboys

Most Popular

Capacity
40 ton
Axles
35
Deck length
29 ft
Deck height
22 in

Overview

From Globe Trailers

35-Ton Capacity · 20" Deck (Loaded) · 24' Deck Length · Beavertail + Ramps · 35-Ton Capacity · 20" Deck Height · 30' Deck Length · Paver Deck · 35-Ton Capacity · 22" Deck Height · 24' Deck Length · NGB Detach. Neck · 35-Ton Capacity · 22" Deck Height · 24' Deck Length · 54" Axle Spacing Browse trailer specifications, photos, and features by drawing number. Looking to buy? Browse 35–40 Ton Lowboy Trailers for sale in our in-stock Globe Trailers dealer inventory, or call 1-800-800-3484 for a factory-direct quote. A 35-ton model is rated for 70,000 pounds of payload, and a 40-ton model for 80,000 pounds. These are US short tons. Each rating applies to the specified build and load footprint. Choices include standard, paver, beavertail, and agricultural deck configurations, with deck length and width selected for the equipment. Decking options include oak, Apitong, pine, and Rumber composite, with full-width or open-center layouts where compatible. Popular builds include a 24-foot deck and a 30-foot paver deck. Globe manufactures its 35-40-ton lowboys in Bradenton, Florida, USA. Yes. Hydraulic detachable-gooseneck, or RGN, configurations are available in the 35-40-ton range. The neck detaches and the front of the deck lowers to the ground for front loading. Browse Globe dealer inventory for 35-40-ton lowboys, or request a factory quote online or at 1-800-800-3484 for a trailer built to your requirements. Browse Globe dealer inventory for 35- and 40-ton lowboys, or request a factory quote online or at 1-800-800-3484. The selling dealer can confirm availability of a listed unit.

Specifications

General

Standard
Paver
Paver
Beavertail
Beavertail
Agricultural
Agricultural
Most Popular
Most Popular

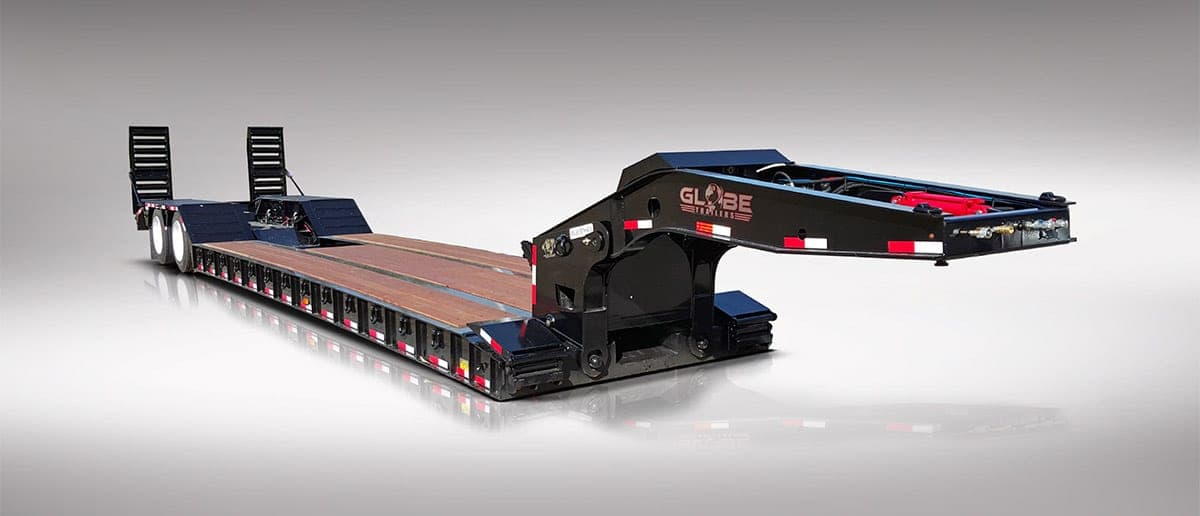

35 Ton Lowboy (35LB1193196)
Fittings
Centralized fittings (protected from equipment contact)
Manufacturing
100% US-made, locally sourced steel, Bradenton, FL

Capacity

About Globe 35-40 Ton Lowboy Trailers
Globe Trailers manufactures US-made custom heavy haul lowboy trailers. Our lowboys are built from start to finish at our Bradenton, FL manufacturing plant, sourced using locally supplied steel. Our engineers design the trailers on-site to perform and last while hauling the heaviest equipment! Our RGN trailers feature hydraulic goosenecks and features such as extendable decks, hydraulic flip axles, rear ramps, lockable toolboxes, oak or apitong wood decking, lift axles, adjustable suspension, rear transition ramps, and nitro stingers.
35–40 Ton Lowboy Trailers for sale
in our in-stock Globe Trailers dealer inventory, or call 1-800-800-3484 for a factory-direct quote.
Rated Capacity
35-40 ton
Empty Weight
20,840 lbs

Frame

Steel Type
T-1 100K PSI yield strength steel

Safety

Safety System
Air lock safety system with safety bar

Hydraulics

Flip Axle
Patented hydraulic flip axle

Running Gear

Air Bags
30K-lb air bags standard
Axle Configuration
Tandem

Decking

Cross Member Spacing
12 inches

Warranty

Structural Warranty
10-year structural warranty
Wheel Warranty
5-year STEMCO wheel warranty

Dimensions

Deck Height
22"
Deck Length Range
20' to 29'

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
