Cozad Trailers
35 Ton 2-Axle 2-Frame Wide-Neck Trailer
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 24.4 ft
Overview
The Cozad Trailers 35 Ton 2-Axle 2-Frame Wide-Neck Trailer is a 35-ton RGN trailer with 2 axles and a 24.4-foot deck. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1
- Paint
- 2 Coats Primer & Paint / White STD

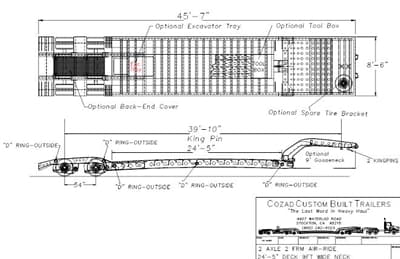

Dimensions
- Decking
- Douglar fir (2.5")
- Deck / Options
- 24’-5” Length STD; 8'-6" Wide
- Back-End / Options
- 12" Standard Beavertail; 54" Axle Spreads
- Overall Length
- 44'-7" Estimate With 8' Gooseneck
Options
- Decking
- (2.5") Apitong
- Deck / Options
- Tool Box; Excavator Tray Rear Of Deck; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminum
- Back-End / Options

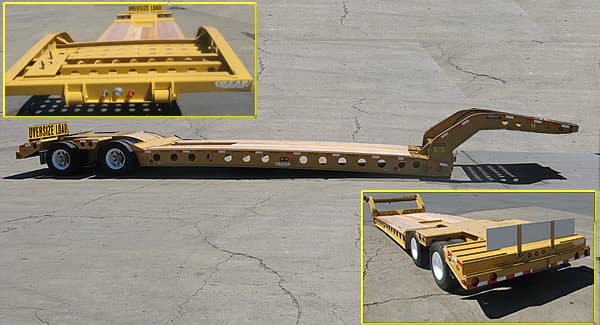

- Extended beavertail [Shown]; Scraper Fenders [Front / Rear Axle]; Cover Plate Over Back-End [Center]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
- Gooseneck(s)
- 9’ Mechanical Detachable; Full Screen; Gooseneck Fenders; Spare Tire Bracket
- Brakes
- Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- 8 Hole Aluminum Hub Pilot
- Paint
- Your Color
Gooseneck
- Gooseneck(s)
- 8' Mechanical Detachable
Running Gear
- Axles
- 25,000 lb Oil Bath
- Suspensions
- Air Ride or Walking Beam
- Brakes
- S Cam drum brakes
- Tires
- 235/75R x 17.5 Continental
- Wheels
- Steel Disc, 8 Hole Hub Pilot
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Estimated Weight
- 13,500 +/- 3%
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
