Cozad Trailers

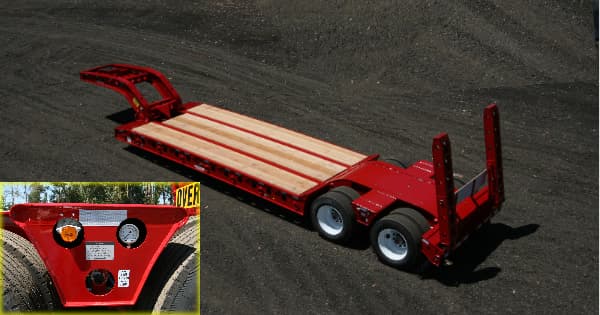

35 Ton 8 Tire California Fire Special Trailer
- Capacity
- 35 ton
- Deck height
- 21 in
Overview
The Cozad Trailers 35 Ton 8 Tire California Fire Special Trailer is a 35-ton RGN trailer with a 21-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1
- Paint
- 2 Coats Primer & Paint / White STD
Dimensions
- Decking
- Douglas fir (3")
- Deck / Options
- 18” Length STD [Cal. Fire]; 8’-6” Wide

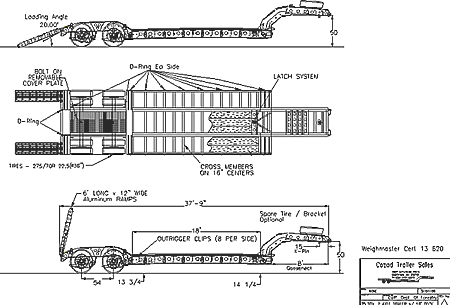

- Overall Length
- 37'-9” With 18’ Deck / 8’ Gooseneck
- Deck Height
- 27 " Empty / 21” Loaded [Estimate Only]
- Back-End / Options
- 12” Standard Beavertail; 54” Axle Spreads
Options
- Decking
- (3") Apitong
- Deck / Options
- Tool Box; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminum
- Gooseneck(s)
- 9’ Mechanical Detachable; Spare Tire Bracket
- Tires
- Auto Air Inflation System
- Wheels
- Aluminum / 10 Hole Stud Pilot; Aluminum / 10 Hole Hub Pilot W/Air Disc Brakes
- Paint
- Your color
- Back-End / Options
- Cover Plate Over Back-End [Center]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Gooseneck
- Gooseneck(s)
- 8’ Mechanical Detachable
Running Gear
- Suspension
- Air Ride
- Brakes
- 16-1/2 x 7” Drum Brake
- Tires
- 275/70R22.5.5 Continental
- Wheels
- Steel Disc, 10 Hole Stud Pilot
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Weight (Estimated)
- 13,500 +/-3%
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
