Kaufman Trailers

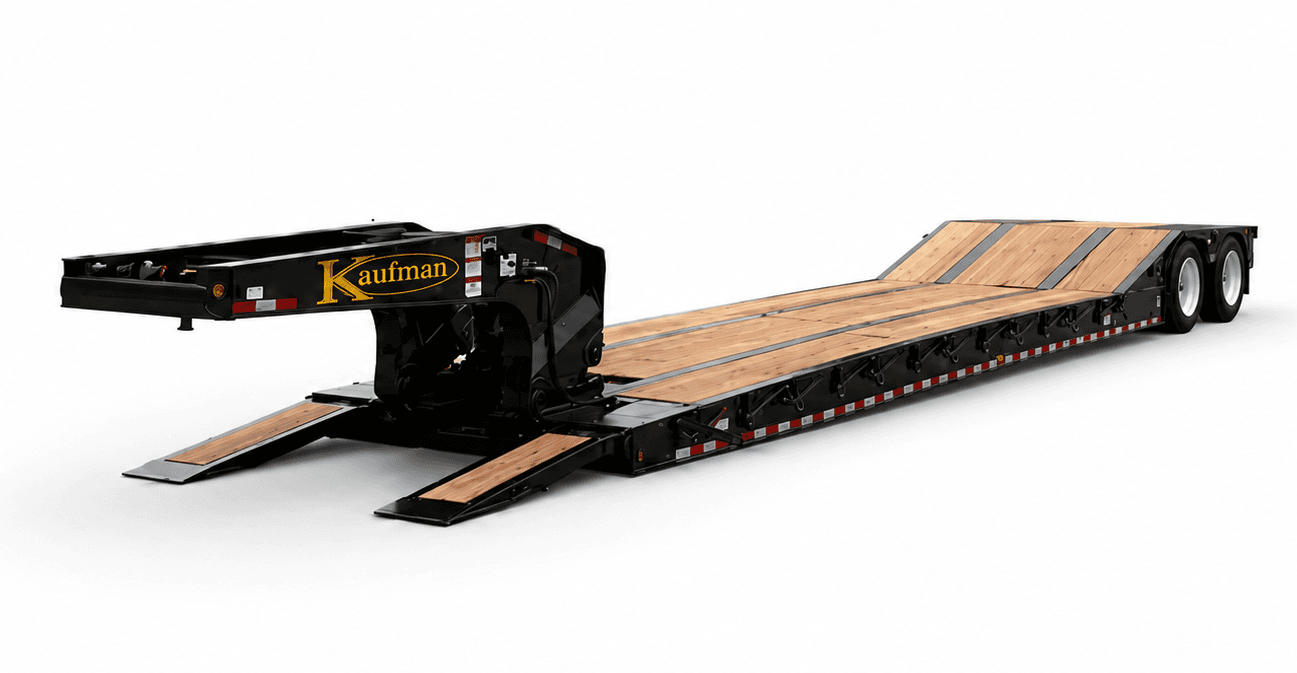

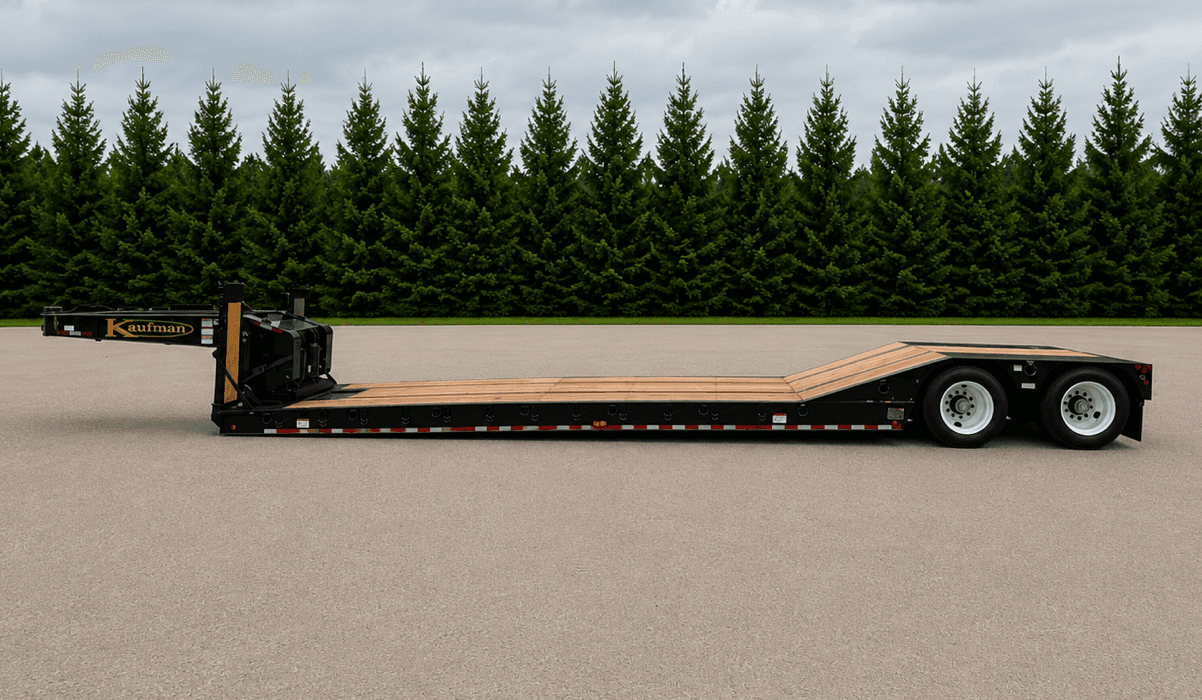

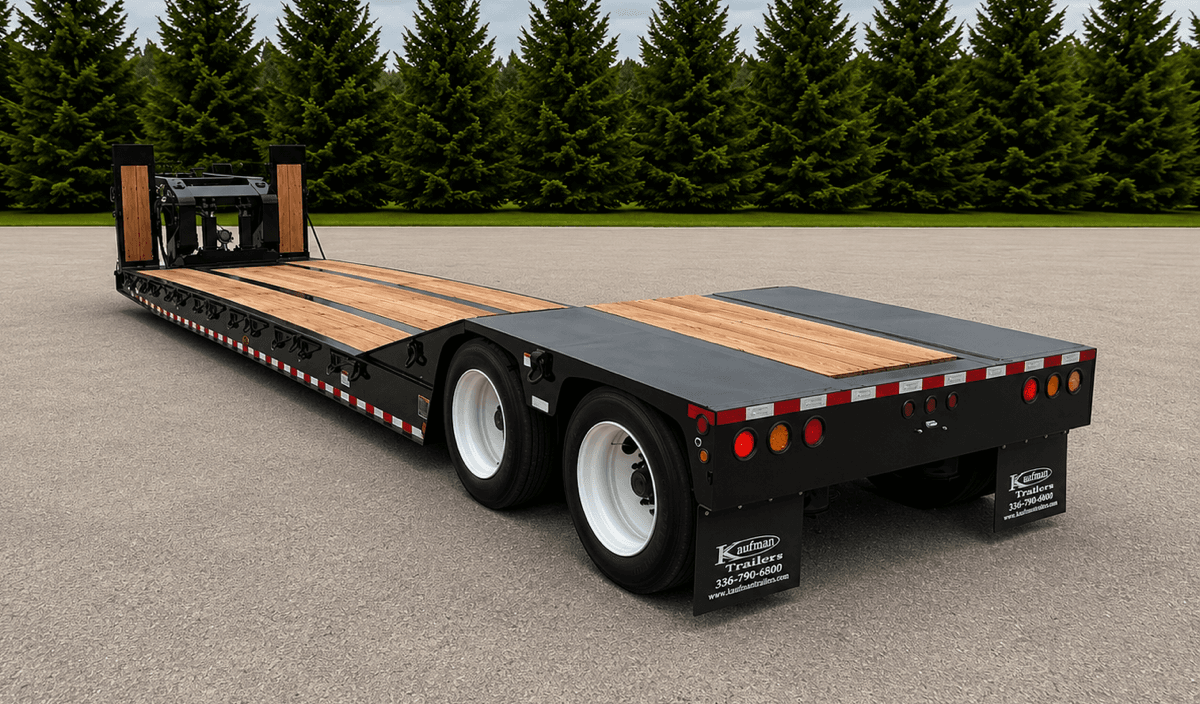

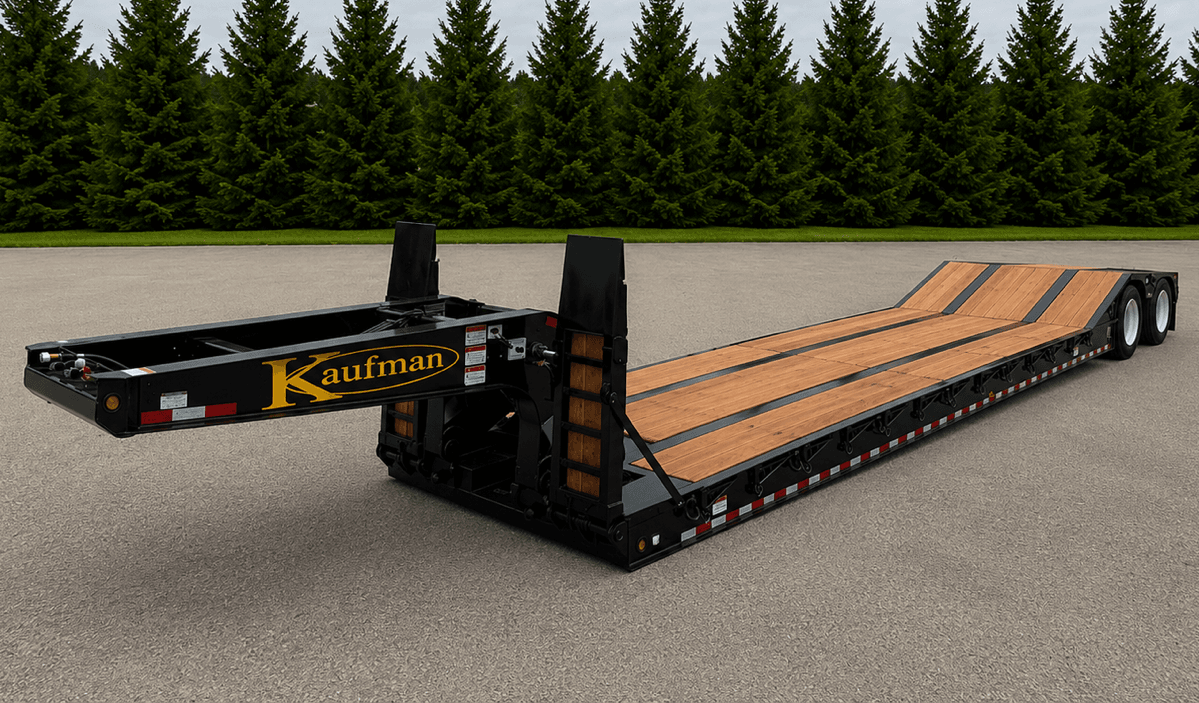

35 Ton Air Ride Paver Special
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 24 ft
- Deck height
- 22 in
- GVWR
- 88,000 lb
Overview
From Kaufman Trailers
The 35 Ton Air Ride Paver Special is built for serious paving and heavy equipment hauling, combining low loading angles with the durability needed for daily jobsite work. Designed with a 24’ well and a low 22” loaded deck height, this trailer makes loading pavers, rollers, and other low-clearance equipment easier and safer. The air ride suspension delivers a smoother haul and helps protect both the trailer and your load, while the four cambered main beams—constructed from 100 KSI (T1) and 80 KSI high tensile steel—provide the strength to handle demanding applications. With a full-width 102” deck expandable to 126” using outriggers, heavy-duty load-bearing fenders, and 45” wood-filled sliding ramps, this model is engineered for versatility on the job. A hydraulic removable gooseneck, all-wheel air brakes with ABS, and sealed wiring with lifetime LED lighting round out a trailer that’s purpose-built for reliability, performance, and ease of use in the field.
Specifications
Capacity
- G.V.W.R.
- 88,000 lbs. (Capacity 70,000 lbs. rated in 12 ft. span or greater)

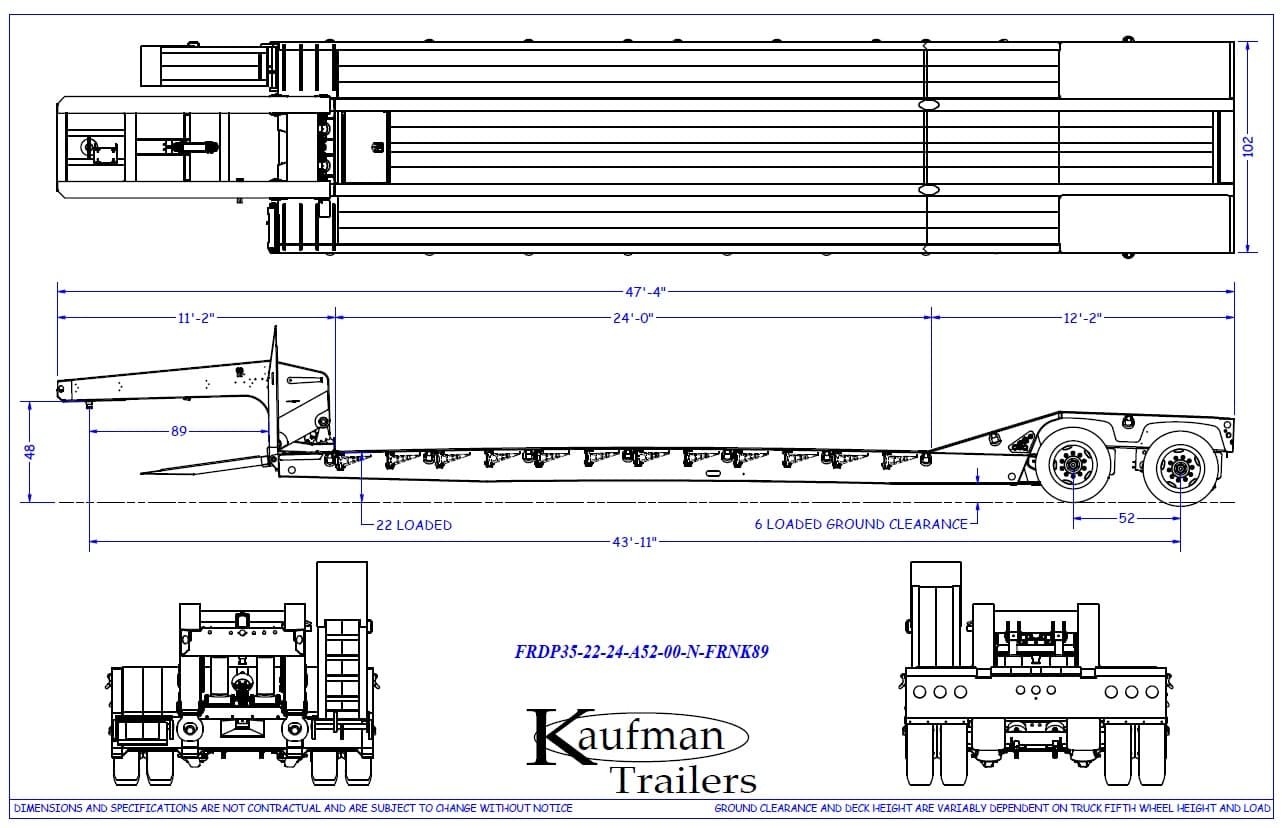

Dimensions
- Deck Length
- 24' well standard
- Deck Height
- 22" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Lower Deck
- 24' well length
- Available Lengths
- 24, 26, 28 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams with low profile tapered front, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Height Fabricated
- Floors
- 2" oak flooring (Center Decking Included)
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Ramps
- 45” Wood Filled Sliding
- Tie Downs
- Forged D-rings
General
- Fenders
- Full Length Heavy Duty Load Bearing
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2-25,000 lb. axles (5" round, 5/8" wall thickness)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
