Kaufman Trailers

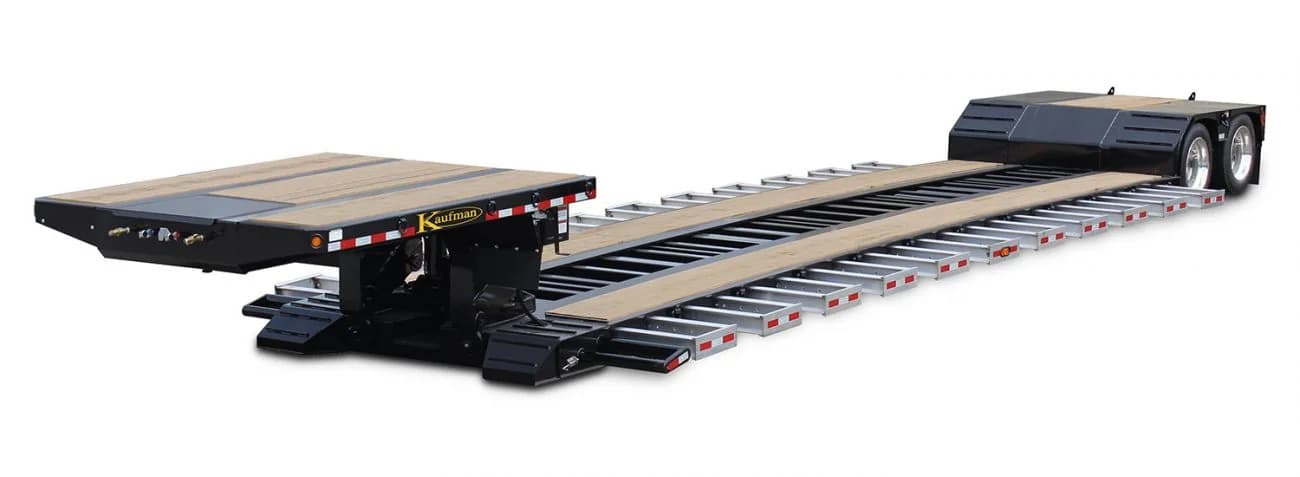

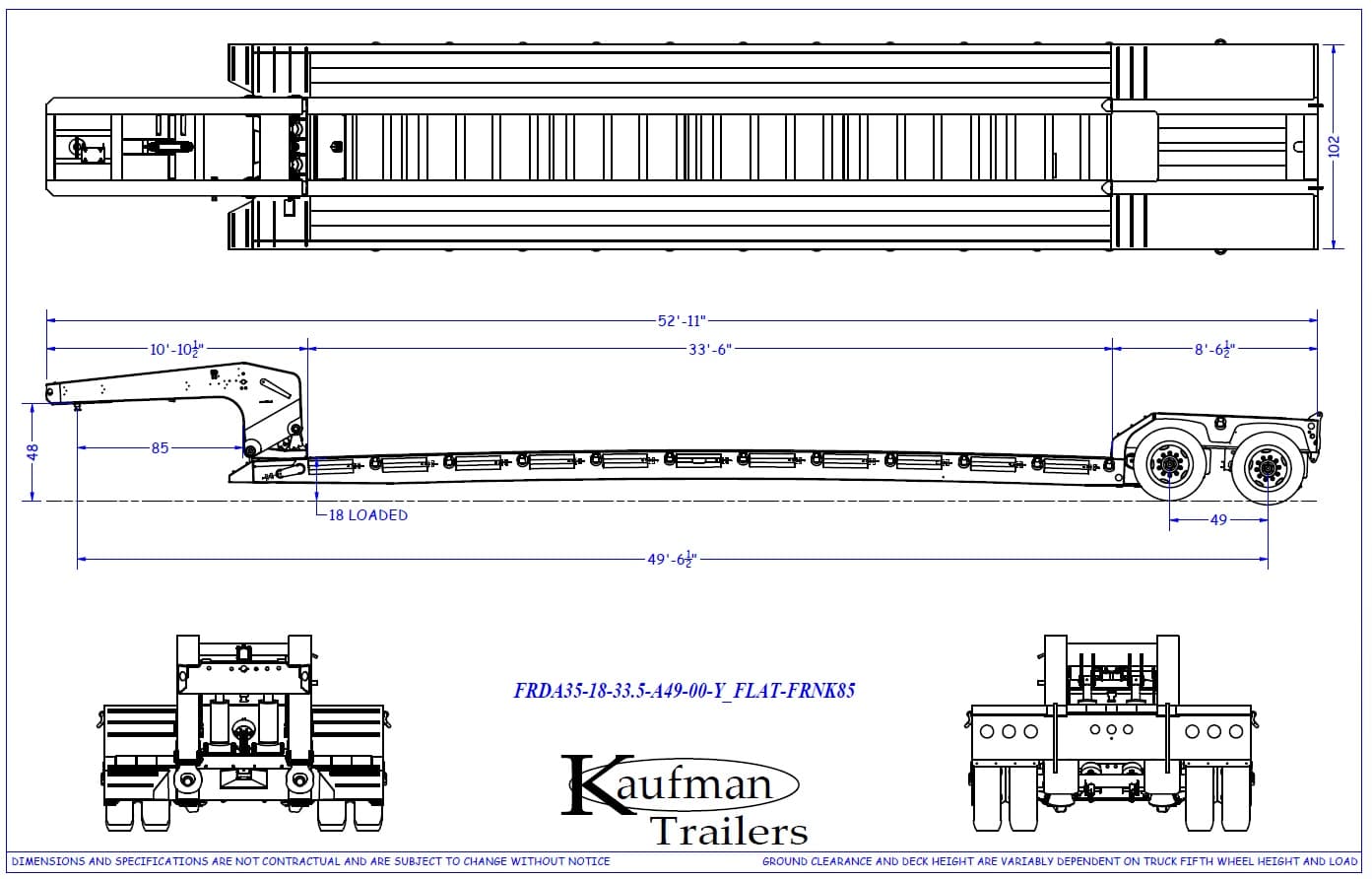

35 Ton Detachable Gooseneck Ag Trailer - 33'6" Well and Deck on Neck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 33.5 ft
- Deck height
- 18 in
- GVWR
- 93,000 lb
Overview
From Kaufman Trailers
The 35 Ton Detachable Gooseneck Ag Trailer with a 33'6" well and deck-on-neck is built for heavy-duty hauling with strength and versatility in mind. Rated at 93,000 lbs. GVWR, it features four high-tensile steel main beams, a low 18" loaded deck height, and a 102" wide deck expandable to 156" with outriggers—ideal for oversized equipment. Equipped with tandem 25,000 lb. axles, air ride suspension, 16.5" air brakes with ABS, and 22.5" tires, this trailer delivers a smooth, controlled ride. The hydraulic removable gooseneck includes adjustable load blocks and wet line setup, while features like oak flooring, LED lighting, toolbox, and heavy-duty tie-downs make it ready for real work.
Specifications
Capacity
- G.V.W.R.
- 93,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Dimensions
- Deck Length
- 33'6" well standard. Additional Optional Lengths
- Deck Height
- 18" (fully loaded)
- Deck Width
- 102" (Expandable to 156" with slide-out aluminum outriggers)
- Lower Deck
- 33'6" well length
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Depth Fabricated
- Floors
- 2" oak flooring
- Toolbox
- Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
- Tie Downs
- Forged D-rings
General
- Fenders
- Load bearing high tensile steel fenders over the tires.
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included.
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 85" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
