Kaufman Trailers

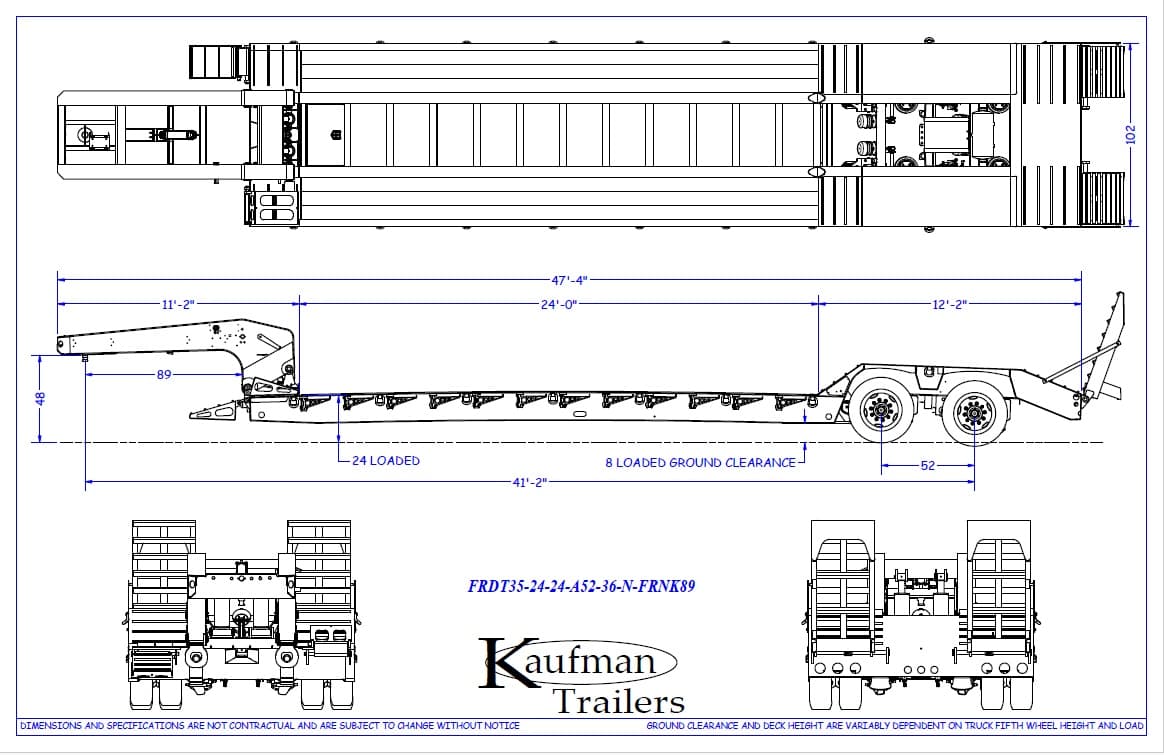

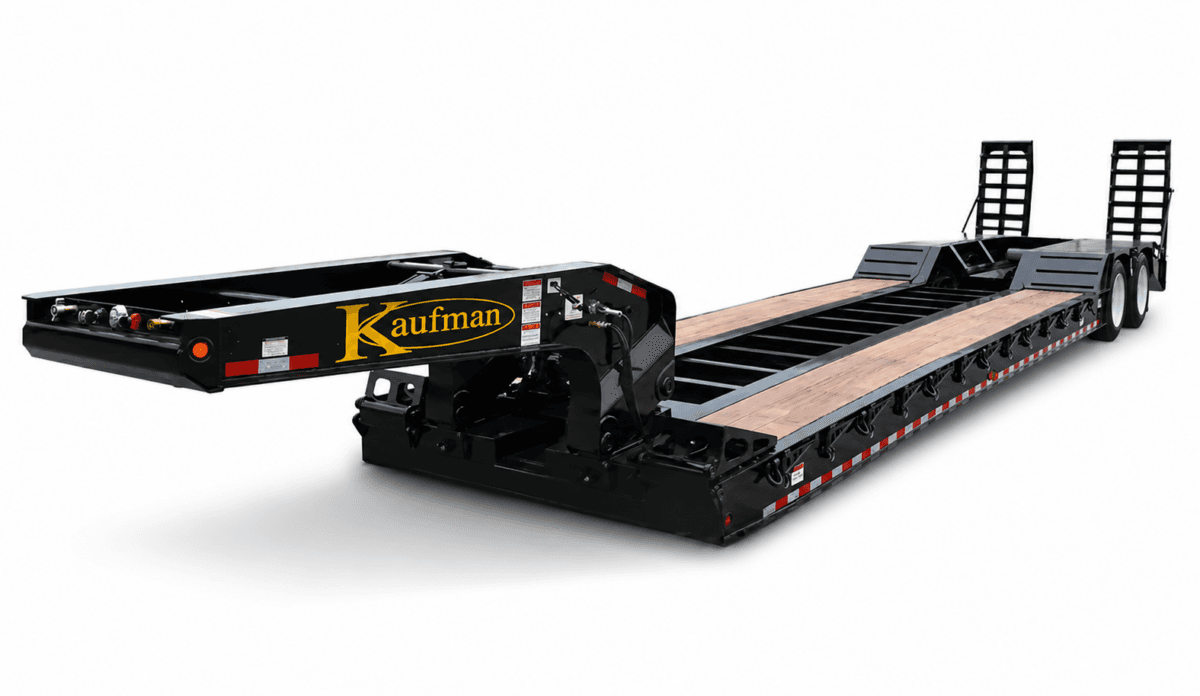

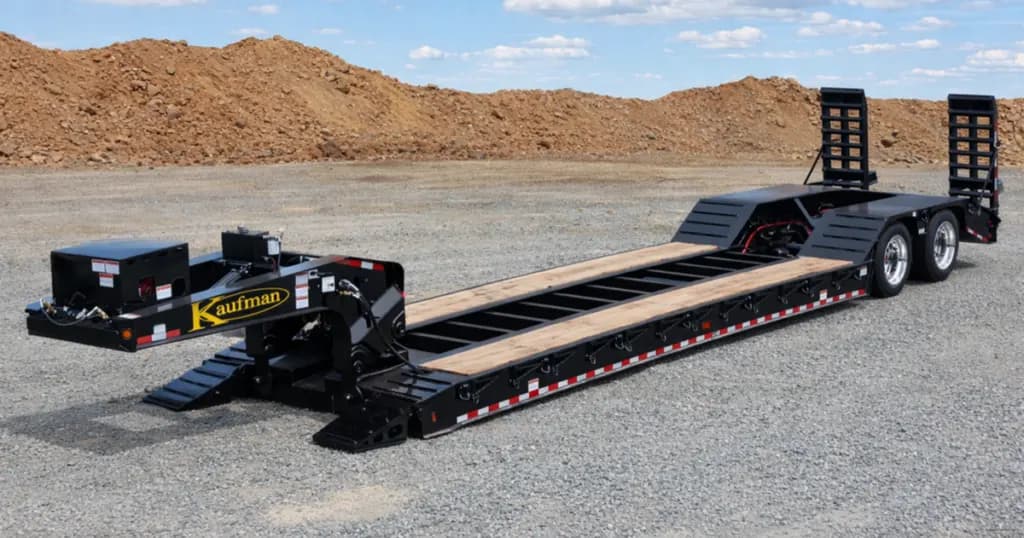

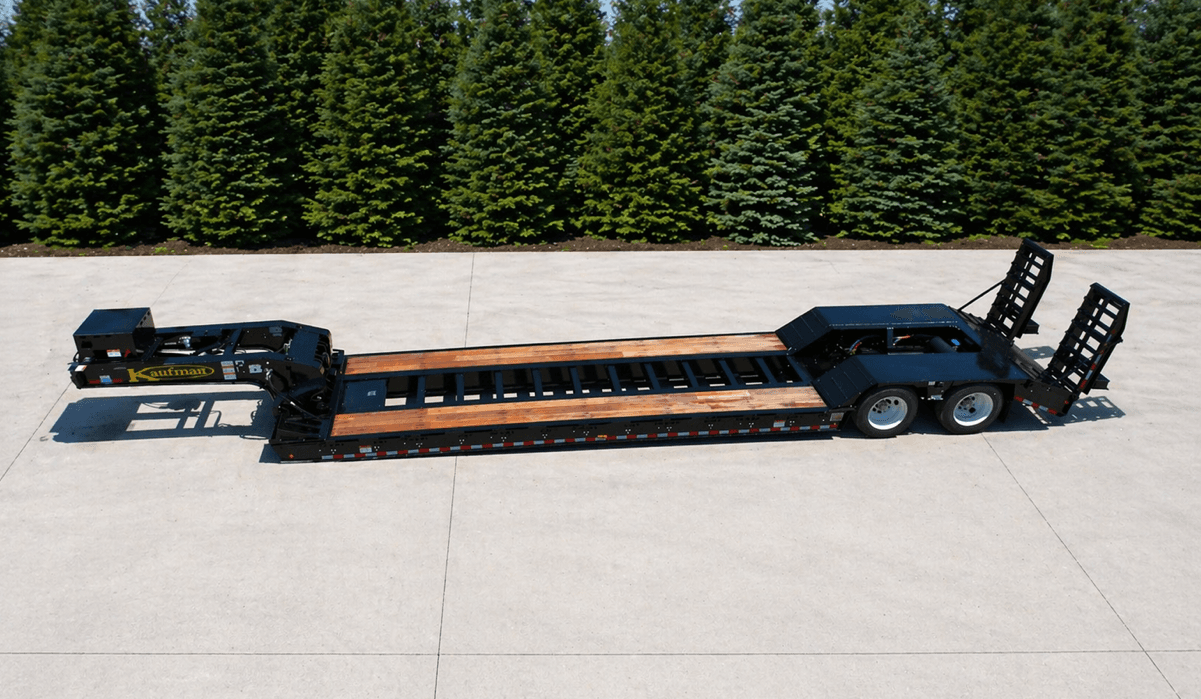

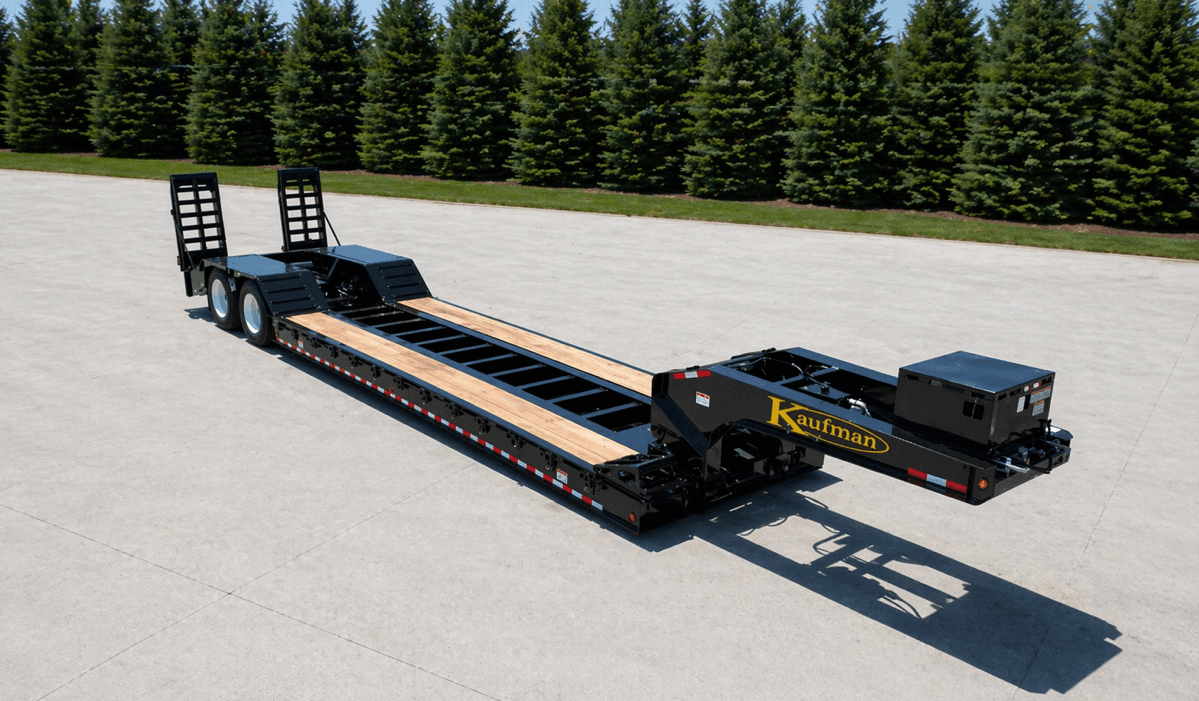

35 Ton Detachable Gooseneck Air Ride Trailer - Dovetail Standard
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 24 ft
- Deck height
- 24 in
- GVWR
- 87,000 lb
Overview
From Kaufman Trailers
The 35 Ton Detachable Gooseneck Air Ride Trailer – Dovetail Standard delivers heavy-duty capability with a smoother ride for your equipment. Rated at 87,000 lbs. G.V.W.R. with a 70,000 lb. capacity in a 12' span or greater, this model features a standard 24' well with lengths available from 24' to 28'. Built with four cambered main beams fabricated from 100 KSI (T1) and 80 KSI high tensile steel, it offers the strength needed for demanding loads. The 36” steel dovetail with traction cleats allows for efficient loading, while the air ride suspension provides enhanced stability and reduced load shock during transport. Additional features include 2" oak flooring, two 25,000 lb. axles, all-wheel 16.5" x 7" air brakes with automatic slack adjusters and 4S/2M ABS, and a hydraulic removable non-ground bearing gooseneck set up for wet line operation with 89"–107" swing clearances. Finished with Sherwin Williams premium acrylic urethane over a two-part epoxy primer and equipped with Sealco sealed wiring, lifetime LED lights, forged D-rings, and a lockable toolbox, this trailer offers durability, performance, and professional-grade reliability.
Specifications
Capacity
- G.V.W.R.
- 87,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Dimensions
- Deck Length
- 24' well standard. Additional Optional Lengths
- Deck Height
- 24" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Dovetail
- 36” Steel with Traction Cleats
- Lower Deck
- 24' well length
- Available Lengths
- 24, 26, 28 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Height Fabricated
- Floors
- 2" oak flooring
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
- Tie Downs
- Forged D-rings
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2-25,000 lb. axles (5" round, 5/8" wall thickness)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
