Kaufman Trailers

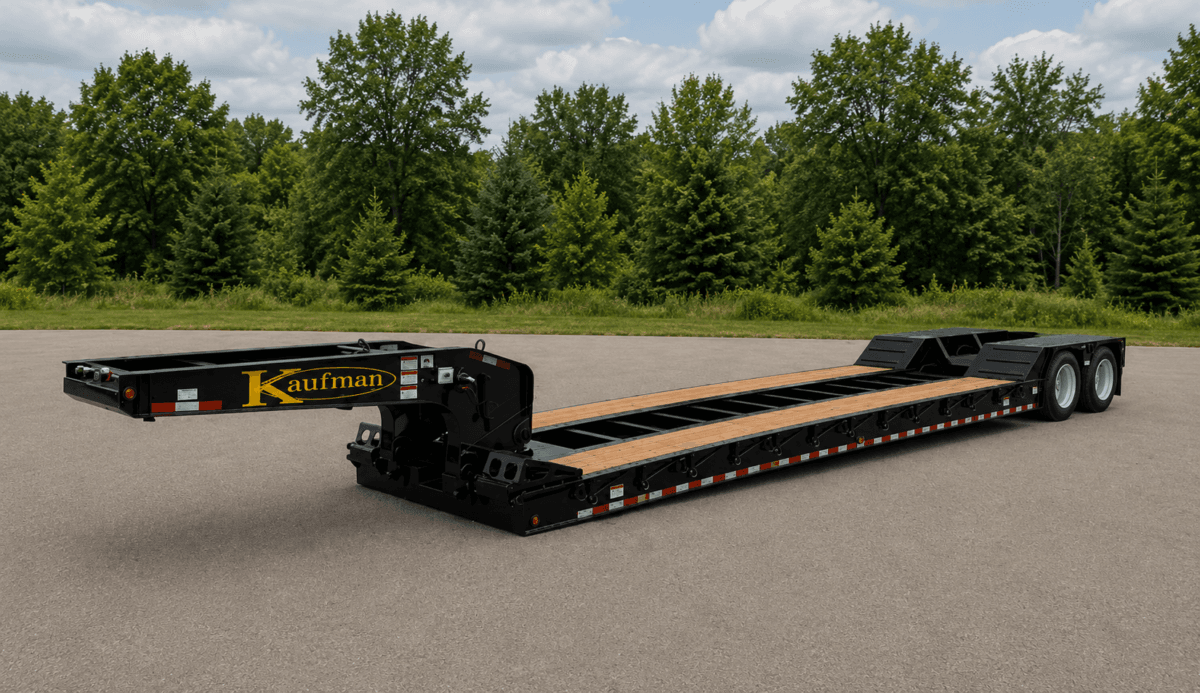

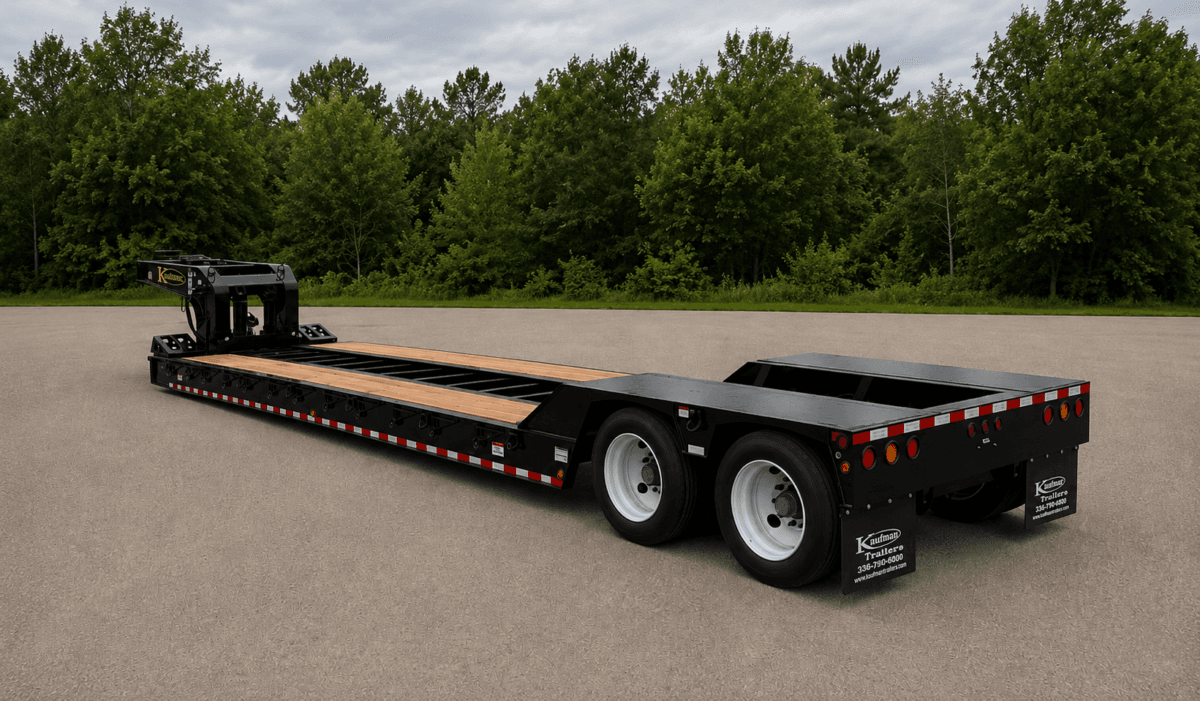

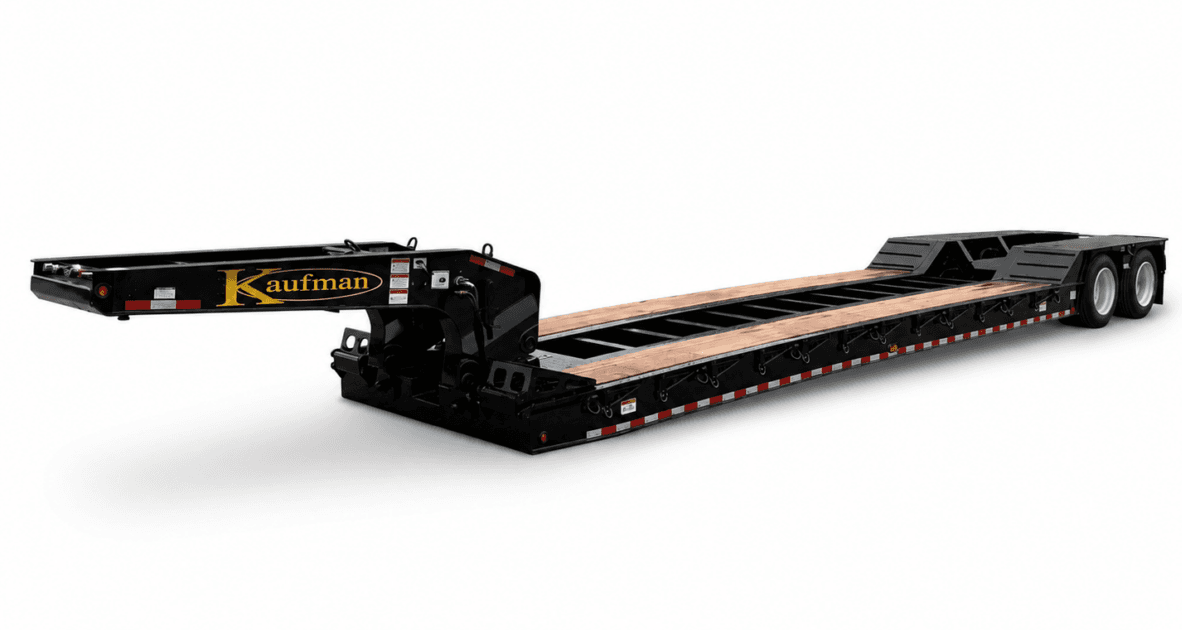

35 Ton Detachable Gooseneck Air Ride Trailer - Standard
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 24 ft
- Deck height
- 24 in
- GVWR
- 86,000 lb
Overview
From Kaufman Trailers
The 35 Ton Detachable Gooseneck Air Ride Trailer is designed for serious heavy-equipment hauling, combining high capacity with durability and operator convenience. Rated at 86,000 lbs. GVWR with a 70,000 lb. capacity in a 12-ft. span, this trailer features four cambered high-tensile steel main beams, a 24 ft. well with 2″ oak flooring, and air ride suspension with 25,000 lb. axles for a smooth, stable haul. The hydraulic removable non-ground bearing gooseneck allows for easy loading while providing adjustable load blocks and swing clearances for versatile equipment transport. Premium components such as all-wheel air brakes with ABS, forged D-ring tie downs, sealed US-made wiring harness with lifetime LED lighting, and Sherwin Williams urethane finish over epoxy primer make this 35-ton detachable built for long-term reliability in demanding applications.
Specifications
Capacity
- G.V.W.R.
- 86,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Construction
- Tie Downs
- Forged D-rings
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Height Fabricated
- Floors
- 2" oak flooring
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Dimensions
- Deck Length
- 24' well standard. Additional Optional Lengths
- Deck Height
- 24 in.
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Lower Deck
- 24' well length
- Available Lengths
- 24, 26, 28, 30 ft.
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2-25,000 lb. axles (5" round, 5/8" wall thickness)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
