Kaufman Trailers

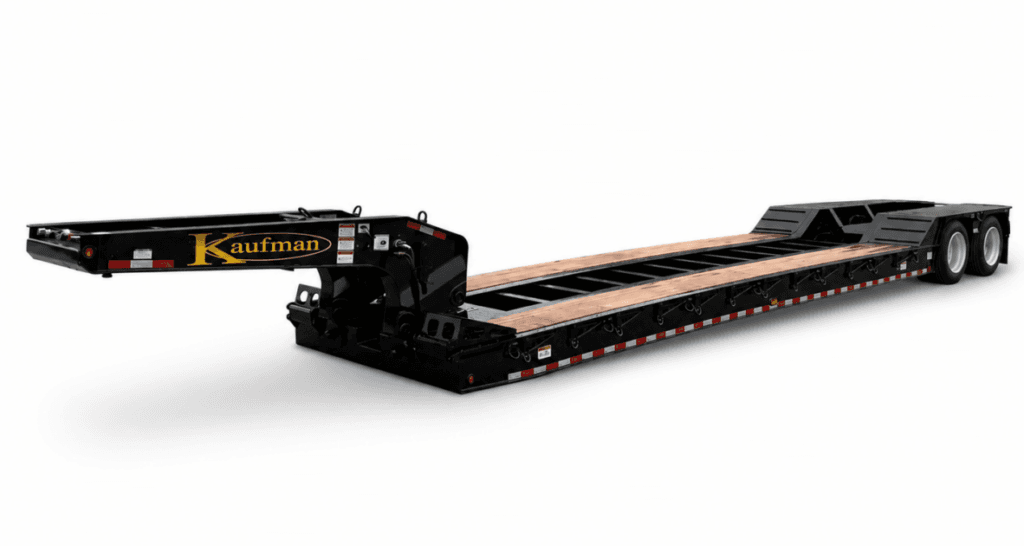

35 Ton Detachable Gooseneck Spring Ride Trailer - Standard

Capacity
35 ton
Axles
2
Deck length
24 ft
Deck height
24 in
GVWR
86,000 lb

Overview

From Kaufman Trailers

The 35 Ton Detachable Gooseneck Spring Ride Trailer is built for serious heavy equipment hauling with the strength, durability, and reliability professionals demand. With an 86,000 lb. GVWR and a 70,000 lb. capacity in a 12 ft. span or greater, this trailer is engineered using four cambered main beams fabricated from high tensile 100 KSI (T1) and 80 KSI steel for superior structural integrity. The 24’ well and 102” wide deck (expandable to 126” with outriggers) provide ample room for oversized loads, while the hydraulic removable non-ground bearing gooseneck with adjustable load blocks and wet line setup ensures smooth loading and versatile operation. Equipped with Hutchens heavy duty spring suspension, 2 × 25,000 lb. axles, all-wheel air brakes with ABS, and durable 2” oak flooring, this trailer delivers dependable performance job after job. Standard features like a Sealco sealed wiring harness with lifetime LED lights, amber strobe kit, full-height fabricated side rails, and a premium Sherwin Williams acrylic urethane finish over epoxy primer make it a rugged, long-lasting solution for contractors and equipment haulers.

Specifications

Capacity

G.V.W.R.
86,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)

Dimensions

Deck Length
24' well standard. Additional Optional Lengths
Deck Height
24" (fully loaded)
Deck Width
102" (Expandable to 126" with outriggers)
Lower Deck
24' well length
Available Lengths
24, 26, 28, 30 ft.

Electrical

Electrical
Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard

Construction

Frame
Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Side Rail
Full Height Fabricated
Floors
2" oak flooring
Ramps
Fixed Front Ramps (See Additional Options)
Toolbox
20" x 42" Lockable Lid Toolbox
Tie Downs
Forged D-rings

Gooseneck

Tongue
Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
Coupler
SAE 2" Kingpin (16" Kingpin Setting)

Running Gear

Brakes
All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tires
255/70 R22.5 LRH
Wheels
10 hole steel disc / hub piloted (Aluminum Wheel Options)
Axles
2-25,000 lb. axles (5" round, 5/8" wall thickness)
Suspension
Hutchens H-9700 Heavy Duty 3-Leaf Spring Suspension

Finish

Finish
Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer

About removable gooseneck trailers

A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
