Kaufman Trailers

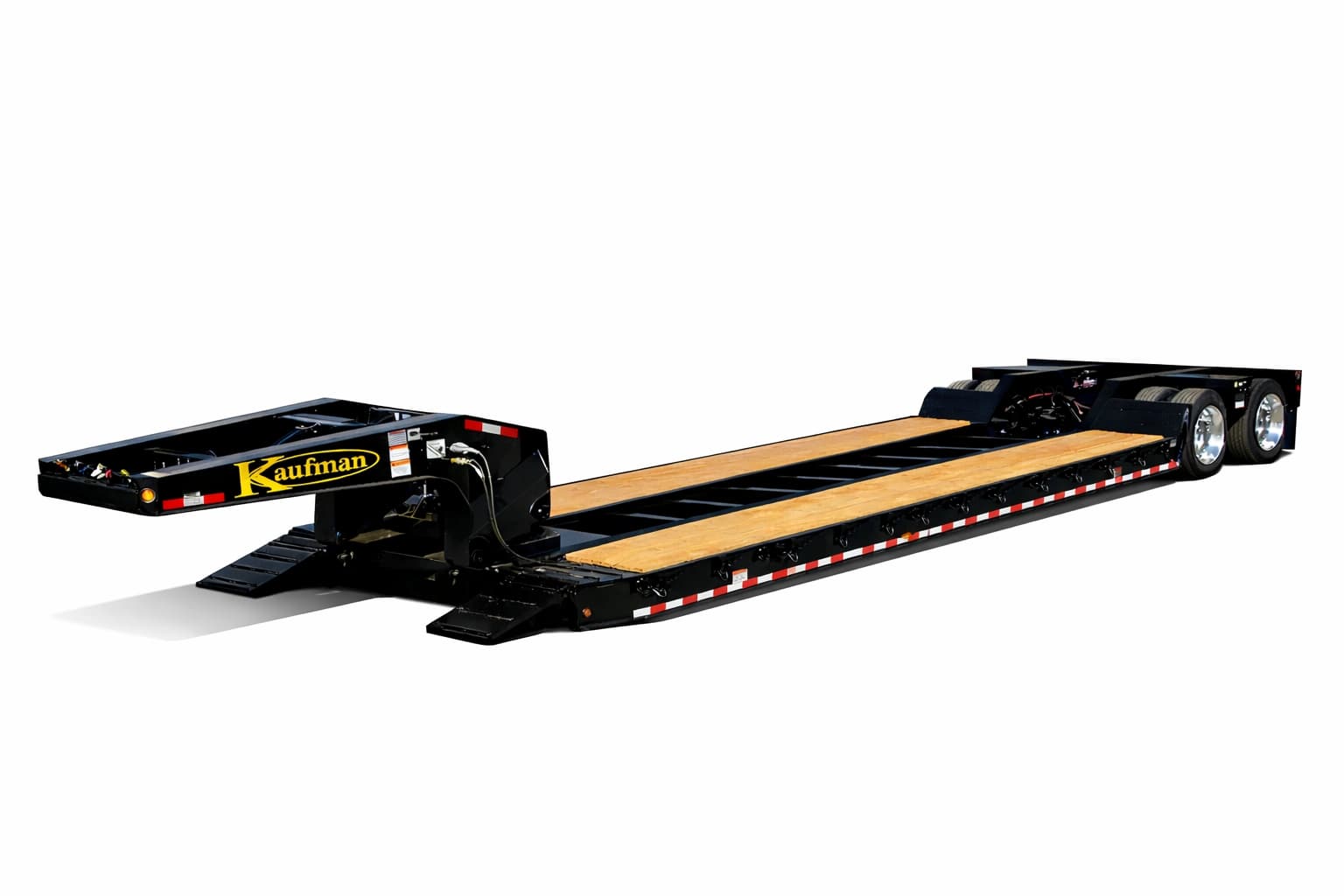

35 Ton Detachable Gooseneck Trailer (18") - Deluxe
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 26 ft
- Deck height
- 18 in
- GVWR
- 89,000 lb
Overview
From Kaufman Trailers
The 35 Ton Detachable Gooseneck Trailer (18") – Deluxe is designed for contractors and equipment haulers who need strength, low deck height, and dependable performance. With an 89,000 lb. G.V.W.R. and a 70,000 lb. capacity rating in a 12-foot span or greater, this trailer offers serious hauling capability in a versatile 26' standard well (available in lengths from 26' to 30'). The low 18" loaded deck height improves loading angles and stability, while four cambered main beams built from high-strength 100 KSI (T1) and 80 KSI steel provide long-term structural durability. A hydraulic, removable, non-ground bearing gooseneck with adjustable load blocks and swing clearances from 89" to 107" allows for efficient hook-up and loading, and the air ride suspension enhances ride quality and load protection. Equipped with dual 25,000 lb. axles, 16.5" x 7" air brakes with automatic slack adjusters and 4S/2M ABS, forged D-ring tie downs, sealed wiring harness with lifetime LED lights, and a Sherwin Williams premium urethane finish over epoxy primer, this Deluxe model delivers durability, performance, and professional-grade reliability.
Specifications
Capacity
- G.V.W.R.
- 89,000 lbs. (Capacity 70,000 lbs. in 12 ft. span or greater)
Dimensions
- Deck Length
- 26' well standard. Additional Optional Lengths
- Deck Height
- 18" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Lower Deck
- 26' well length
- Available Lengths
- 26, 28, 30 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Height Fabricated
- Floors
- 2" oak flooring
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
- Tie Downs
- Forged D-rings
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2-25,000 lb. axles (5" round, 5/8" wall thickness)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
