Kaufman Trailers
35 Ton Fixed Neck Spring Ride Trailer - Standard
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 27 ft
- Deck height
- 38 in
- GVWR
- 85,000 lb
Overview
From Kaufman Trailers

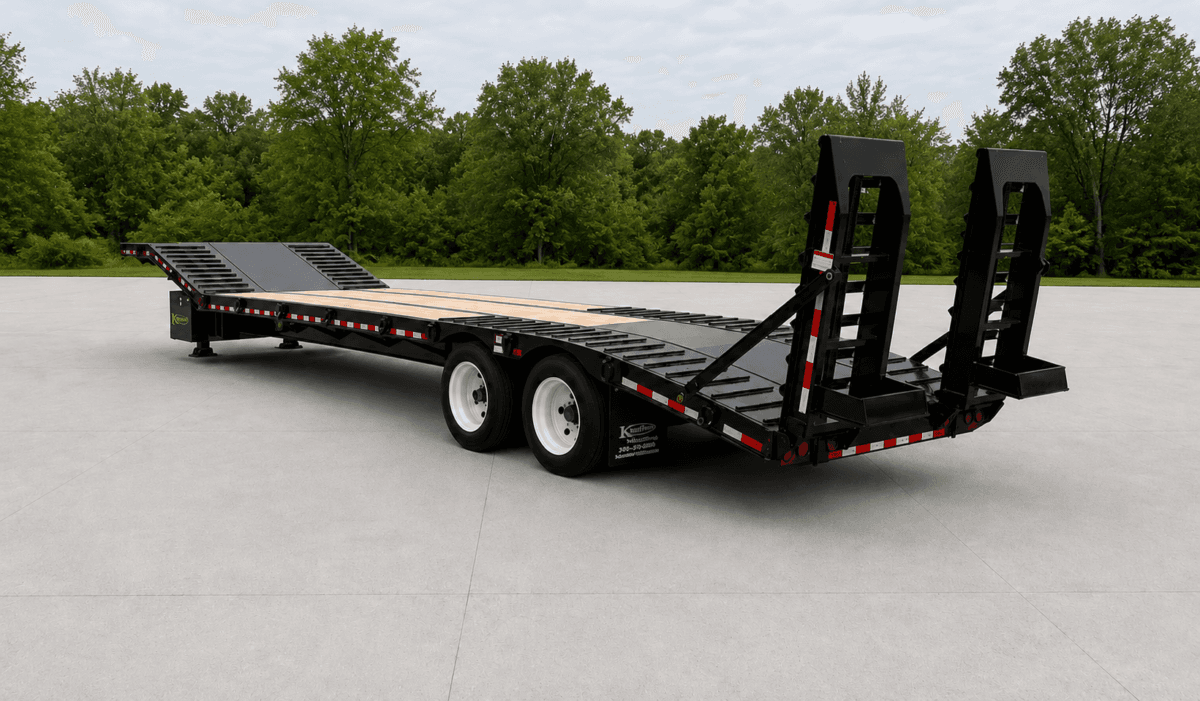

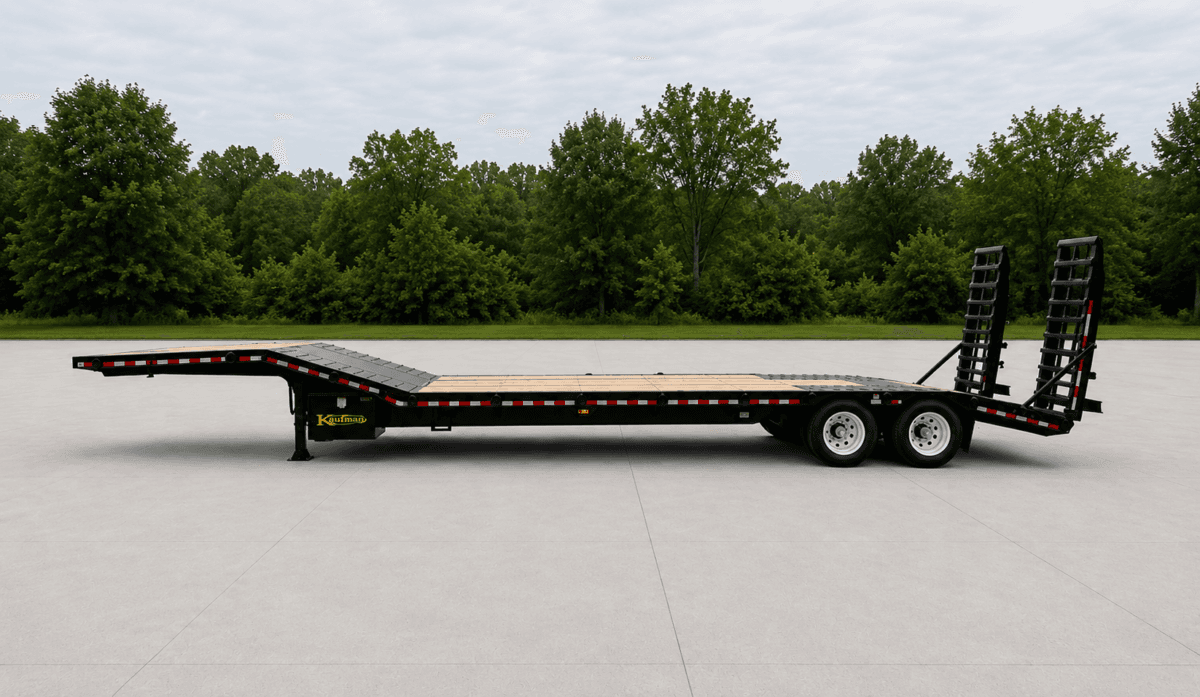

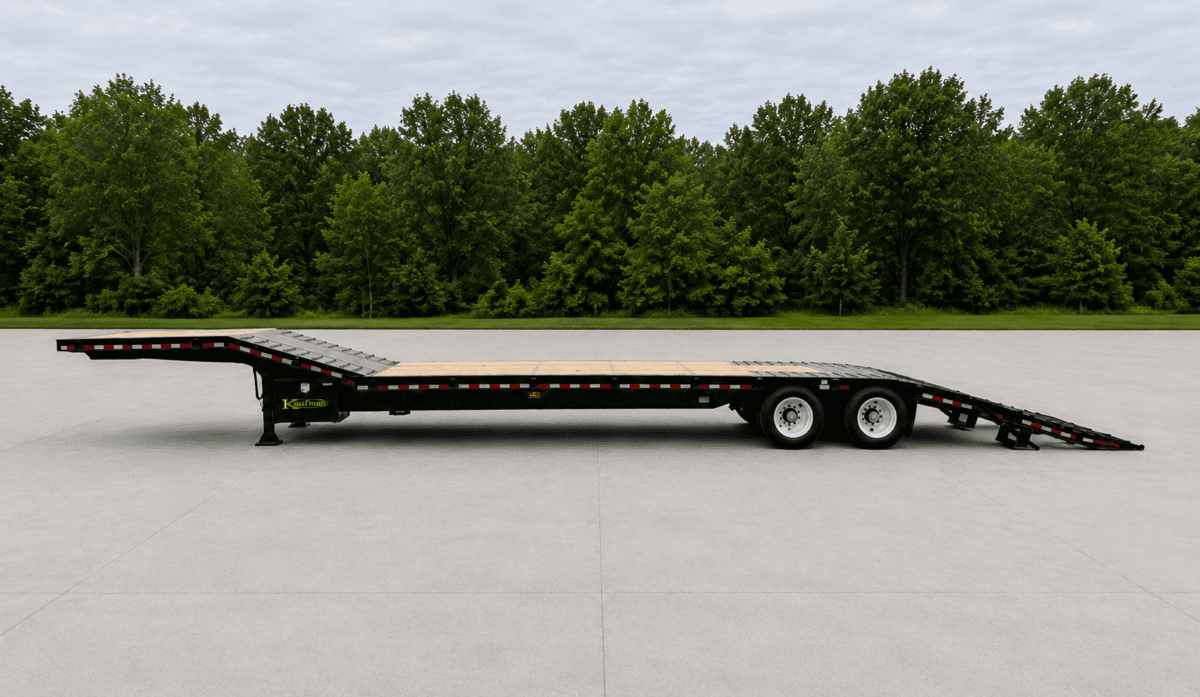

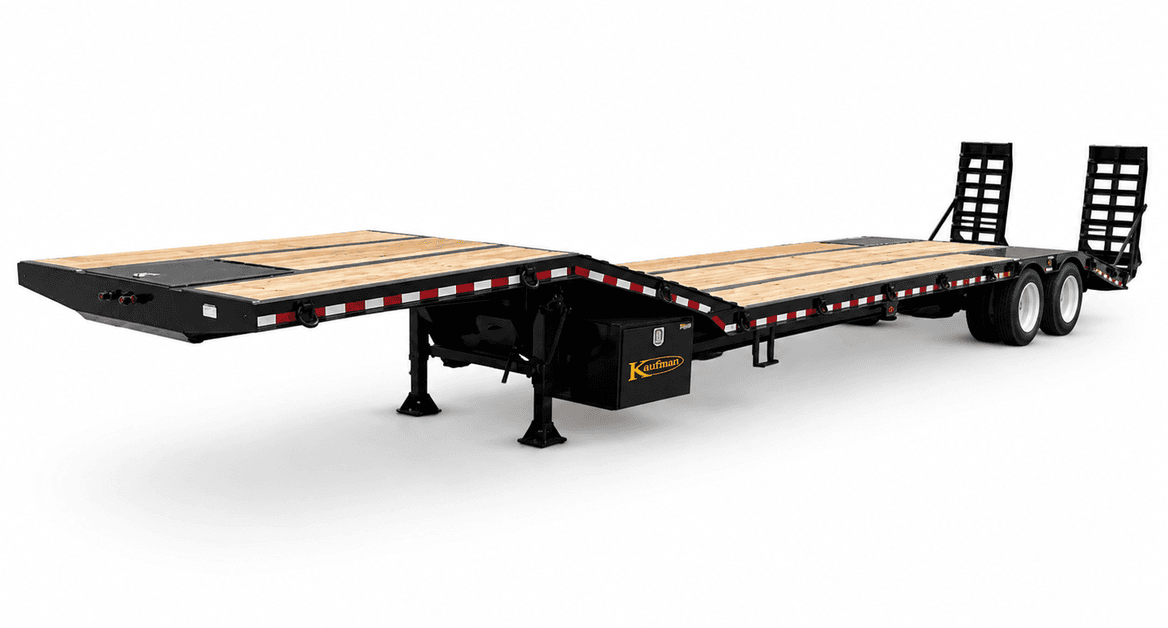

The 35 Ton Fixed Neck Gooseneck Spring Ride Trailer – Standard is built for reliable heavy equipment hauling with a focus on strength and simplicity. Rated at 85,000 lb. G.V.W.R. with a 70,000 lb. capacity in a 12’ span or greater, it features 22” tall cambered main beams made from 100 KSI (T1) and 80 KSI high tensile steel for long-term durability. The 27’ flat deck includes a 38” loaded deck height, 2” oak flooring, and a full 102” width, expandable to 126” with optional outriggers. A smooth radius dovetail with traction cleats, full-length load-bearing fenders, and spring assist ramps make loading easy and secure. Dual 25,000 lb. axles, heavy-duty spring ride suspension, and all-wheel air brakes with ABS provide stable towing and dependable stopping power. Finished with a premium epoxy primer and Sherwin-Williams urethane topcoat, plus lifetime LED lighting and sealed wiring, this trailer is a durable, straightforward solution for demanding jobs.
Specifications
Capacity
- G.V.W.R.
- 85,000 lbs. (Capacity 70,000 lbs. rated in 12 ft. bed span or greater)
Dimensions
- Deck Length
- 27'-0" Flat Deck Length
- Deck Height
- 38" Deck Height (Fully Loaded)
- Deck Width
- 102" (Expandable to 126" with optional outriggers)
- Dovetail
- Premium Kaufman Smooth Radius Dovetail. Diamond Plate Steel with traction cleats included. Self Cleaning Dove-tail available.
- Upper Deck
- Flat Load Bearing Deck over the Gooseneck with 17 degree low slope steel access ramps and traction cleats.
- Lower Deck
- 27' Main Deck
- Available Lengths
- 27, 29, 31, 33 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness & lifetime LED lights
Construction
- Frame
- 22" tall, cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel. Heavy Duty 8" Outside Rails with deck supporting crossmembers at 12" O.C.
- Side Rail
- Heavy Duty 8" Side Rail reinforced at 48" O.C. with In-Frame and Triangular Gusset back to main Beam
- Floors
- 2" Oak Flooring (Center Decking Included) Apitong available upon request
- Ramps

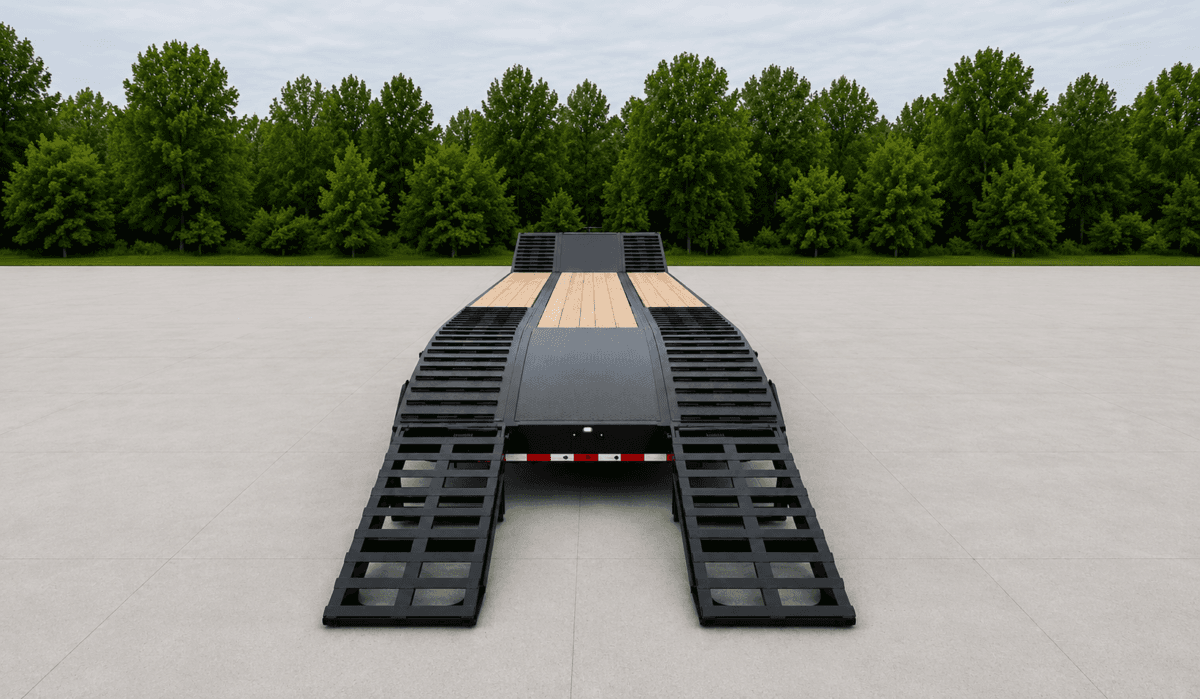

- 66" Spring assist Ramps standard, 96" Hydraulic ramps available
- Toolbox
- Toolbox lid over fifth wheel plate
- Tie Downs
- Forged D-rings
General
- Fenders
- Full Length Heavy Duty Load Bearing Fenders with Traction Cleats
- Jack
- Heavy Duty 2 speed landing gear with Sand Shoes
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 2S/1M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheels Optional)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2-25,000 lb. axles (5" round, 5/8" wall thickness)
- Suspension
- Heavy Duty 3 leaf Spring Ride Suspension, Air Ride Suspension available upon request
Gooseneck
- Tongue
- Hi-Yield Fully formed 3/8" thick fifth wheel plate sitting in reinforced fabricated main frame gooseneck beams
- Coupler
- SAE 2" Kingpin (18.25" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
