Talbert Manufacturing

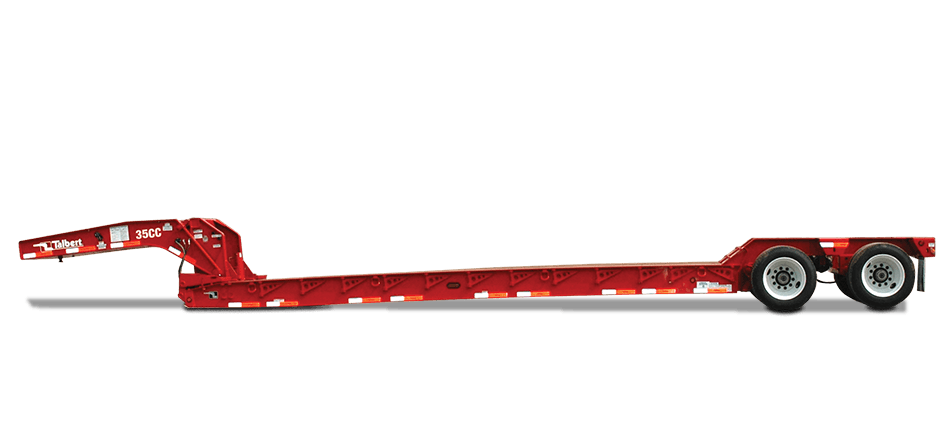

35CC
- Capacity
- 35 ton
- Axles
- 14
Specifications
Gooseneck
- Non-Ground Bearing Hydraulic Gooseneck Design
- Tires: 255/70R22.5 (H)
Dimensions
- 84 in. Swing Radius (Other Lengths Optional)
- Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
- 24 ft. 0 in. Deck Length
- Adjustable Ride Height (Front and Rear)
- 8 ft. 6 in. Wide Deck
- Boom Well in Rear Bridge in
- 22 in. Loaded Deck Height
- Spring Parking Brake on One Axle
- 6 in. Loaded Road Clearance
- Optional 3rd Axle
Hydraulics
- Hydraulic Support Cylinder (Standard)
- Anti-Lock Brake System
General
- Front Folding / Fixed Ramps (Optional)
- Bolsters and Half Bolster on Rear Bridge
- 12 in. Swinging / Removable Outriggers
- 36 in. Mainbeam / Bolster Height
Construction
- 1-1/2 in. Apitong Flooring
- 12 Volt LED Sealed Light System
- High Strength 100,000 psi Minimum Yield Steel
- 70,000 lb. Capacity in 1/2 Deck Length
Capacity
- Axles: 25,000 lb. Capacity
- Estimated Weight: 14,540 lbs. lbs
Running Gear
- RIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control
- Valspar R-Cure 800 Red or Black Paint
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
