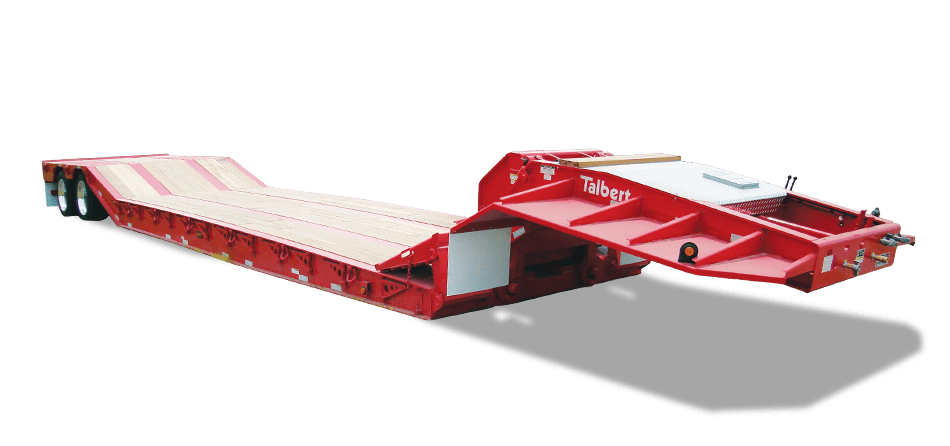

Talbert Manufacturing
35CC-RP
- Capacity
- 35 ton
Specifications
Gooseneck
- Low-Profile HRG Gooseneck Design
- 1/4 in. Tread Plate Over Tires
Dimensions
- 49 in. Loaded Fifth Wheel Height
- Apitong Between Main Beams in
- 4 Beam Roller Paver Deck Design
- Steel Disc (Hub Piloted) Wheels
- 47 ft.- 10 in. Overall Length
- 1 ft. 0 in. Horizontal Beavertail ft
- 24 ft.- 0 in. (23 ft. 6 in. Clear) Flat Deck
- 3 in. High Roller Stop in
- 22 in. Loaded Deck Height
- Lights And Wiring: Sealed Harness
- 8 ft.-6 in. Deck Width
- 4 Lash Rings Each Side Of Deck
- 6 in. Loaded Road Clearance
- Spring Brakes On 1 Axle
- Rear Bridge Ramp 5 ft. 0 in. Sloped To Deck
- Estimated Weight: 18,910 lbs.
General
- 84 in. Swing Radius
- RIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. /-3 in. Manual Control
Hydraulics
- Standard Support Cylinder
- Ride Height Control: Talbert +3/-3 Valve
Electrical
- 50 in. Wood Filled Front Loading Ramp
- 70,000 lb. Capacity In 1/2 Deck Length
Construction
- 1-1/2 in. Apitong Flooring
- Valspar R-Cure 800 Red Or Black Paint
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
