Talbert Manufacturing

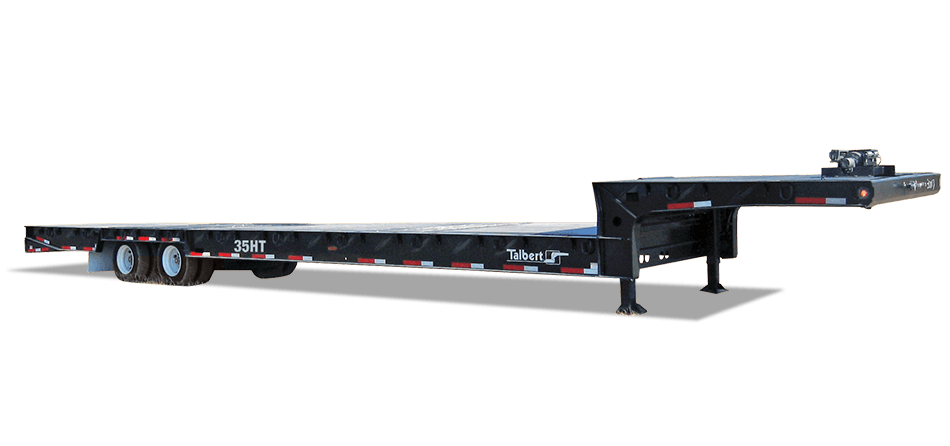

35HT
- Capacity
- 35 ton
Specifications
Capacity
- 70,000 lb. Capacity Evenly Distributed 50,000 lbs. In 16 ft. 0 in. Load Concentration At 60 mph
- 3/8 in. Steel Deck Plate Covered Wheel Wells
Dimensions
- 9 ft. 2 in. Gooseneck Length
- 25,000 lb. Axles With Oil Seals
- 49 in. 5th Wheel Height
- 1-1/2 in. Apitong Decking (Raised) On Deck And Tail in
- Vertical Deck To Gooseneck Transition With Steel Plate
- Hub Piloted Type Disc Wheels / Outboard Mount Hubs
- 102 in. Deck Width
- 12-1/4 in. x 7-1/2 in. Brakes With ABS Braking System in
- 36-1/4 in. Loaded Deck Height
- Auto Slack Adjusters
- 18-1/2 in. Loaded Ground Clearance
- Dot Rubber Mounted Sealed Beam Lights With Modular Harness
- D-Rings On 4 ft. Centers On Deck And Tail
- Estimated Weight: 18,380 lbs.
Hydraulics
- Hydraulic System Is Wet Line Operation Standard
- Rear Folding Tail Is 12 ft. Total (8 ft. Top Of Platform And 4 ft. Flip Under) (15 degree Loading Angle)
General
- 2 Speed Landing Legs
- Tail Has Lifting Capability Of 20,000 lbs. 4 ft. Back From Hinge Pin
- Wireless Remote Winch Operation
- Tires: (8) 235/75R 17.5 (H)
- Stake Pockets / Chain Slots On 24 in. Centers
- Red And White Conspicuity Striping
Gooseneck
- Perimeter Frame Gooseneck Design
- Tail Is Equipped With Automatic Locking Device And Self Cleaning Bushings
- Dual Toolboxes On Front Of Gooseneck
- Air Ride Suspension With Dump Valve
- Hydraulic Winch Located Top, Center, Front Of Gooseneck
- 49 in. Axle Spacing
- 4 D-Rings On Gooseneck
- Talbert Red Or Black Paint
Construction
- Heavy Duty I-Beam Cross Members On 12 in. Centers
- Mud Flaps
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
