Kaufman Trailers

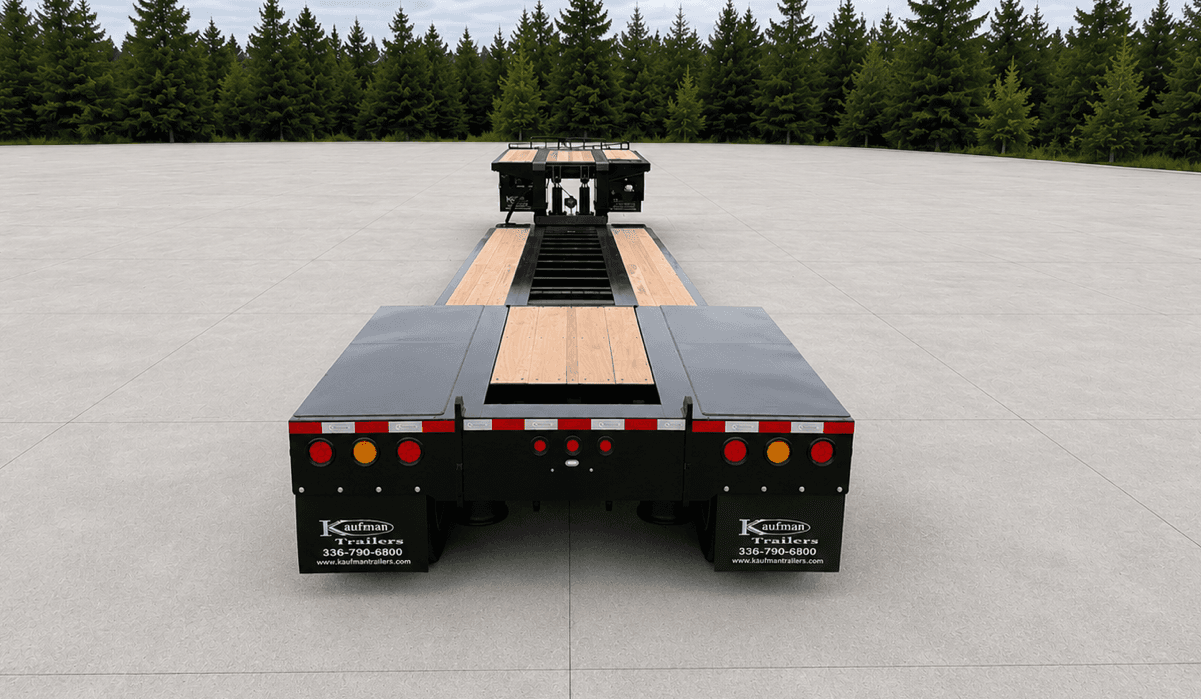

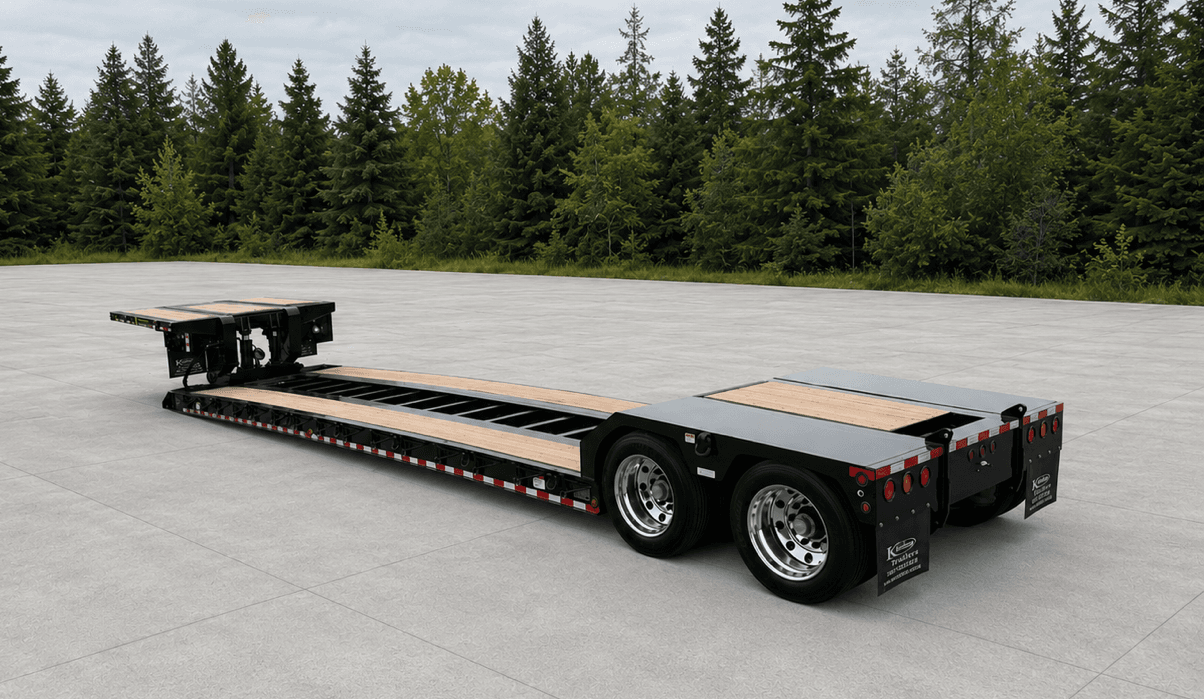

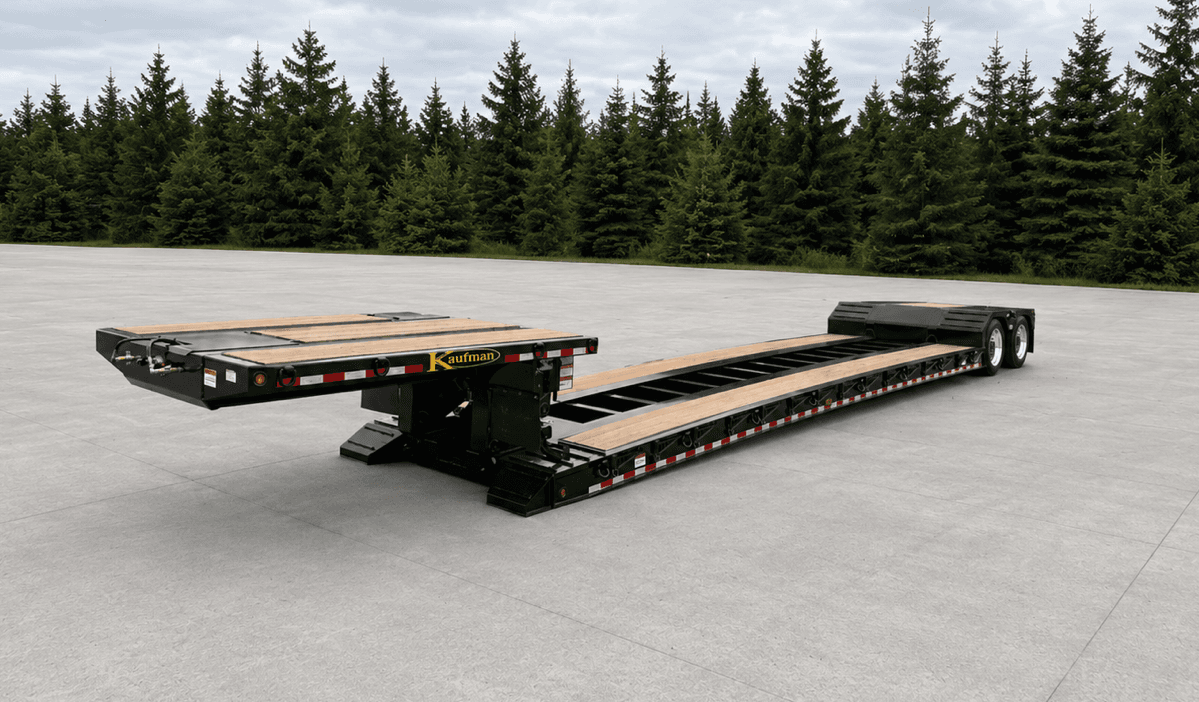

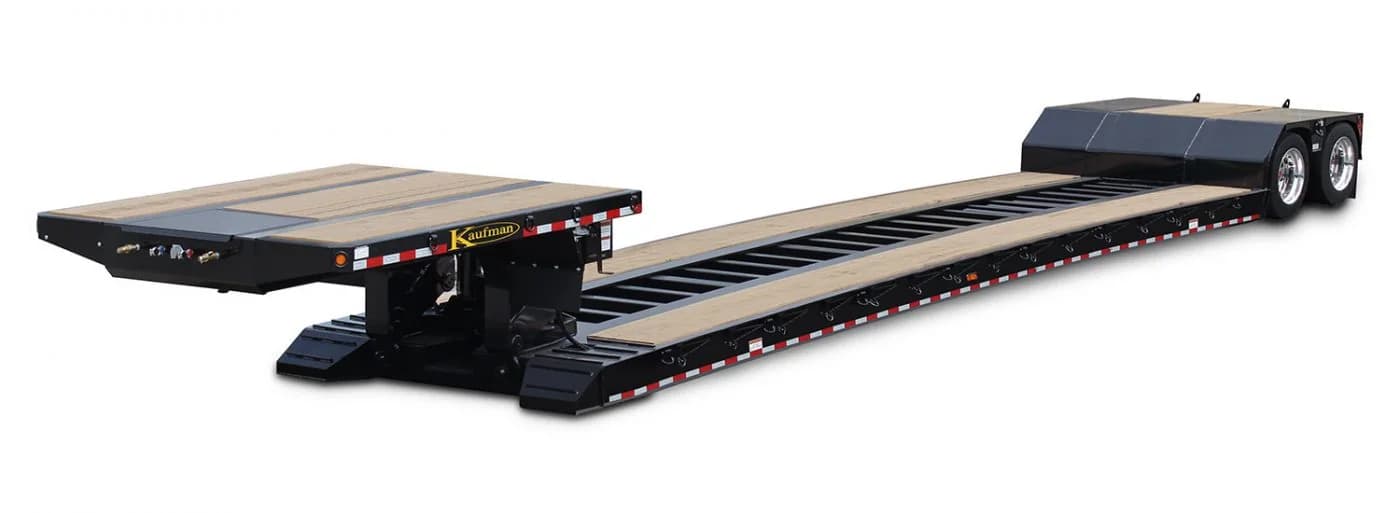

40 Ton Detachable Gooseneck Trailer - Deck On The Neck
- Capacity
- 40 ton
- Axles
- 2
- Deck length
- 29 ft
- Deck height
- 20 in
- GVWR
- 98,500 lb
Overview
From Kaufman Trailers
The 40 Ton Detachable Gooseneck Trailer is built for serious hauling with a focus on strength, versatility, and ease of operation. Rated at 98,500 lbs. GVWR with an 80,000 lb. capacity in a 16 ft. span or greater, this trailer is engineered with four cambered high-tensile steel main beams and a durable 2" oak floor to handle demanding loads day in and day out. The 29’ standard well, 102” wide deck (expandable to 126”), and low 20” loaded deck height provide excellent stability and flexibility for a wide range of equipment. Its hydraulic, non-ground bearing detachable gooseneck allows for quick loading with multiple swing clearances, while air ride suspension and heavy-duty 25K axles ensure a smooth, controlled ride. Equipped with full air brakes, ABS, sealed wiring, LED lighting, and premium Sherwin-Williams finish, this trailer is designed to perform reliably in tough conditions while maintaining a clean, professional look.
Specifications
Capacity
- G.V.W.R.
- 98,500 lbs. (Capacity 80,000 lbs. in 16 ft. span or greater)
Dimensions
- Deck Length
- 29' well standard. Additional Optional Lengths
- Deck Height
- 20" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Upper Deck
- 120” Long x 101.5” Wide, Oak Decking, D-Rings on Side-rail
- Lower Deck
- 29' well length
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- 12" Fabricated
- Floors
- 2" oak flooring
- Toolbox
- Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
- Tie Downs
- Forged D-rings
General
- Fenders
- Load bearing high tensile steel fenders over the tires.
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 2 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included.
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 83" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
