Cozad Trailers

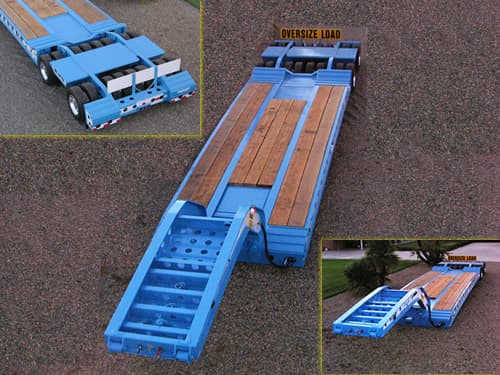

44 Ton Gen-X II Narrow Neck Expando Trailer
- Capacity
- 44 ton
- Deck length
- 22.7 ft
- Deck height
- 27 in
Overview
The Cozad Trailers 44 Ton Gen-X II Narrow Neck Expando Trailer is a 44-ton RGN trailer with a 22.7-foot deck and a 27-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1
- Paint
- 2 Coats Primer & Paint / White STD

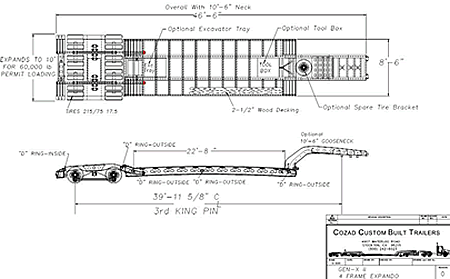

Dimensions
- Decking
- Douglas fir (2.5")
- Deck/Options
- 22'-8" Length STD; 8’-6” Wide
- Back-end/Options
- 8'6" Wide / Expands to 10' Wide; 69” Axle Spread
- Overall Length
- 44' Estimate With 8’ Gooseneck
- Deck Height
- 27" estimate only
Options
- Decking
- (2.5") Apitong
- Gooseneck(s)
- 9-8” With 2 Pins; Spare Tire Bracket; Full Screen; Gooseneck fenders
- Deck/Options
- Tool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminu
- Back-end/Options
- Scraper Fenders [Front / Rear Axle]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
- Brakes
- Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- 8 hole / Aluminum Hub Pilot
- Paint
- Your color
Gooseneck
- Gooseneck(s)
- Mechanical Detachable 8' STD
Running Gear
- Suspension
- Walking Beam
- Axles
- 25,000 lb Oil Bath
- Brakes
- S Cam drum brakes
- Tires
- 215/75R x 17.5 Continental
- Wheels
- Steel Disc, 8 Hole Hub Pilot
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Weight
- 16,500 +/-3%
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
