Cozad Trailers
50 Ton 3-Axle Trailer
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 24.5 ft
- Deck height
- 27 in
Overview

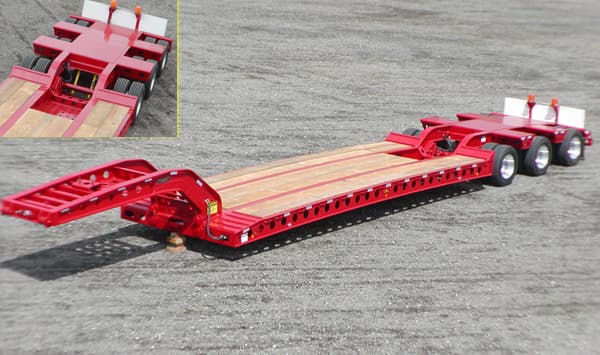

The Cozad Trailers 50 Ton 3-Axle Trailer is a 50-ton RGN trailer with 3 axles, a 24.5-foot deck and a 27-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1 Steel
- Paint
- 2 Coats Primer & Paint / White STD
Dimensions
- Decking
- Douglas fir 2-1/2"
- Deck / Options
- 24’-6” Length STD; 8’-6” Wide
- Back-End /Options
- 60” Axle Spreads
- Length
- 52'
- Flat Deck Height
- 27" Empty estimates only
- Overall Length
- Under 53’' With 24’-6” Deck / 11’ Neck
Options
- Decking
- 2-1/2” Apitong
- Deck / Options
- Tool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminum
- Back-End /Options
- Scraper Fenders [Front / Mid / Rear Axle]; Cover Plate Over Center; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
- Gooseneck(s)
- Hydraulic; Spare Tire Bracket {Mechanical Neck Only]
- Brakes
- Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- Aluminum, 10 Hole Hub Pilot
- Paint
- Your color
Gooseneck
- Gooseneck(s)
- Mech. Detachable
Running Gear
- Suspension
- Air Ride
- Brakes
- S Cam drum brakes
- Tires
- 265/70 R19.5
- Wheels
- Steel Disc, 10 Hole Hub Pilot
- Axles
- 25,000 lb Oil Bath
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Estimated Weight
- (12) Heavy Duty 3" wide
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
