Kaufman Trailers

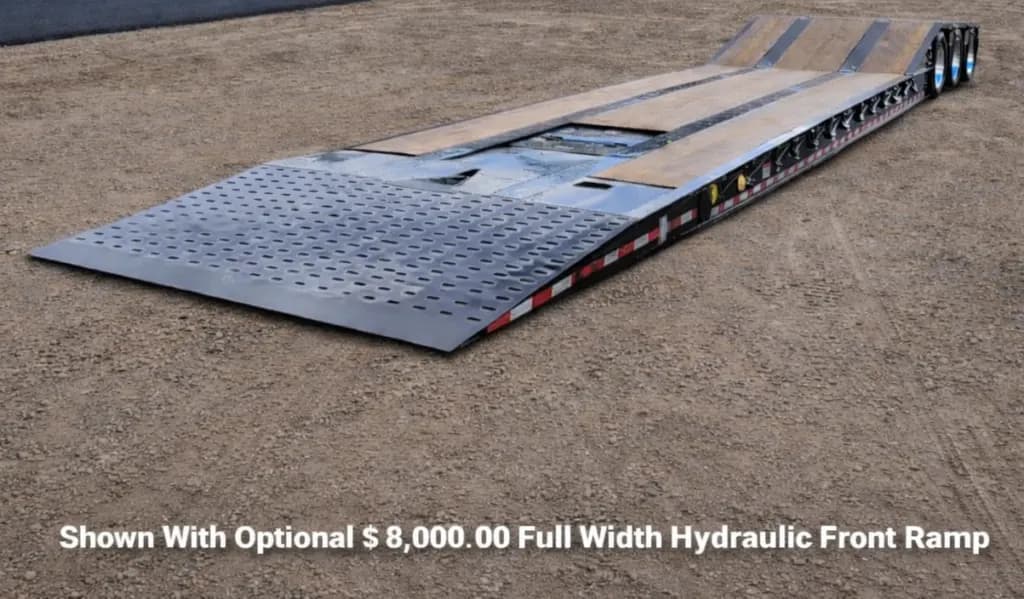

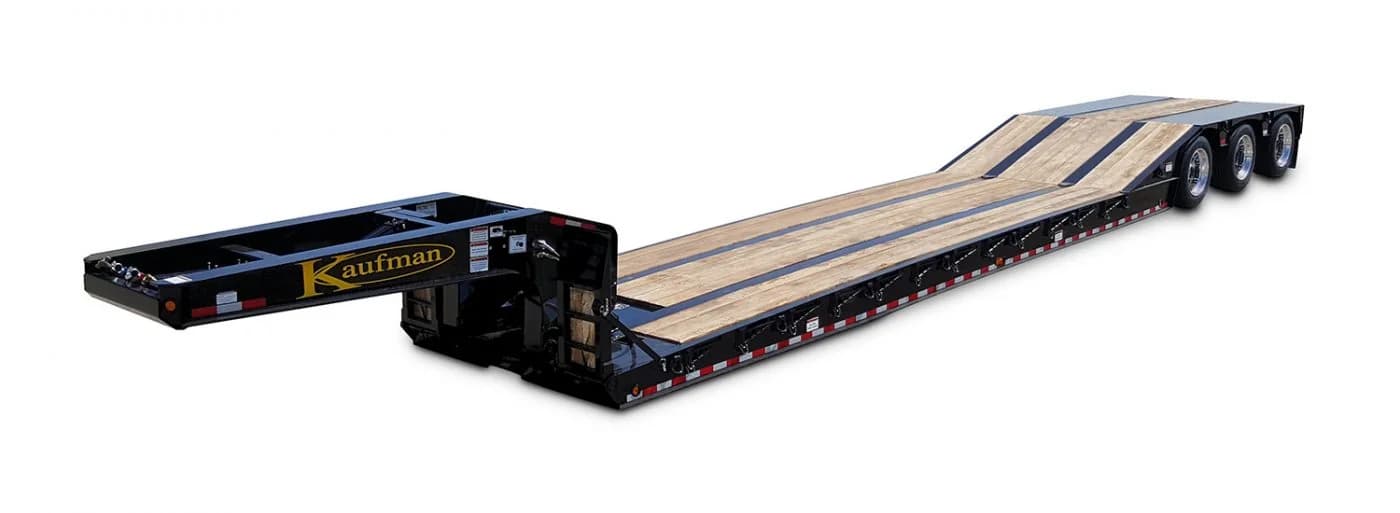

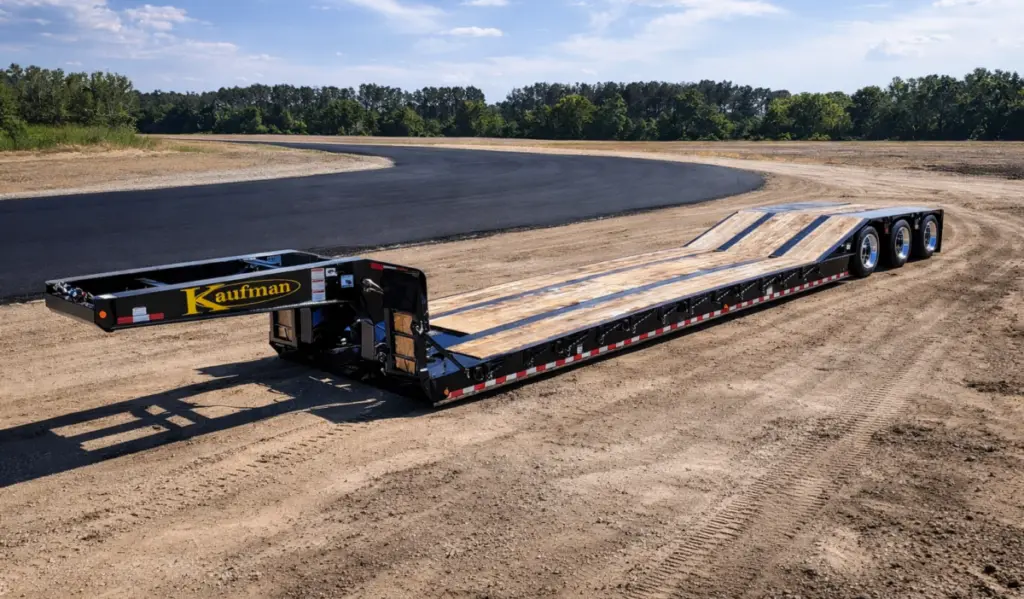

50 Ton Air Ride Paver Special
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 22 in
- GVWR
- 122,000 lb
Overview
From Kaufman Trailers
The 50 Ton Air Ride Paver Special is purpose-built for hauling paving equipment and heavy machinery with strength, stability, and operator-friendly features. With a 122,000 lb. G.V.W.R. and a 100,000 lb. capacity in a 12' span or greater, this trailer delivers serious performance in a 24' well configuration. The low-profile tapered front and four cambered main beams, fabricated from 100 KSI (T1) and 80 KSI high tensile steel, provide superior structural integrity while maintaining a 22" loaded deck height for easy loading. Standard air ride suspension, a 3rd air lift axle, and 16.5" x 7" air brakes with 4S/2M ABS ensure a smooth, controlled haul. The hydraulic removable non-ground bearing gooseneck is wet-line ready and features adjustable load blocks with 89"–107" swing clearance. Additional highlights include full-length heavy-duty load-bearing fenders, 2" oak flooring with center decking, forged D-rings, sliding wood-filled ramps, and a durable Sherwin Williams premium urethane finish over epoxy primer. Built for demanding paving applications, this model combines durability, versatility, and professional-grade components in one dependable package.
Specifications
Capacity
- G.V.W.R.
- 122,000 lbs. (Capacity 100,000 lbs. rated in 12 ft. span or greater)

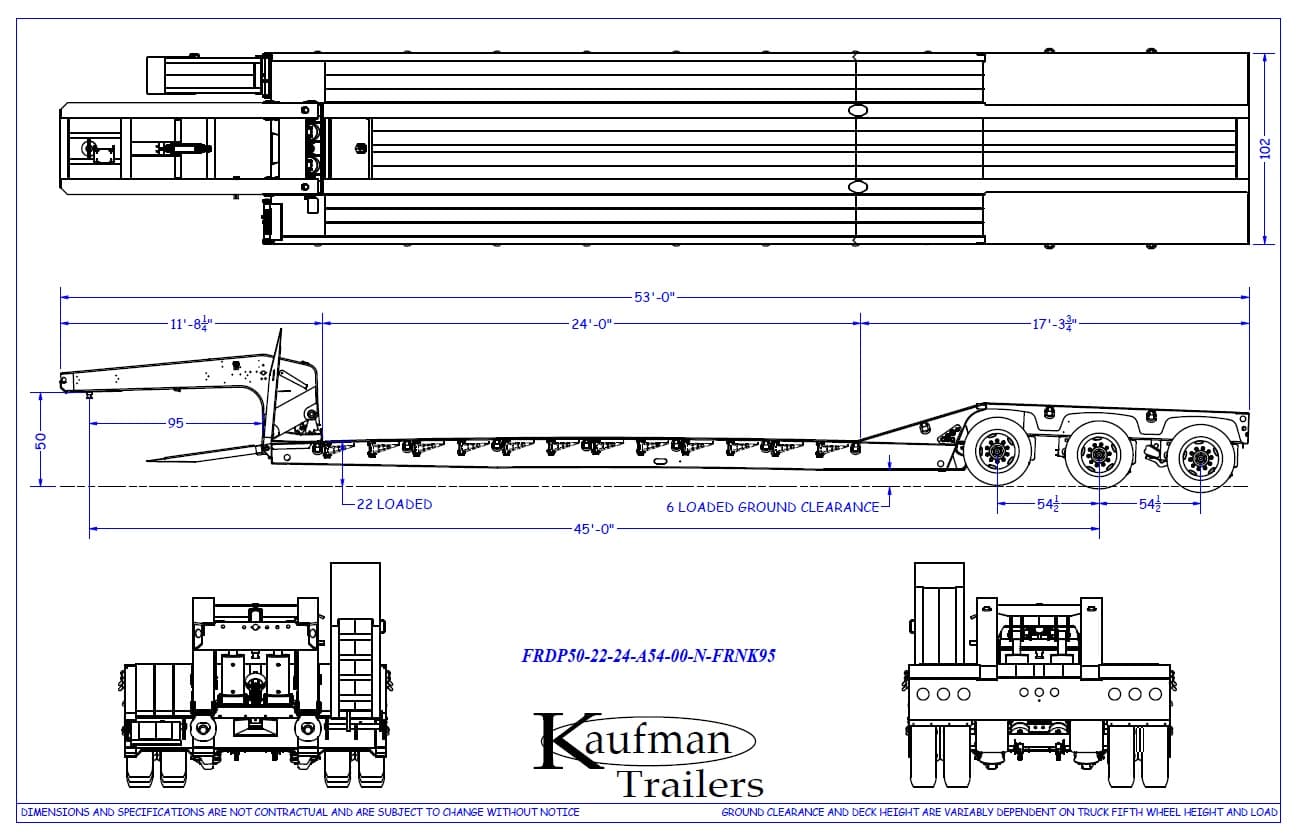

Dimensions
- Deck Length
- 24' well standard
- Deck Height
- 22" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Lower Deck
- 24' well length
- Available Lengths
- 24 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams with low profile tapered front, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Height Fabricated
- Floors
- 2" oak flooring (Center Decking Included)
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Ramps
- 45” Wood Filled Sliding
- Tie Downs
- Forged D-rings
General
- Fenders
- Full Length Heavy Duty Load Bearing
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with air lift 3rd axle (54" spacing)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
