Kaufman Trailers

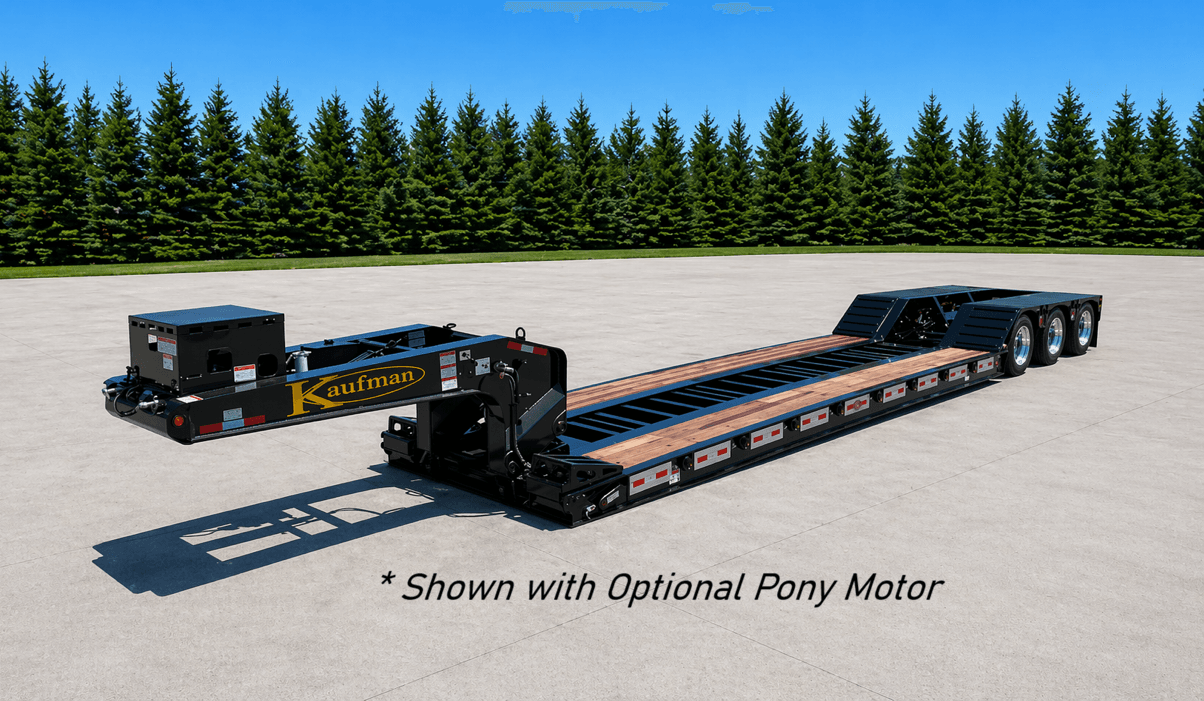

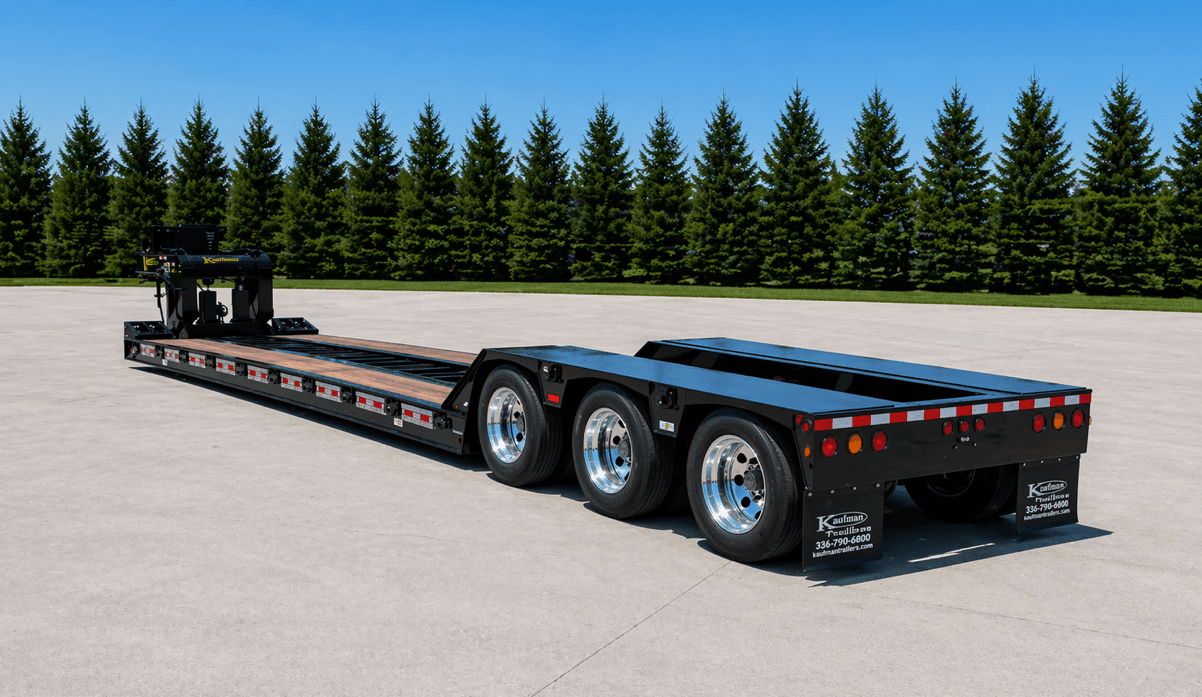

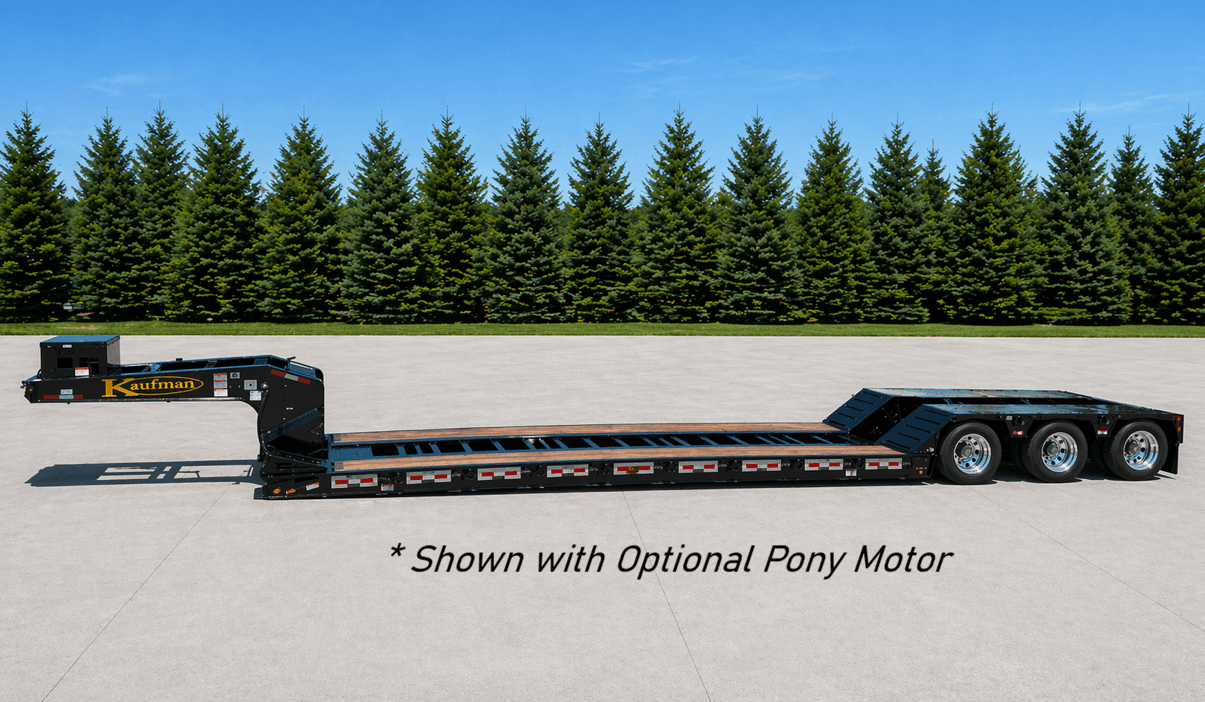

50 Ton Detachable Gooseneck Ag Trailer - 26' Well
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 20 in
- GVWR
- 122,000 lb
Overview
From Kaufman Trailers

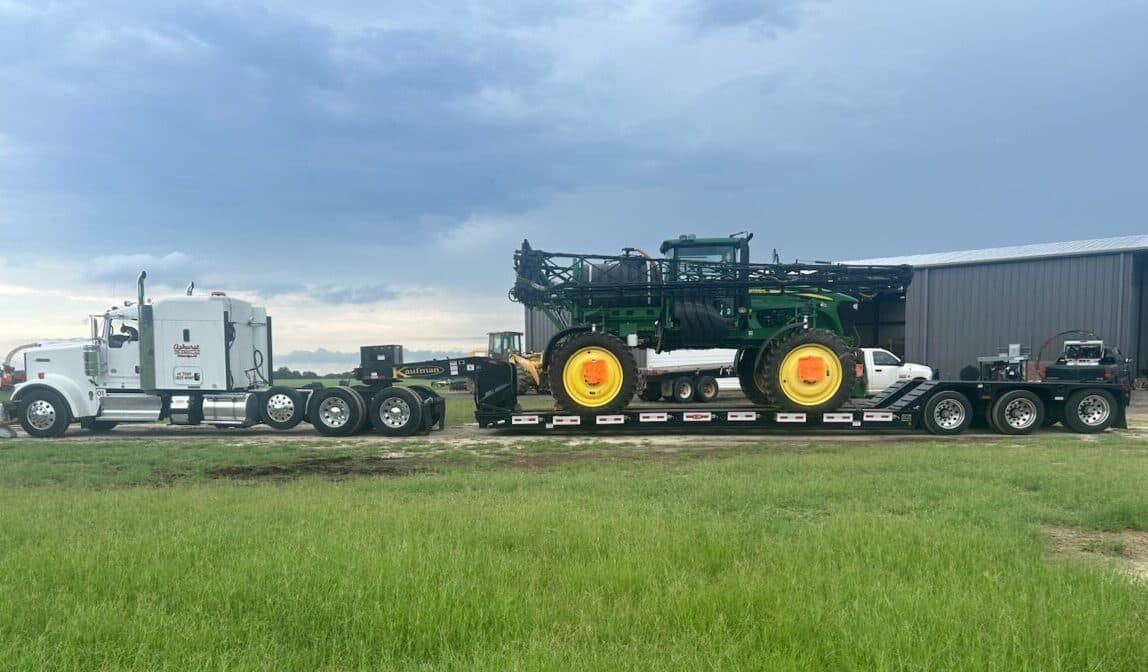

The 50 Ton Detachable Gooseneck Ag Trailer with a 26’ well is engineered for serious agricultural and heavy equipment hauling, delivering strength, stability, and premium craftsmanship in every detail. With a 120,000 lb. G.V.W.R. and the capacity to handle 100,000 lbs. in a 12’ span or greater, this trailer is built on four cambered main beams fabricated from 100 KSI (T1) and 80 KSI high tensile steel for exceptional durability. The 26’ lower well features 2” oak flooring, an 20” loaded deck height for easy loading, and a 102” deck width expandable to 156” with slide-out aluminum outriggers. Air ride suspension, three 25,000 lb. axles, and all-wheel 16.5” x 7” air brakes with automatic slack adjusters and 4S/2M ABS provide a smooth, controlled ride under heavy loads. The hydraulic, removable non-ground bearing gooseneck offers 89”–107” swing clearance and comes standard set up for wet line operation. Finished with a Sherwin Williams premium acrylic urethane over epoxy primer, equipped with lifetime LED lighting, forged D-rings, load-bearing fenders, and a lockable toolbox, this trailer is built to perform in demanding ag and commercial environments.
Specifications
Capacity
- G.V.W.R.
- 122,000 lbs. (Capacity 100,000 lbs. rated in 12 ft. span or greater)
Dimensions
- Deck Length
- 26' well standard. Additional Optional Lengths
- Deck Height
- 20" (fully loaded)
- Deck Width

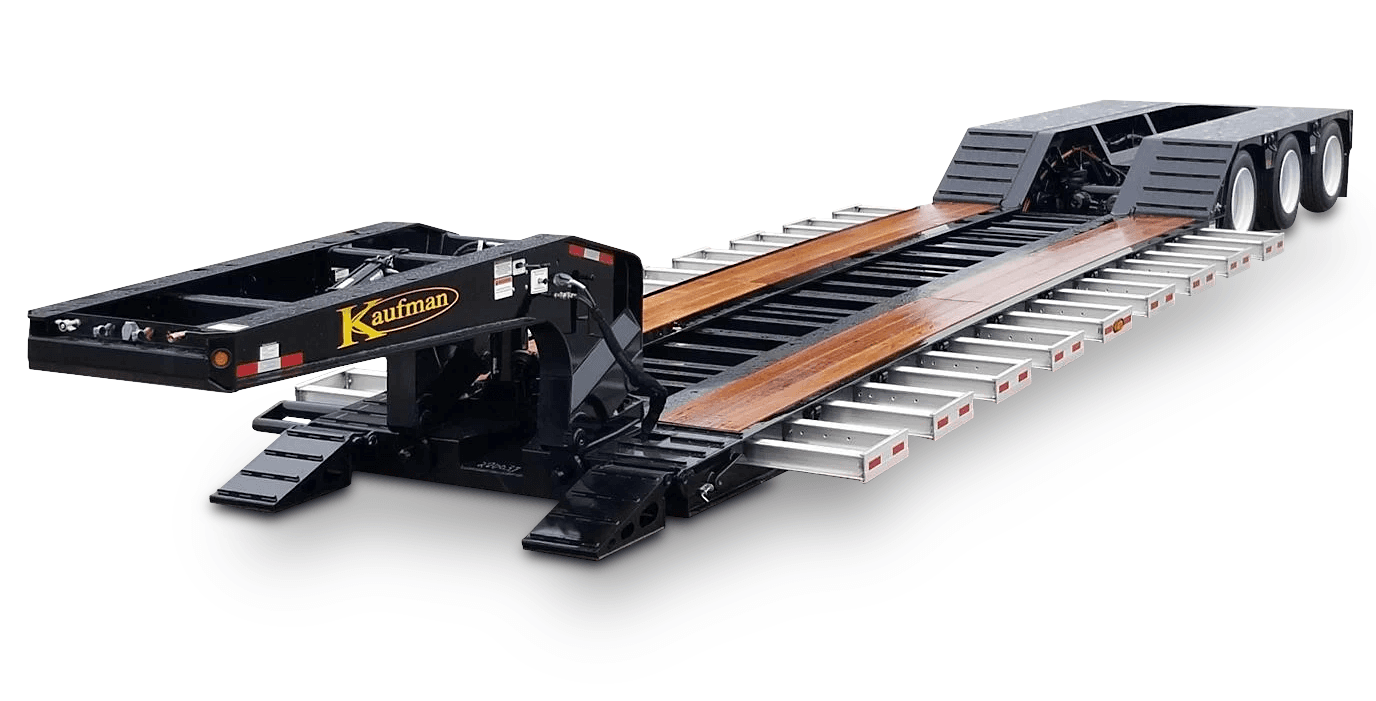

- 102" (Expandable to 156" with outriggers slide-out aluminum outriggers)
- Lower Deck
- 26' well length
- Available Lengths
- 26 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Depth Fabricated
- Floors
- 2" oak flooring
- Toolbox
- Lockable Lid Toolbox
- Ramps
- Front Flip Ramps
- Tie Downs
- Forged D-rings
General
- Fenders
- Load bearing high tensile steel fenders over the tires.
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 3-25,000 lb. axles (5" round, 5/8" wall thickness)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
