Kaufman Trailers

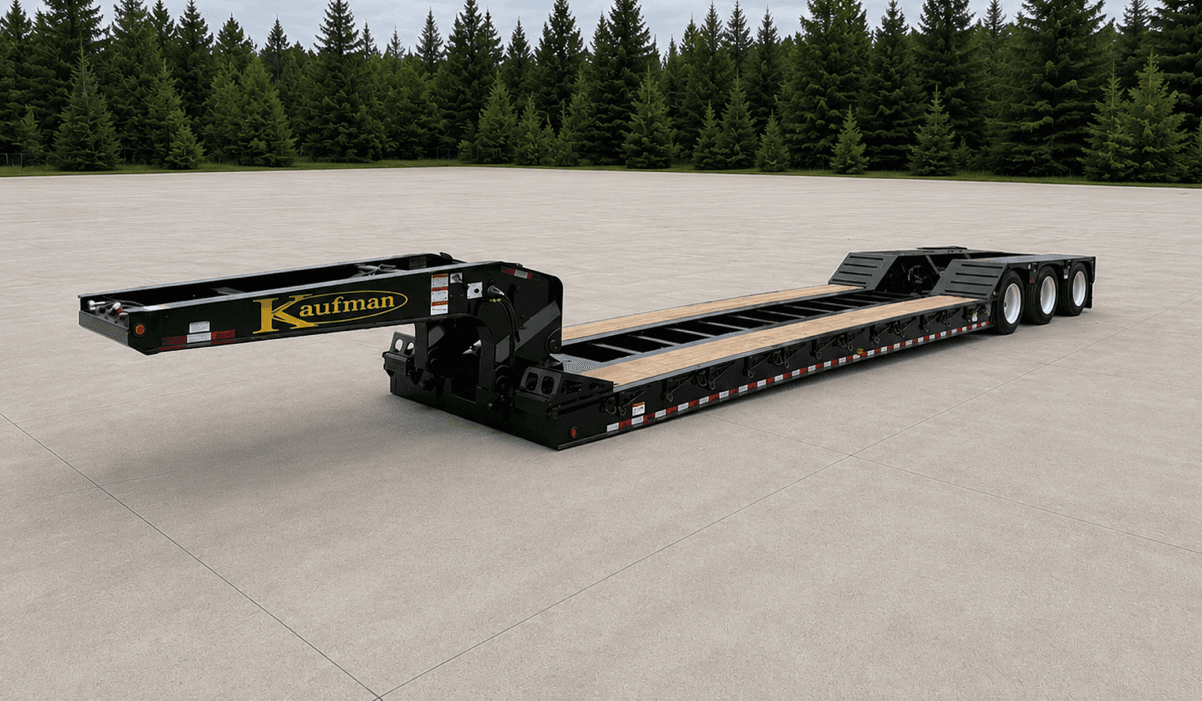

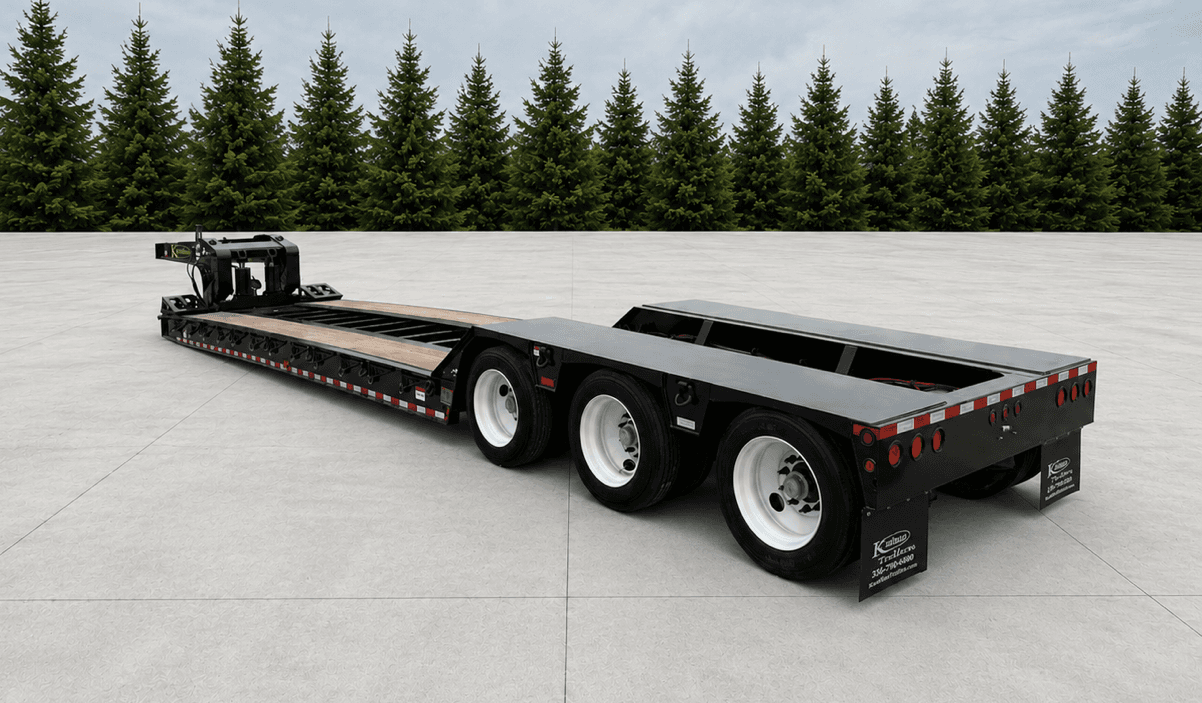

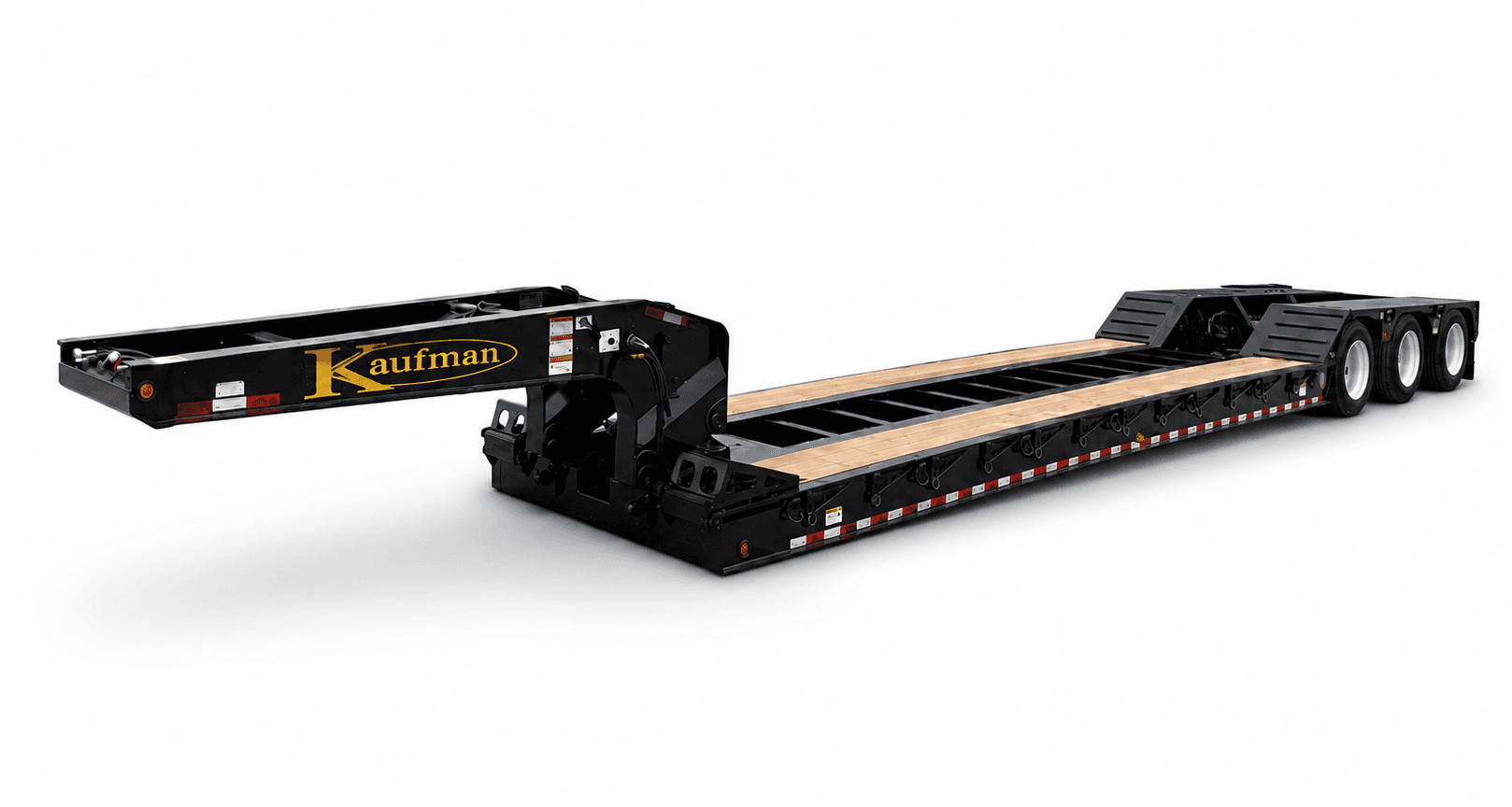

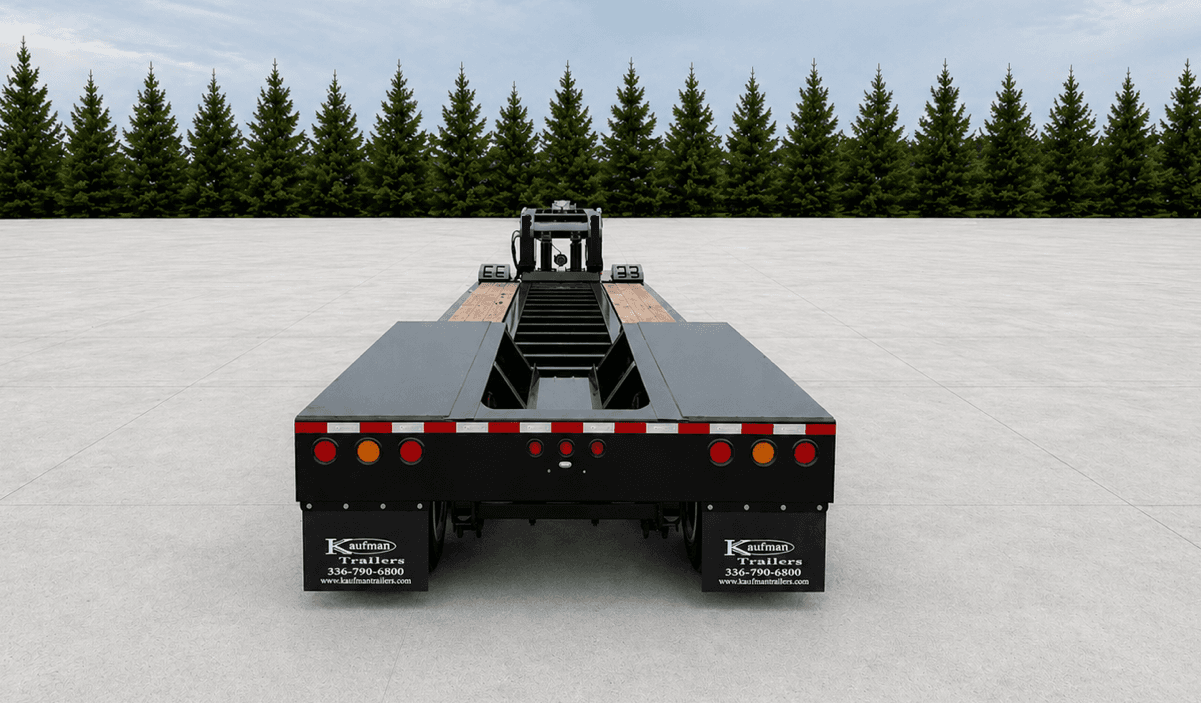

50 Ton Detachable Gooseneck Air Ride Trailer - Standard
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 24 in
- GVWR
- 120,000 lb
Overview
From Kaufman Trailers
The 50 Ton Detachable Gooseneck Air Ride Trailer – Standard is engineered for dependable heavy-haul performance with a 120,000 lb. G.V.W.R. and a 100,000 lb. capacity rating in a 12-foot span or greater. Built on four cambered main beams fabricated from high-strength 100 KSI (T1) and 80 KSI steel, this trailer delivers the structural integrity required for demanding equipment transport. The 24' well, 102" wide deck (expandable to 126" with outriggers), and durable 2" oak flooring provide a stable and versatile hauling platform. A hydraulic, removable, non-ground bearing gooseneck with adjustable load blocks and swing clearances from 89" to 107" allows for efficient loading and unloading, while the air ride suspension and air lift third axle enhance ride quality and maneuverability. Equipped with 16.5" x 7" air brakes with automatic slack adjusters, 4S/2M ABS, forged D-ring tie downs, sealed wiring harness, lifetime LED lighting, and premium Sherwin Williams urethane finish over epoxy primer, this trailer is designed for long-term durability and reliability.
Specifications
Capacity
- G.V.W.R.
- 120,000 lbs. (Capacity 100,000 lbs. rated in 12 ft. span or greater)
Construction
- Tie Downs
- Forged D-rings
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Height Fabricated
- Floors
- 2" oak flooring
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard

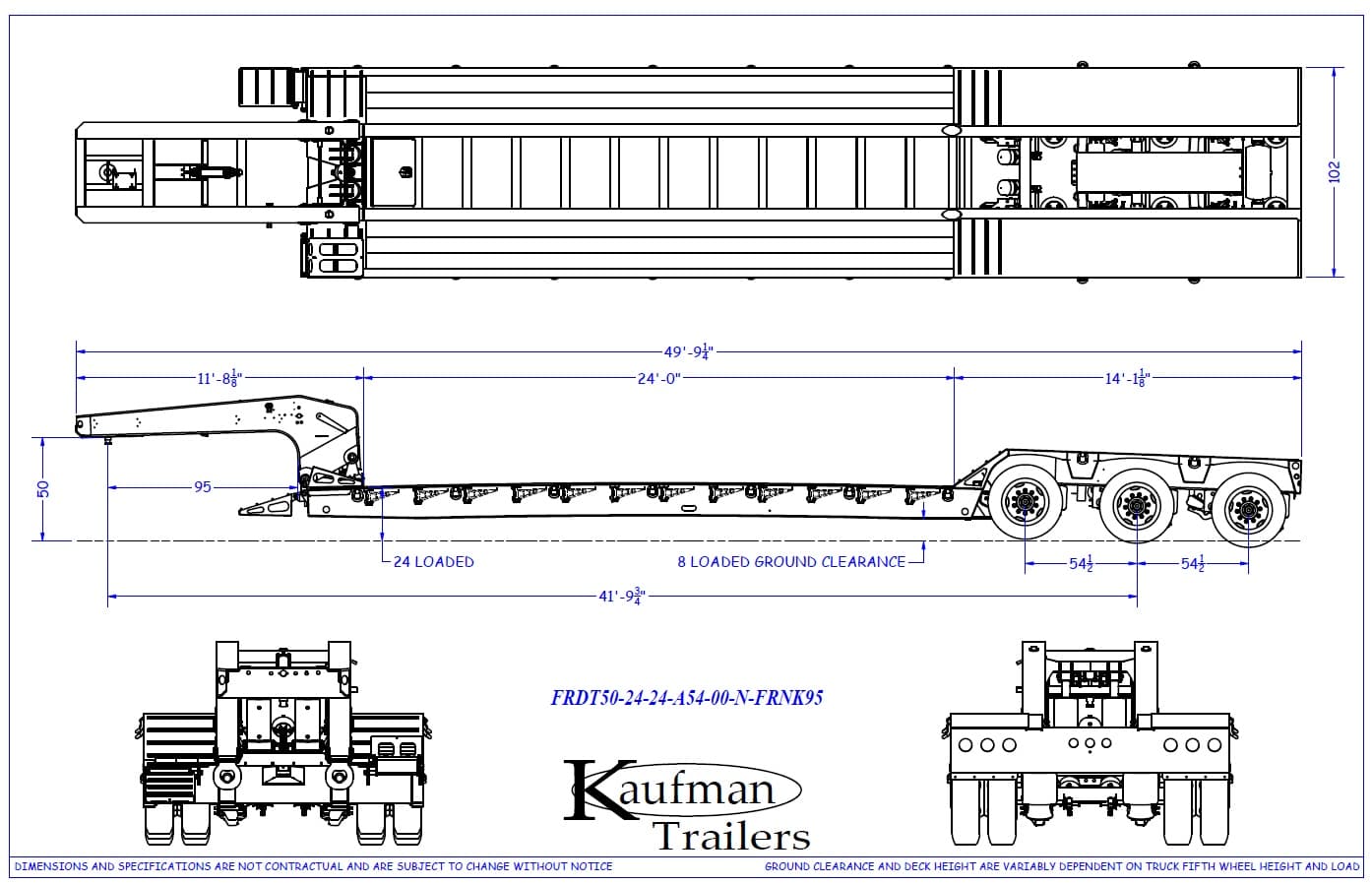

Dimensions
- Deck Length
- 24' well standard
- Deck Height
- 24" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Available Lengths
- 26 ft.
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 255/70 R22.5 LRH
- Axles
- 3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with air lift 3rd axle (54" spacing)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
