Kaufman Trailers

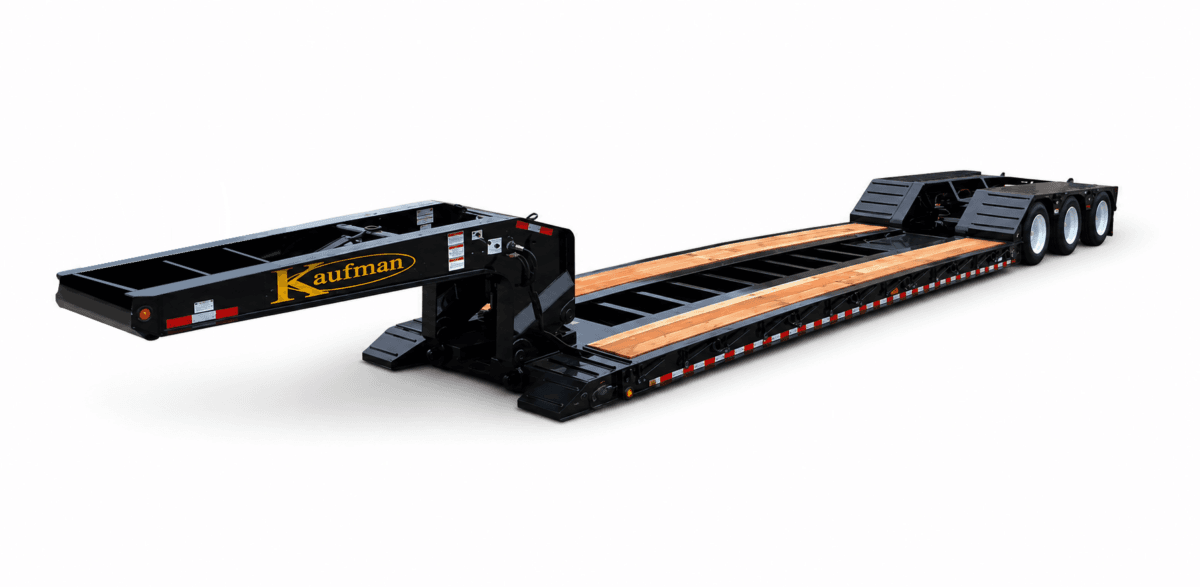

55 Ton Detachable Gooseneck Air Ride Trailer (18") - Deluxe
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 18 in
- GVWR
- 131,000 lb
Overview
From Kaufman Trailers
Base Price: $ 74,900 + FET Optional Load Supporting Rear Fenders........$ 960 Total as pictured... $ 75,860 + FET Built for serious heavy hauling, the 55 Ton Detachable Gooseneck Air Ride Trailer combines a low 18" deck height with a 110,000 lb. capacity in a 12' span. Its 26' lower well, triple 25,000 lb. air-ride axles, hydraulic non-ground-bearing gooseneck, and expandable deck provide the strength and versatility needed to move large equipment with confidence. Deluxe features include fixed front ramps, a bucket well, forged D-rings, oak flooring, a lockable toolbox, air brakes with ABS, and lifetime LED lighting.
Specifications
Capacity
- G.V.W.R.
- 131,000 lbs. (Capacity 110,000 lbs. rated in 12 ft. span or greater)
Dimensions
- Deck Height
- 18" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Lower Deck
- 26' well standard. (Bucket Well Included)
- Available Lengths
- 26 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Floors
- 2" oak flooring
- Ramps
- Fixed Front Ramps (See Additional Options)
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Tie Downs
- Forged D-rings
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Tires
- 275/70 R22.5 LRH
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Axles
- 3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included
- Suspension
- Air ride suspension
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
