Kaufman Trailers

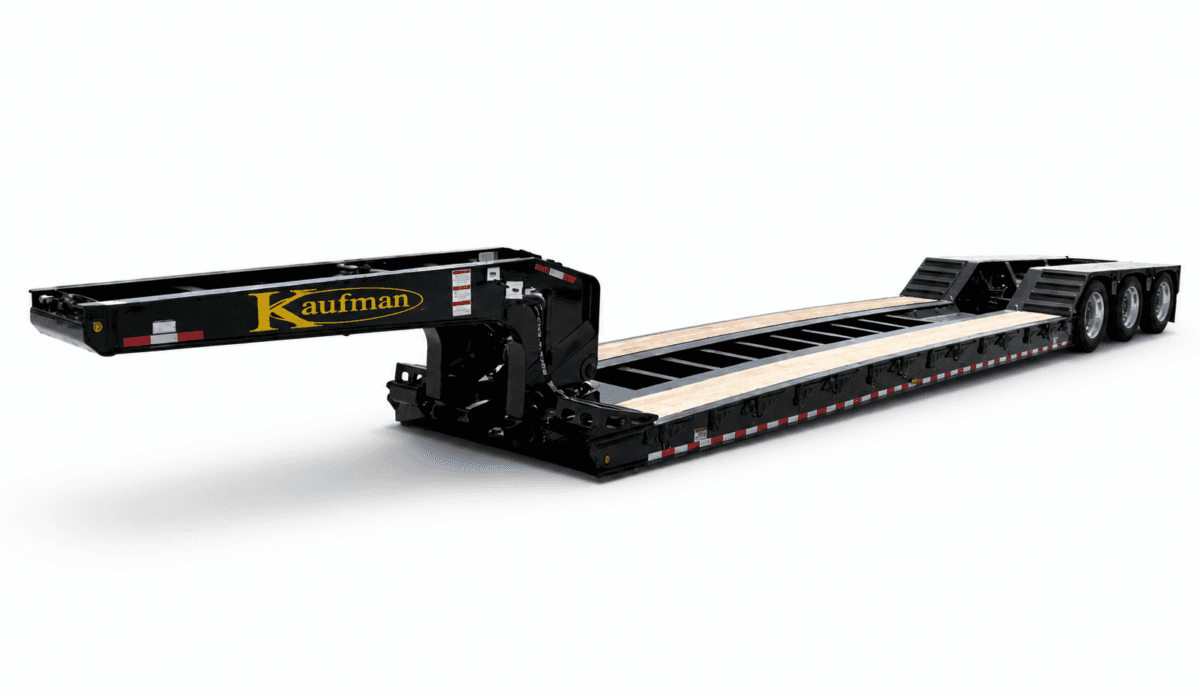

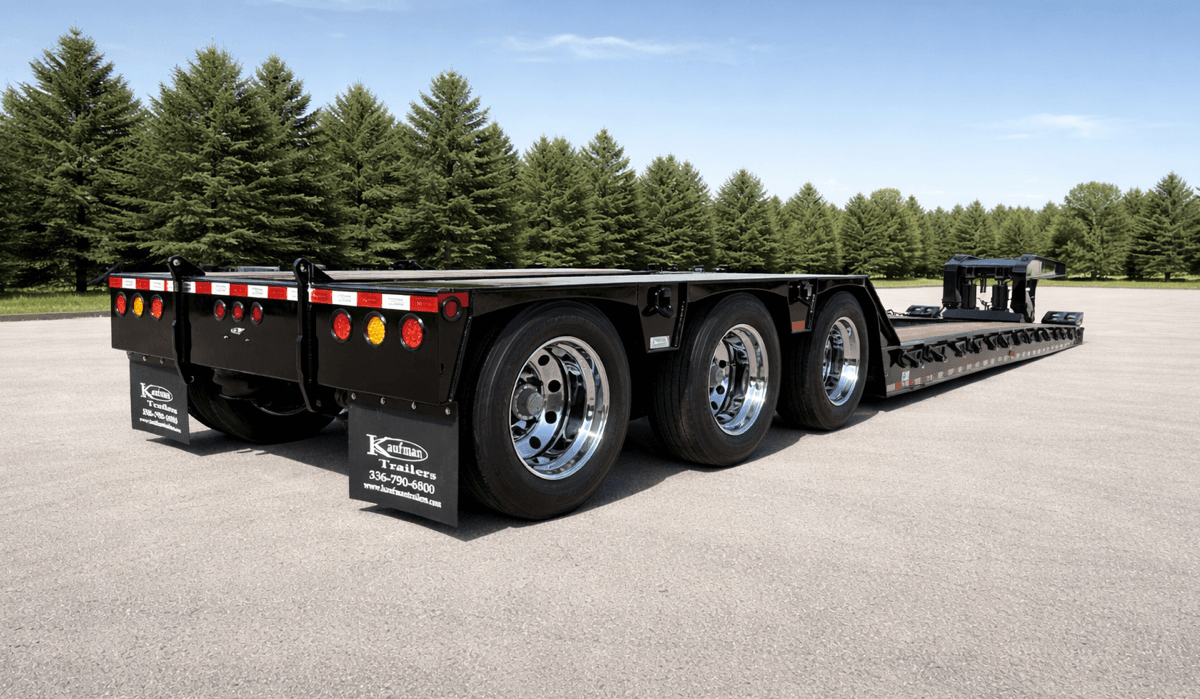

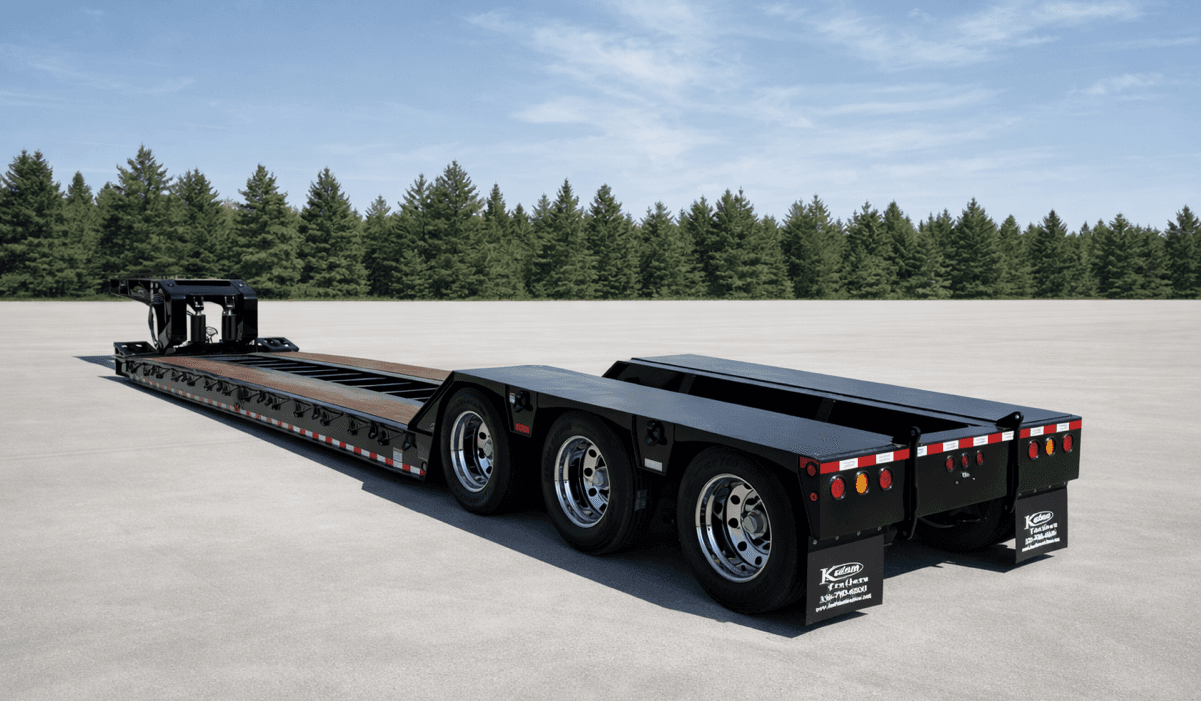

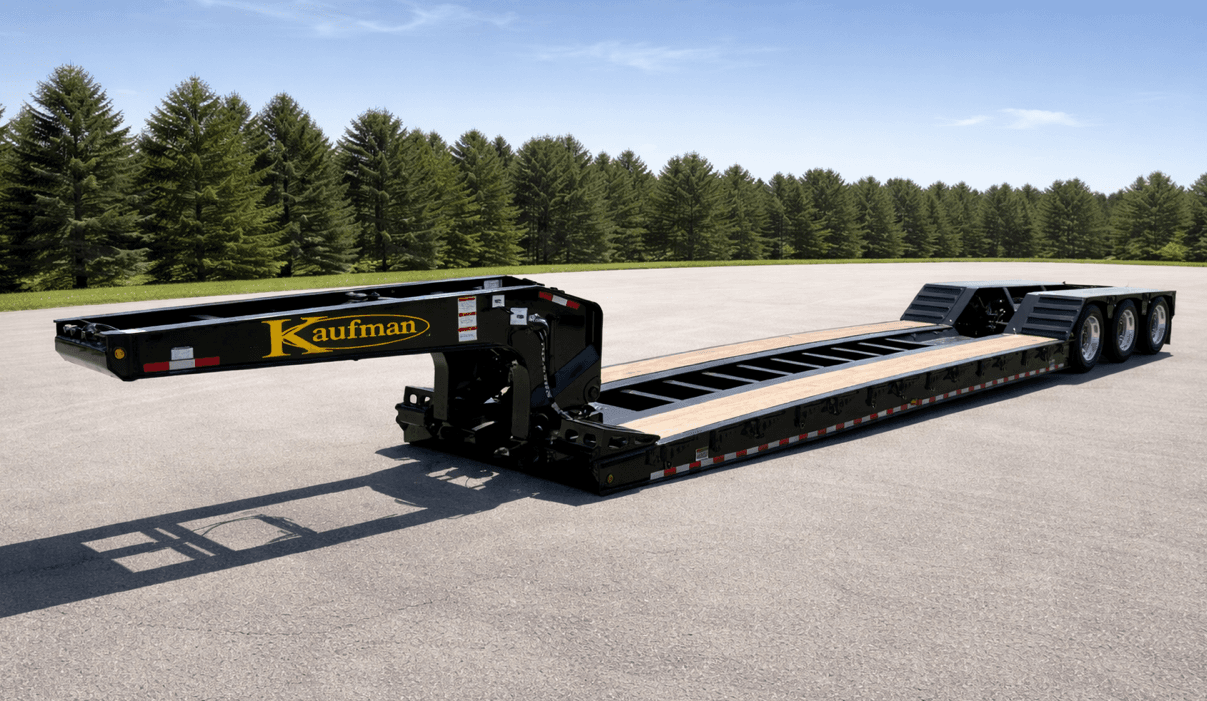

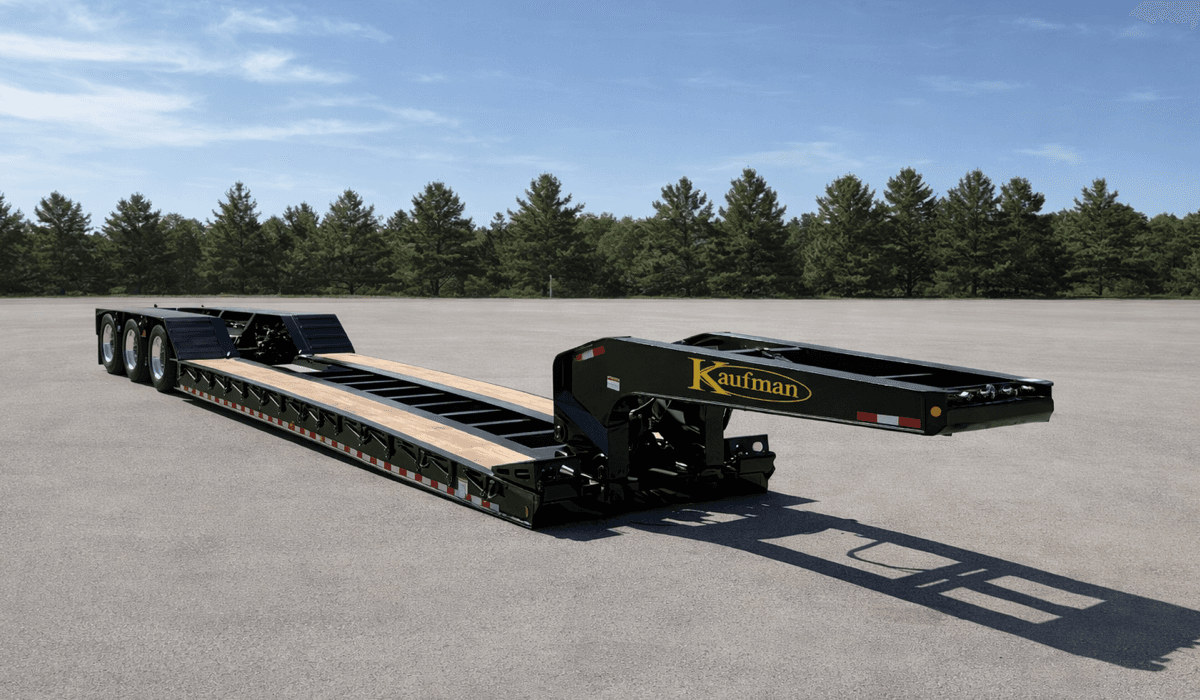

55 Ton Detachable Gooseneck Air Ride Trailer - Deluxe
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 22 in
- GVWR
- 133,000 lb
Overview
From Kaufman Trailers
Base Price: $ 69,900 + FET Optional Outside Alum. Wheel.........................$ 1,660 Optional Load Supporting Rear Fenders........$ 960 Optional Front Flip Ramps..............................$ 395 Total as pictured... $ 72,915 + FET The 55 Ton Detachable Gooseneck Trailer with air ride suspension is built for contractors and heavy haulers who demand maximum capacity, durability, and ride quality. With a 133,000 lb. G.V.W.R. and a 110,000 lb. rating in a 12’ span or greater, this trailer is engineered to handle serious equipment with confidence. The 26’ lower well includes a bucket well and features rugged 2” oak flooring, supported by four cambered main beams fabricated from 100 KSI (T1) and 80 KSI high tensile steel for exceptional strength. Triple 25,000 lb. axles with air ride suspension deliver a smoother haul, while all-wheel 16.5” x 7” air brakes with automatic slack adjusters and 4S/2M ABS provide reliable stopping power. The hydraulic, removable non-ground bearing gooseneck offers 89”–107” swing clearance and comes standard set up for wet line operation. A 102” deck width expandable to 126” with outriggers, forged D-rings, fixed front ramps, a 20” x 42” lockable toolbox, and lifetime LED lighting round out this deluxe package. Finished in Sherwin Williams premium acrylic urethane over a two-part epoxy primer. If you need a dependable 55 Ton Detachable Gooseneck Trailer, this deluxe model trailer is built to perform and built to last.
Specifications
Capacity
- G.V.W.R.
- 133,000 lbs. (Capacity 110,000 lbs. rated in 12 ft. span or greater)
Dimensions
- Deck Height
- 22" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Lower Deck
- 26' well standard. (Bucket Well Included)
- Available Lengths
- 26 ft.
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Floors
- 2" oak flooring
- Ramps
- Fixed Front Ramps (See Additional Options)
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Tie Downs
- Forged D-rings
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Tires
- 275/70 R22.5 LRH
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Axles
- 3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with Flip Prep included
- Suspension
- Air ride suspension
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
