Kaufman Trailers

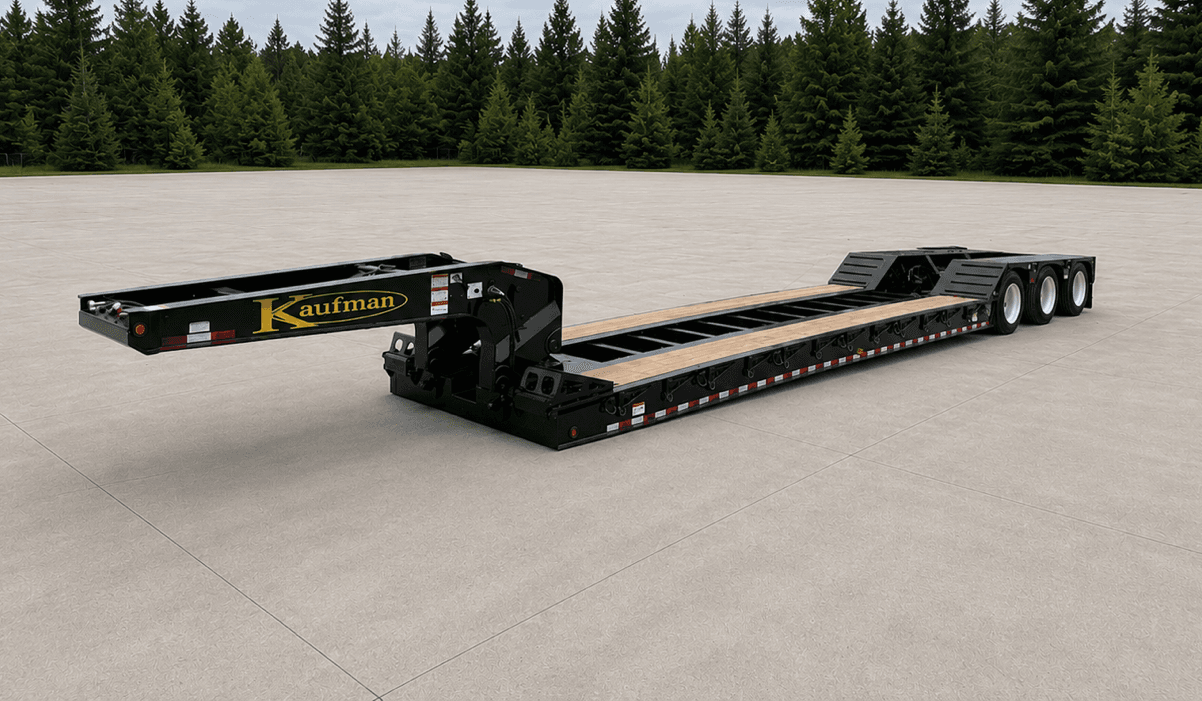

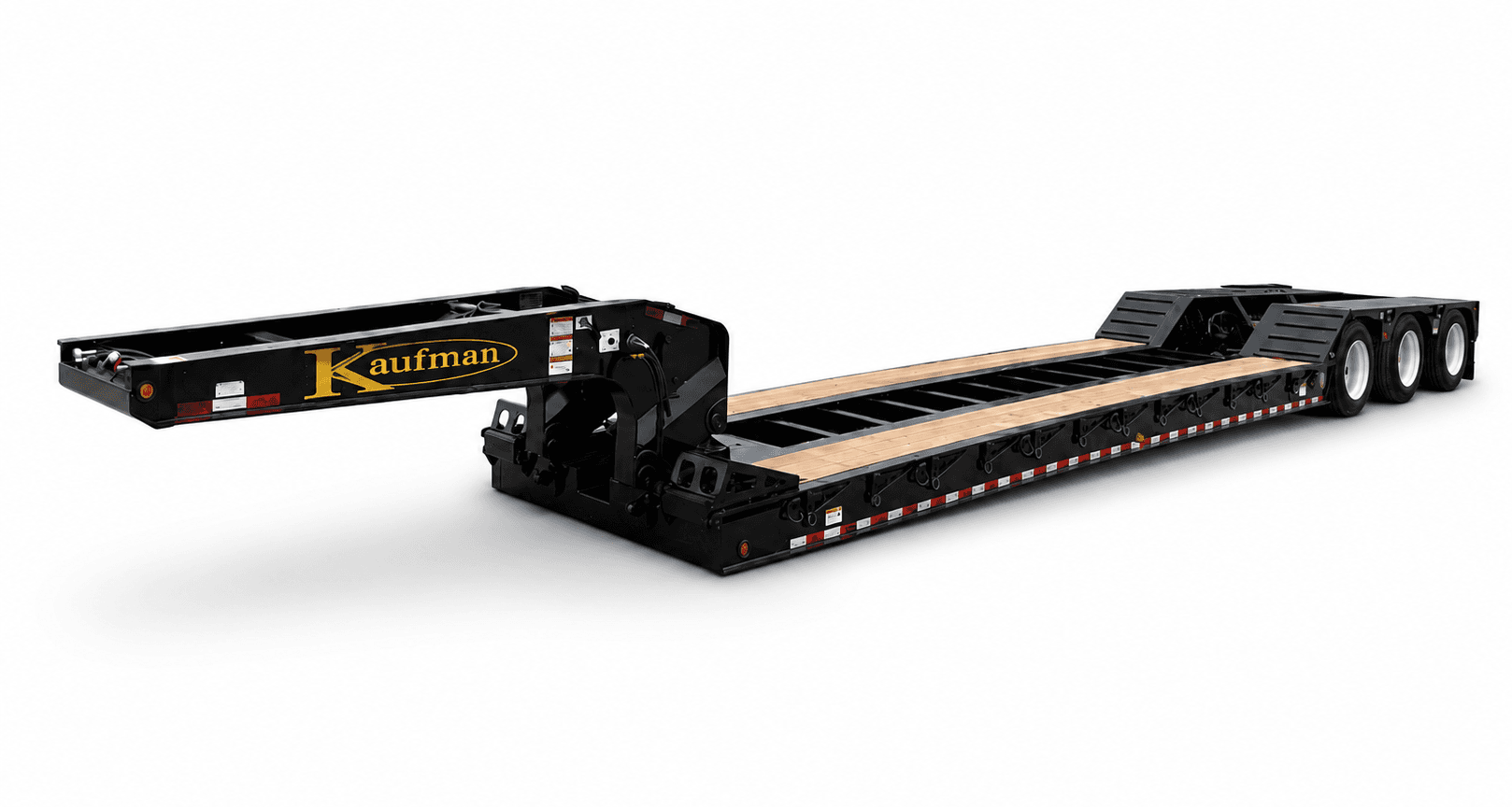

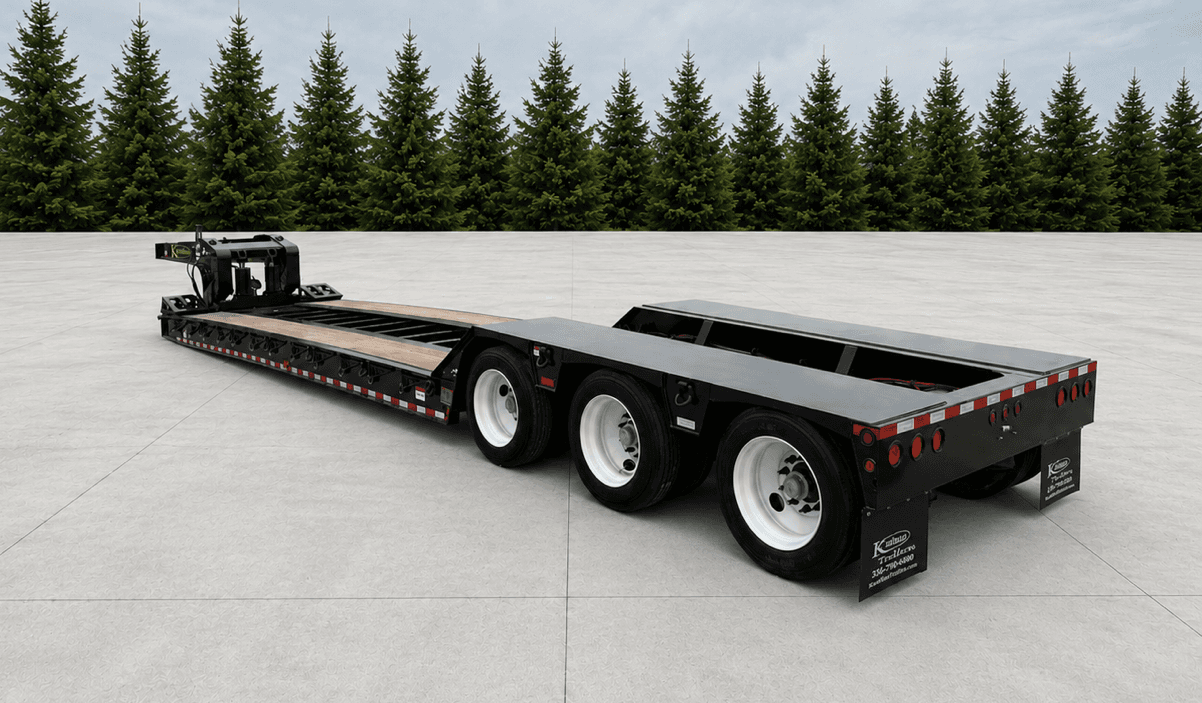

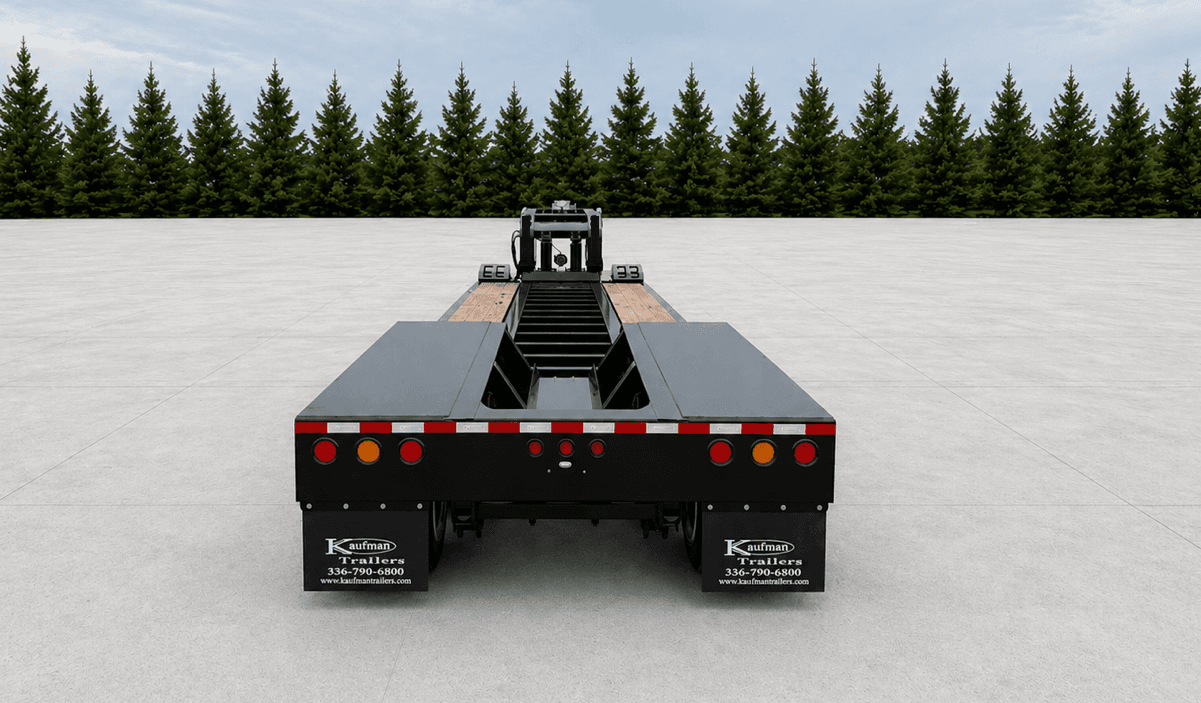

55 Ton Detachable Gooseneck Air Ride Trailer - Standard
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 24 in
- GVWR
- 131,000 lb
Overview
From Kaufman Trailers
The 55 Ton Detachable Gooseneck Air Ride Trailer – Standard is built to handle serious heavy-haul demands with strength, durability, and operator convenience in mind. Rated at 131,000 lbs. G.V.W.R. with a 110,000 lb. capacity in a 12-foot span or greater, this trailer features a 26’ well, 24” loaded deck height, and a full-height fabricated side rail for secure and versatile loading. The frame is engineered with four cambered main beams constructed from 100 KSI (T1) and 80 KSI high tensile steel, delivering exceptional structural integrity under load. Equipped with a hydraulic removable non-ground bearing gooseneck with adjustable load blocks and swing clearances from 89”–107”, it comes standard set up for wet line operation. A durable 2” oak floor, forged D-rings, and fixed front ramps provide dependable tie-down and loading performance, while the air ride suspension, air lift third axle, and all-wheel air brakes with 4S/2M ABS ensure smooth, controlled transport. Premium components such as a Sealco sealed wiring harness, lifetime LED lighting, Sherwin Williams premium urethane finish over epoxy primer, and a lockable toolbox round out this reliable, job-ready heavy equipment trailer.
Specifications
Capacity
- G.V.W.R.
- 131,000 lbs. (Capacity 110,000 lbs. rated in 12 ft. span or greater)
Construction
- Tie Downs
- Forged D-rings
- Frame
- Four cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
- Side Rail
- Full Height Fabricated
- Floors
- 2" oak flooring
- Toolbox
- 20" x 42" Lockable Lid Toolbox
- Ramps
- Fixed Front Ramps (See Additional Options)
Electrical
- Electrical
- Sealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard

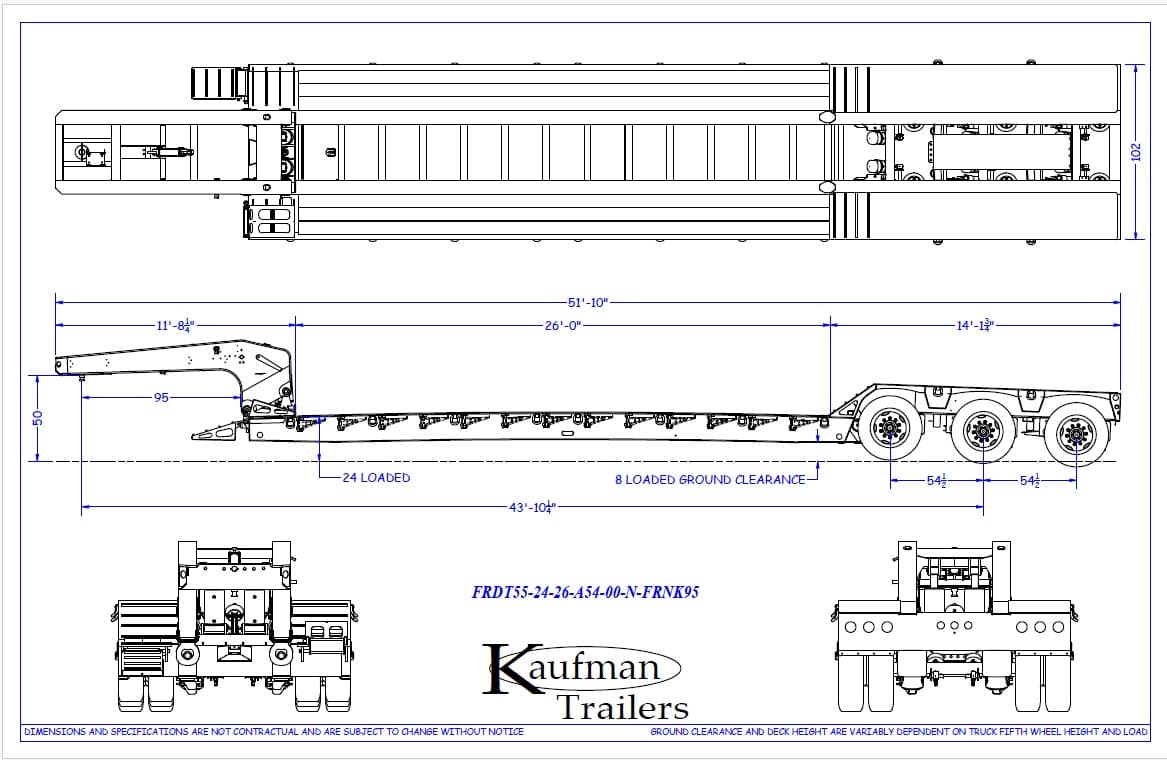

Dimensions
- Deck Length
- 26' well standard
- Deck Height
- 24" (fully loaded)
- Deck Width
- 102" (Expandable to 126" with outriggers)
- Available Lengths
- 26 ft.
Running Gear
- Brakes
- All wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
- Wheels
- 10 hole steel disc / hub piloted (Aluminum Wheel Options)
- Tires
- 275/70 R22.5 LRH
- Axles
- 3 - 25,000 lb. axles (5" round, 5/8" wall thickness) with air lift 3rd axle (54" spacing)
- Suspension
- Air ride suspension
Gooseneck
- Tongue
- Hydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 89" - 107" available swing clearances. Comes standard set-up for wet line.
- Coupler
- SAE 2" Kingpin (16" Kingpin Setting)
Finish
- Finish
- Sherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
