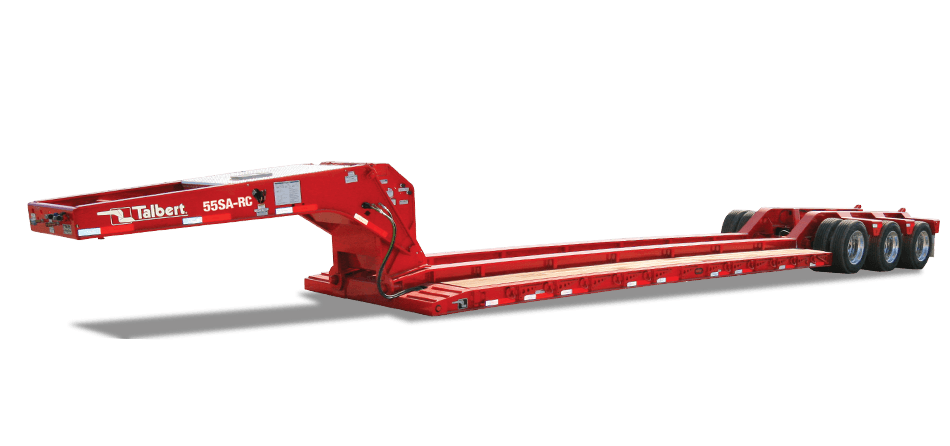

Talbert Manufacturing
55SA-RC
- Capacity
- 55 ton
- Axles
- 800
- Deck length
- 41 ft
- Deck height
- 12 in
Specifications
Gooseneck
- Non-Ground Bearing Gooseneck Design
- RIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control
Dimensions
- 108 in. Swing Radius (Other Lengths Optional)
- Tires: 275/70R22.5 (H)
- 26 ft. 0 in. Deck Length (Other Lengths Optional)
- 41 in. Mainbeam / 37 in. Bolster Height in
- 8 ft. 6 in. Wide Deck (48 in. Out To Mainbeam)
- Spring Parking Brake on Axle Two
- 22 in. Mainbeams, 15-1/2 in. Loaded Side Height
- 12 Volt LED Sealed Light System
- 6 in. Loaded Road Clearance
- 4th Axle and 3+1 Spread Capable
Hydraulics
- Hydraulic Support Cylinder (Standard)
- Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
General
- Front Folding / Fixed Ramps (Optional)
- Bolsters and Half Bolster on Rear Bridge
- 12 in. Swinging Outriggers (Not Removable)
- Extra Deep Boom Well in Rear Bridge
Construction
- 2 in. Apitong Flooring
- 110,000 lb. Capacity in 1/2 Deck Length
- High Strength 100,000 psi Minimum Yield Steel
- Estimated Weight: 21,960 lbs.
Capacity
- Axles: 25,000 lb. Capacity
- Valspar R-Cure 800 Red or Black Paint
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
