Cozad Trailers
60 Ton 10 Foot Wide 7-Axle Trailer
- Capacity
- 60 ton
- Axles
- 7
- Deck length
- 22.5 ft
- Deck height
- 27 in
Overview

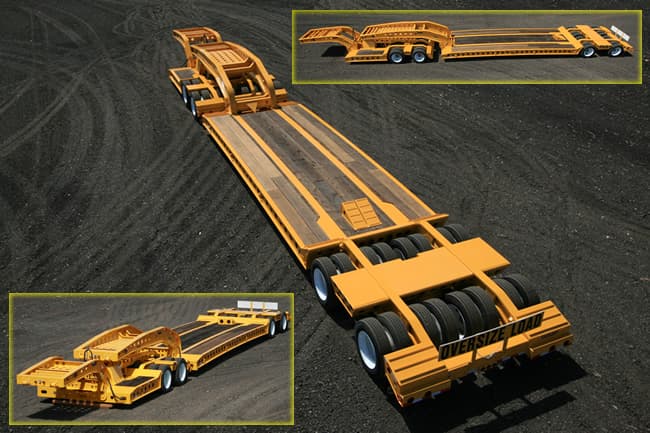

The Cozad Trailers 60 Ton 10 Foot Wide 7-Axle Trailer is a 60-ton RGN trailer with 7 axles, a 22.5-foot deck and a 27-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1
- Paint
- 2 Coats Primer & Paint / White STD
Capacity
- Capacity
- 60 Ton

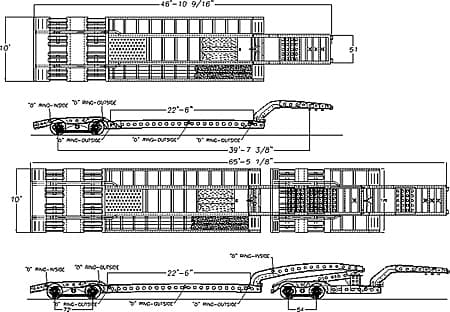

Dimensions
- Overall Length
- 65'-5” Estimate
- Deck Length
- 22'-6” Length STD
- Deck Type / Options
- Flat Deck; 22'-6” Length STD
- Width
- 10' STD
- Deck Height
- 27" Estimate only
- Decking
- Douglas Fir (3")
Options
- Deck Length
- Special Length Optional
- Deck Type / Options
- Tool Box In Front Of Deck; Excavator Tray Rear Of Deck; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3"; 2’ Front Loading Ramps / Steel / Aluminum
- Decking
- Apitong (3")
- Brakes
- 17.5 Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- Aluminum, 8 Hole Hub Pilot W/ 17.5 Air Disc Brakes; Aluminum, 10 Hole Stud Pilot W/ 16-1/2 x 5” Drum Brakes
- Gooseneck(s)
- 9'w/2 pins or10'6" w/3 pins[Small Neck]; Spare Tire Bracket [Small Neck]; Tool Box [Small Neck]
- Hydraulic Lift
- Kohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
- Back-End Options
- Scraper Fenders [Front / Rear Axle]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
- Paint
- Your color
Running Gear
- Suspension
- Rubber Bushed Walking Beam
- Axles
- 25,000 lb Oil Bath
- Brakes
- 12-1/4 x 7” Drum Brake; 16-1/2 x 5” Drum Brake
- Tires
- 215/75R x 17.5 Continental; 255/70 R x 22.5 Continental
- Wheels
- Steel Disc, 10 Hole Stud Pilot
Gooseneck
- Gooseneck(s)
- Mechanical Detachable 8' STD Short Neck; 16’ Detachable STD Long Neck
Hydraulics
- Jeep
- 16” Hyd Lift STD
- Hydraulic Lift
- Kohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 16" Lift
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Estimated Weight
- 17.5 Wheels; Trailer 24,000 / Jeep 16,500 +/-3%
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
