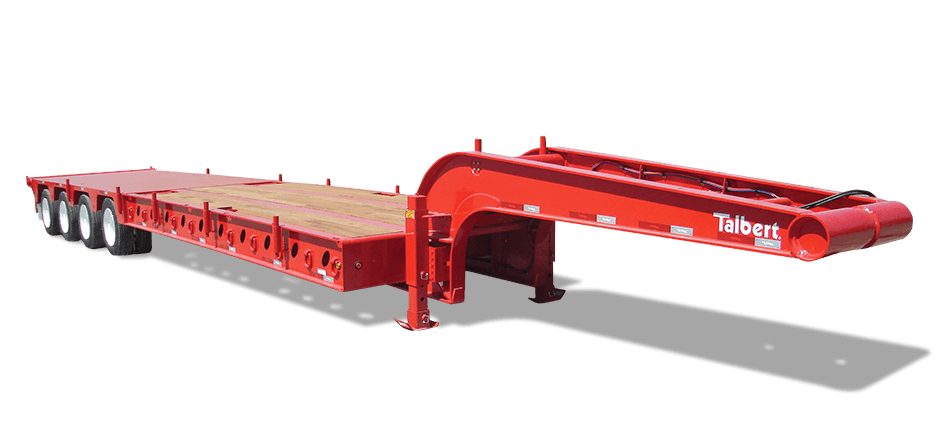

Talbert Manufacturing
65FG
- Capacity
- 65 ton
Specifications
Gooseneck
- Fixed Gooseneck Narrow Type with High Arch Profile
- Tires: Low Profile 17.5 Tires / Low Profile 22.5
- Removable Plate Between Gooseneck Mainbeams to Walk on
- Two Pair of Pipe Pockets Inside Side Beam Flange
General
- 130,000 lbs. Distributed 120,000 lbs. in 16 ft.
- Ridewell Air Ride Suspension
- 120-in. Swing Radius with Alternate Settings at 108-in., 96-in.
- Lights: DOT Rubber Mount with Modular Harness
- Starting at 59 ft. OAL (not including tail roller)
- Two Pair Air Pop-Up Rollers Each Side
- Cable Pick-Up Eye with Winch Lug for Connection Point
- Six Pin Pockets on Outside Flange (Including Tail Roller)
Dimensions
- 8 ft.-6 in. Wide Deck
- Air Lift on Axles 1 and 4 ft
- 35-42 in. Loaded Deck Height
- Lash Rings Ten Each Side of Deck
Construction
- 2 in. Apitong Flooring
- Axle Stops on Last Axle to Prevent Crushing when Loading
- Construction: T1 Beams
- Starting at 31,100 lbs.
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
