70 Ton 2-3-2 Booster Trailer
- Capacity
- 70 ton
- Deck length
- 28 ft
- Deck height
- 28 in
Overview

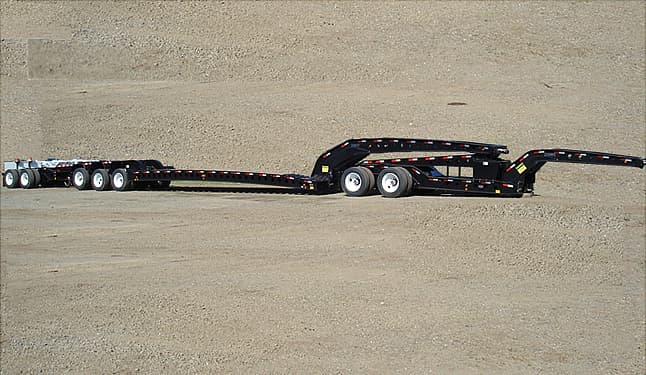

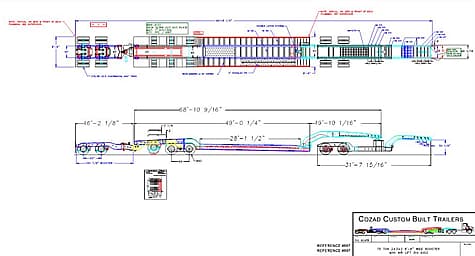

The Cozad Trailers 70 Ton 2-3-2 Booster Trailer is a 70-ton RGN trailer with a 28-foot deck and a 28-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1
- Paint
- 2 Coats Primer & Paint / White STD
Dimensions
- Decking
- Douglas fir (2.5")
- Deck Length
- 28' STD
- Flat Deck Height
- 33" Empty estimates only
- Drop Side Height
- 28" Empty estimates only
- Deck Type /Options
- Drop Side / Flat deck
- Width
- 8’-6”' STD
- Overall Length
- 99’-6” Estimate
Options
- Decking
- (2.5") Apitong
- Deck Length
- Special Length Optional
- Outriggers
- (18) Heavy Duty 3" wide
- Deck Type /Options
- Pin Joint / Deck Extension[‘s]; Tool Box In Front Of Deck; Excavator Tray Rear Of Deck
- Width
- 10’ Wide
- Brakes
- Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- Aluminum, 10 Hole Hub Pilot
- Jeep
- Detachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
- Booster
- Spare Tire Brackets; Hydraulic Bump SteeringWith Kohler 13 HP Electric / Pull-start Gas Engine
- Hydraulic Life
- Kohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
- Paint
- Your color
Gooseneck
- Gooseneck(s)
- Mechanical Detachable 8' STD
Running Gear
- Suspension
- Rubber Bushed Walking Beam
- Axles
- 25,000 lb Oil Bath
- Brakes
- S Cam drum brakes
- Tires
- 275/80 R22.5 Continental
- Wheels
- Steel Disc, 10 Hole Hub Pilot
Hydraulics
- Jeep
- 24” Hyd Lift STD
- Hydraulic Life
- Kohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 24" Lift
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Estimated Weight
- 54,200 Lb Estimate
Capacity
- Capacity
- 75 Ton
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
