Cozad Trailers
70 Ton Baby 9 Booster Trailer
- Capacity
- 70 ton
- Deck length
- 28 ft
- Deck height
- 28 in
Overview

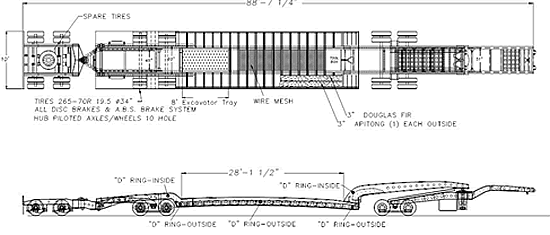

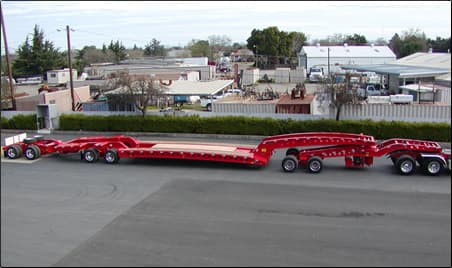

The Cozad Trailers 70 Ton Baby 9 Booster Trailer is a 70-ton RGN trailer with a 28-foot deck and a 28-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1
- Paint
- 2 coats primer & paint; White STD
Dimensions
- Decking
- Douglas fir (3")
- Overall Length
- 88’-7” Estimate
- Deck Length
- 28' STD
- Flat Deck Height
- 33" Empty estimates only
- Drop Side Height
- 28" Empty estimates only
- Width
- 8’-6”' STD
- Deck Type/Options
- Drop Side / Flat deck
Options
- Decking
- Apitong (3")
- Hydraulic Lift
- Kohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
- Brakes
- Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- Aluminum, 10 Hole Hub Pilot
- Paint
- Your color
- Deck Length
- Special Length Optional
- Width
- 10’ Wide
- Deck Type/Options
- Pin Joint / Deck Extension[‘s]; Tool Box In Front Of Deck; Excavator Tray Rear Of Deck
- Jeep
- Detachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
- Booster
- Spare Tire Brackets; Hydraulic Bump Steering; With Kohler 13 HP Electric / Pull-start Gas Engine
- Outriggers
- (18) Heavy Duty 3" wide
Gooseneck
- Gooseneck(s)
- Mechanical Detachable
Running Gear
- Suspension
- Rubber bushed Walking Beam
- Axles
- 25,000 lb Oil Bath
- Brakes
- S Cam drum brakes
- Tires
- 265/70 R19.5 Continental
- Wheels
- Steel Disc, 10 Hole Hub Pilot
Hydraulics
- Hydraulic Lift
- Kohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 24" Lift
- Jeep
- 24” Hyd Lift STD
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Weight
- 46,500 Lb Estimate
Capacity
- Capacity
- 70 Ton
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
