Cozad Trailers

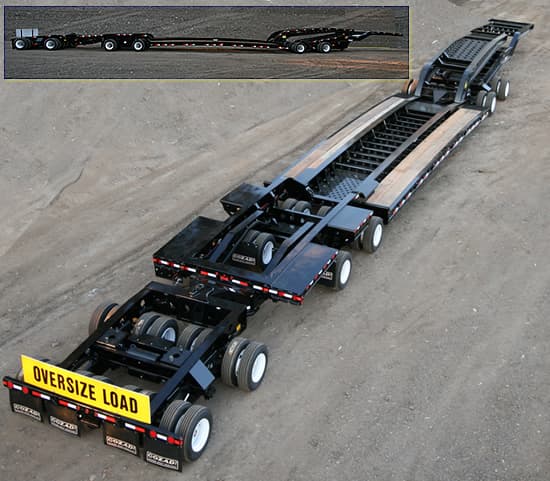

80 Ton Triple 16 Booster Trailer
- Capacity
- 80 ton
- Deck length
- 28 ft
- Deck height
- 28 in
Overview
The Cozad Trailers 80 Ton Triple 16 Booster Trailer is an 80-ton RGN trailer with a 28-foot deck and a 28-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1 Steel
- Paint
- 2 Coats Primer & Paint / White STD
Capacity
- Capacity
- 80 Ton
Dimensions
- Width
- 10' STD
- Decking
- Douglas fir (3")
- Deck Type/ Options
- Drop Side / Flat deck
- Deck Length
- 28' STD
- Flat Deck Height
- 33" Empty estimates only
- Drop Side Height
- 28" Empty estimates only
- Overall Length
- 88’-6”
Hydraulics
- Jeep
- 24” Hyd Lift STD
- Hydraulic Lift
- Kohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 24" Lift
Options
- Jeep
- Detachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
- Hydraulic Lift
- Kohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
- Booster
- Spare Tire Brackets; Hydraulic Bump Steering; With Kohler 13 HP Electric / Pull-start Gas Engine
- Decking
- Apitong (3")
- Deck Type/ Options
- Tool Box In Front Of Deck; Excavator Tray Rear Of Deck; Outriggers (18) Heavy Duty 3" wide
- Deck Length
- Special Length Optional
- Brakes
- Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- Aluminum, 8 Hole Hub Pilot
- Paint
- Your color
Gooseneck
- Gooseneck(s)
- Mech. Detachable
Running Gear
- Suspension
- Rubber Bushed Walking Beam; 72” Axle Spreads
- Brakes
- S Cam drum brakes
- Tires
- 215/75R x 17.5 Continental
- Wheels
- Steel Disc, 8 Hole Hub Pilo
- Axles
- 25,000 lb Oil Bath
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Estimated Weight
- 51,000 Lb
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
