Landoll Trailers

840-AG Detachable Trailer

Features

Capacity
40 ton
Axles
2
Deck height
19 in

Overview

From Landoll Trailers

With a capacity to handle up to 40 tons, it ensures you can transport your heaviest machinery and bulkiest equipment with ease. Built to last with durable materials and advanced engineering, our 40-ton detach ag trailer is the ultimate trailer for maximizing productivity and efficiency on the farm. With an overall deck height of 19-1/4″, experience a smoother, more efficient ride. Its low profile reduces load height and ensures safer, faster transportation of your equipment. Standard double keyholes cut in the inner and outer flanges make finding a tiedown location simple. With an impressive loaded ground clearance, this trailer offers unmatched stability and ease of loading, even in the most challenging terrains. Engineered for efficiency. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. 255/70R 22.5 Double Coin Tires 255/70R 22.5 Michelin Tires 22.5 Aluminum Wheel (10-bolt machined) 22.5 x 8.25 Aluminum Wheel (10-bolt Dura-Brite) 22.5 Steel Hub Pilot Wheels w/ Outboard Drums Painted Black Powder * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart

Specifications

Capacity

Capacity*
40 Ton (80,000 lbs.)
Estimated Base Weight
Consult Factory
Capacity
10,000 lbs. Capacity Each

Dimensions

Deck Rating
80,000 lbs. in 16′
Deck Width
102″
Loaded Deck Height
19-1/4″
Loaded Ground Clearance
7″
Decking
1-1/2″ Apitong, Full Width
Swing Clearance
84″

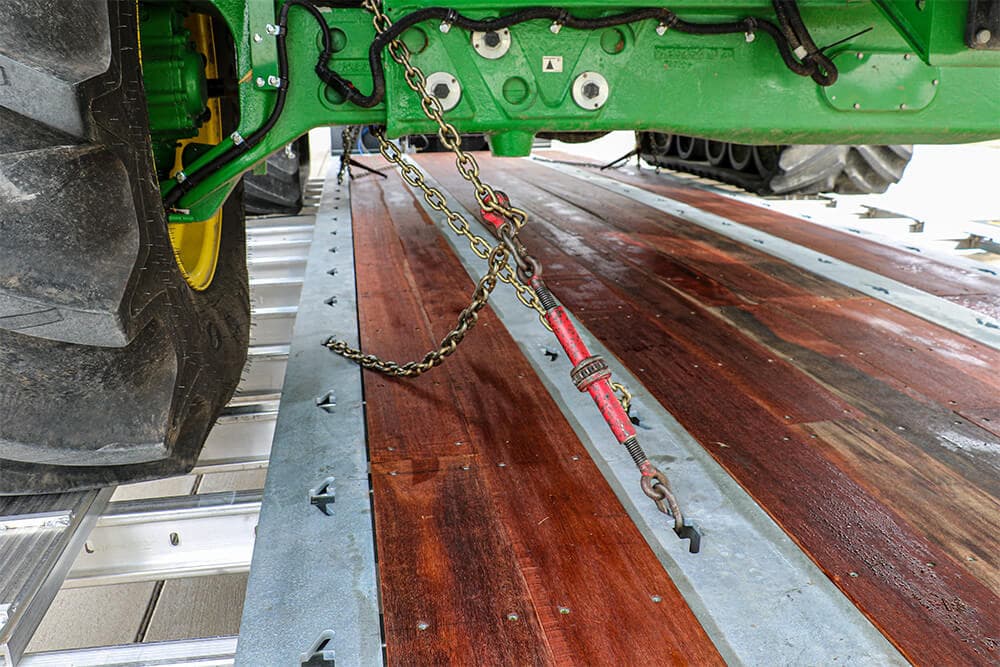

Lower Deck Tie Downs
Double Keyhole Chain Gotchas on All (4) Frame Rails on 18” Centers
Removable Upper Deck
Aluminum or Wood, Full Width for 12′ Gooseneck (124″L x 102″ W), 14,000 lbs. Capacity

Frame

Main Frame
Fabricated 11 1/4″ Beam, 100,000 PSI Yield Flanges

General

Crossmembers
6″ x 3″ Rec. Tube on 18″ Centers
Pin Setting
15″
Rear Trunnion Tie Downs
D-Rings: (2) At the Base Flush Mounted on Top of Inner Beams; (2) Web Mounted on Top; (2) Rear of Trunnion Flush Mounted on Top of Inner Beams; (2) Top of Trunnion Slope (Outer web)

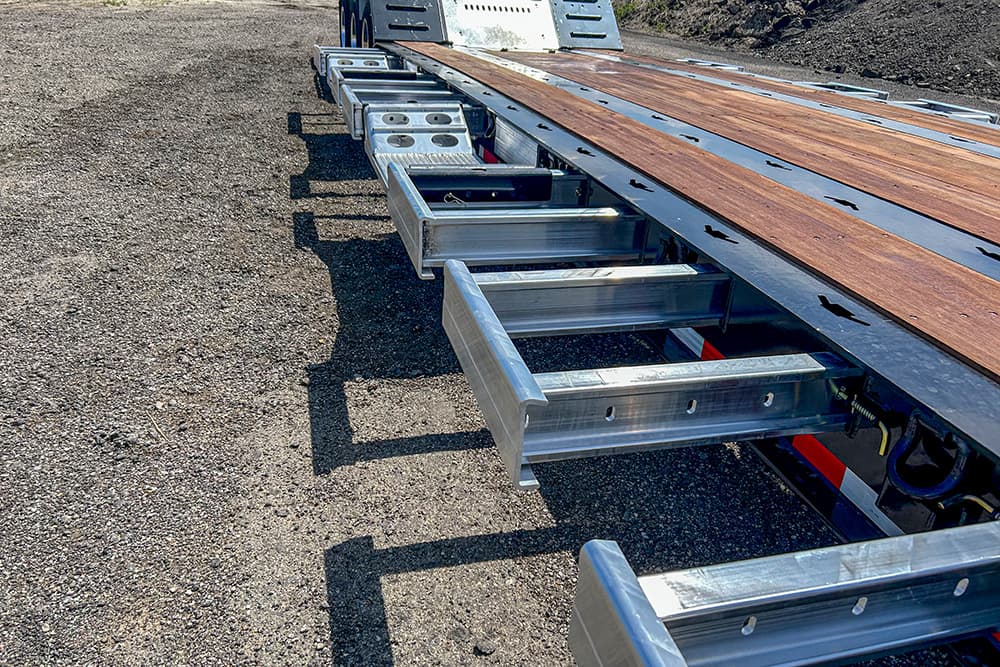

Pullouts
Rust Free Aluminum Pullouts to 13’ Width
Grease
Centralized Grease System
Hubs
22.5 x 8.25 Hub Pilot / Steel Outboard Hubs
Rims
22.5 x 8.25 Steel
Oil Seal Hubs
Internal Mated Assembly
Hoses
Certified to -40°F
Components
Certified to -40°F
Powder Coat Color
TGIC Polyester Powder Coat White, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Bluee
Wet Kit for Tractor
Shipped loose with trailer or factory installed, 30 Gallon Steel Tank
Model
Capacity*
840-51′
40 Ton
840-53′
40 Ton
840-R-53-S54
40 Ton
Certifications
Cage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.

Gooseneck

Hitch
Patented Automatic Gooseneck Lock Engagement
Gooseneck
12′
Gooseneck Tie Downs
D-Rings: (2) At the Rear of the Gooseneck
10’9” Gooseneck
15” Pin Setting, 72” Swing Clearance

Running Gear

Suspension
SAF Air Ride, Drum Brakes, Air Raise / Lower Control and Suspension Dump Valve
Axles
(2) 25,000 lbs. Axles, Dual Tire, Oil Bath Bearings
Brakes
16.5 x 7 Full Air / Spring Brakes, ABS, 4S2M
Tires
255/70R 22.5 LRH Continental
Wheels
Steel Hub Pilot
Wheels – 22.5 Tires
22.5 Aluminum Wheel (10-bolt polished) 22.5 Aluminum Wheel (10-bolt machined) 22.5 x 8.25 Aluminum Wheel (10-bolt Dura-Brite) 22.5 Steel Hub Pilot Wheels w/ Outboard Drums Painted Black Powder
Spare 255/70R 22.5 Double Coin Tires
1 or 2
Spare 255/70R 22.5 Continental Tires
1 or 2
Spare 255/70R 22.5 Michelin Tires
1 or 2

Hydraulics

Hydraulic Hook Up
Quick Couplers / 2,500 PSI – 20 GPM at Controls; 50 GPM Max

Electrical

Air / Electrical
7-Way Receptacle
Lights
Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
Wiring Harness
Industry Best Grote Xtreme Harnessing (7-year warranty)

Finish

Finish
400°F Bake / Steel Grit Shot Blast to Bright Metal
Paint Over Galvanizing
Sides only of Lower Deck and Trunnion Slope

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
