Cozad Trailers
85 Ton Booster Trailer 3+3+3
- Capacity
- 85 ton
- Deck length
- 28 ft
- Deck height
- 27 in
Overview

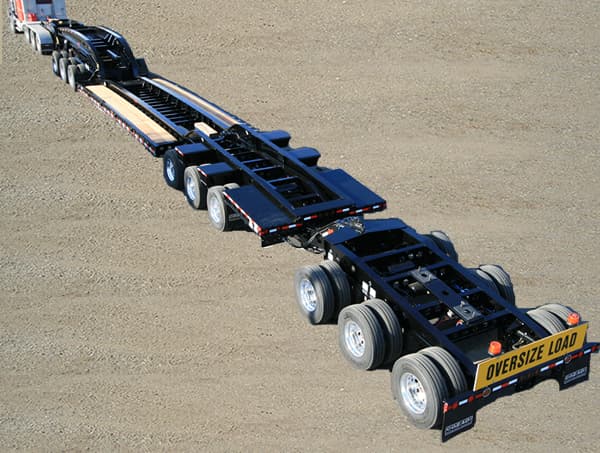

The Cozad Trailers 85 Ton Booster Trailer 3+3+3 is an 85-ton RGN trailer with a 28-foot deck and a 27-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1 STEEL
- Paint
- 2 Coats Primer & Paint / White STD
Dimensions
- Decking
- Douglas fir (3")
- Deck / Options
- 10' Wide Std; 28’ Length
- Overall Length

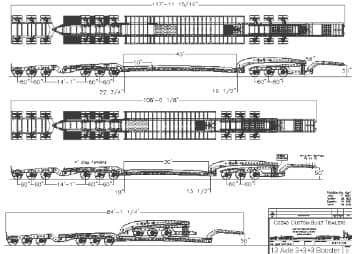

- 108' W / 30’ Deck; 84’ W / Jeep & Big Neck Stacked On Deck
- Back-End Options
- 60” Axle Spreads
- Deck Width
- 10' Wide Std
- Deck Height
- 27" estimate only
Options
- Decking
- Apitong (3")
- Gooseneck
- Small Neck 9'w/2 pins or11' w/3 pins; Spare Tire Bracket; Tool Box
- Deck / Options
- Special Length Optional [30’ Shown]; Pin Joint For Deck Extension; Tool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (18) Heavy Duty 3"; 2’ Front Loading Ramps / Steel / Aluminum
- Brakes
- 19.5 Air Disc (Anti-Lock)
- Tires
- 11R 22.5; Auto Air Inflation System
- Wheels
- Aluminum, 10 Hole Stud Pilot W/Drum Brakes; Aluminum, 10 Hole Hub Pilot W/Disc Brakes
- Paint
- Your color
- Back-End Options
- Drop Fenders [Shown]; Pin Joint For Deck Extension
Gooseneck
- Gooseneck
- Mechanical Detachable 21’-6”' Big Neck; Mechanical Detachable 8' STD Short Neck
Running Gear
- Suspension
- Air Ride
- Axles
- 25,000 lb Oil Bath
- Brakes
- 16-1/2 x 7” Drum Brake
- Tires
- 275/70 R22.5 Continental
- Wheels
- Steel Disc, 10 Hole Stud Pilot
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Weight
- Weight
- 70,800 +/-3% Estimate; W / 30’ Deck And Pin Joint
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
