Cozad Trailers

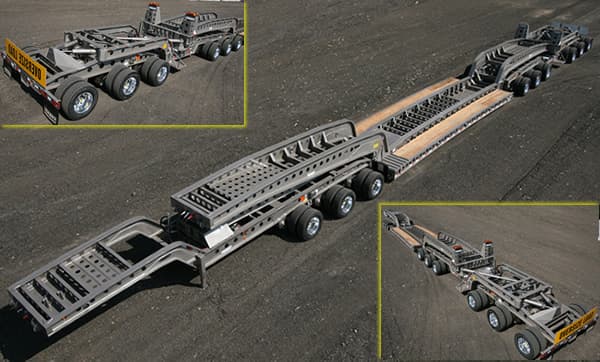

85 Ton Steerable Trailer 3+3+3
- Capacity
- 85 ton
- Deck height
- 28 in
Overview
The Cozad Trailers 85 Ton Steerable Trailer 3+3+3 is an 85-ton RGN trailer with a 28-inch loaded deck height. Trailers of this type typically haul tracked excavators, dozers and low-clearance machines over 30 tons.
Specifications
Construction
- Construction
- 100% A514 T-1 STEEL
- Steering Dolly
- 2 / 50 Ton Hydraulic Rams; 24" Lift; Manual Steering Capabilities With Kohler 25 HP Electric / Pull-start Hydraulic System
- Paint
- 2 Coats Primer & Paint / White STD
Dimensions
- Decking
- Douglas fir (3")
- Overall Length
- 112’ With 28’ Deck
- Flat Deck Height
- 33" Empty estimates only
- Drop Side Height
- 28" Empty estimates only
- Width
- 10' STD
Options
- Decking
- Apitong (3")
- Steering Dolly
- Spare Tire Brackets
- Brakes
- Air Disc (Anti-Lock)
- Tires
- Auto Air Inflation System
- Wheels
- Aluminum, 10 Hole Hub Pilot
- Paint
- Your color
- Jeep
- Detachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
Gooseneck
- Gooseneck
- Mechanical Detachable
Running Gear
- Suspension
- Rubber Bushed Walking Beam; 60” Axle Spreads
- Axles
- 25,000 lb Oil Bath
- Brakes
- S Cam drum brakes
- Tires
- 265/70R x 19.5 Continental
- Wheels
- Steel Disc, 10 Hole Hub Pilot
Electrical
- Lighting
- Sealco Modular Sealed Wiring System; LED Lights
Hydraulics
- Jeep
- 2 / 50 Ton Hydraulic Rams; 24" Lift; Kohler 25 HP Electric / Pull-start Hydraulic System
Weight
- Estimated Weight
- 76,800 Lb With 30’ Dropside Deck
Capacity
- Capacity
- 85 Ton
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
