Landoll Trailers

860 Detachable Trailer

Features

Capacity
60 ton
Axles
2
Deck height
19.5 in

Overview

From Landoll Trailers

The Landoll 860’s versatility originates in its primary standard features. The innovative 4-beam frame features a loaded height of 19-1/2″. The 860 is a 3-axle trailer frame with standard hinge brackets and hookups for an additional flip axle or a Nitrogen Stinger / Spreader Bar. The patented gooseneck attachment design gives the operator easy controls for quick hookup. Two kingpin settings, providing swing clearance of 90″ and 108″, allow three or four axle tractors to maximize their weight distribution. The locking load carrier gives seven different ride height adjustments for additional ground clearance or lowering the deck height. No other gooseneck offers the flexibility and time savings as the Landoll 800 Series. For heavy loads, the base trailer comes standard with flip axle brackets and air/electrical couplers. To move a permit load with ease, an optional flip axle or Nitrogen Stinger / Spread bar establishes a 14-foot spread between axles. The 860 gooseneck is standard with the flip extension brackets. The optional 36” flip extension allows for swing clearance of a two-axle jeep dolly. The Landoll detachable series is work ready with a flattened front approach, apitong wood in the track area, a recessed storage compartment, and swing-out over width extensions. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Black Available Upon Request * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart

Specifications

Capacity

Capacity*
60 Ton (120,000 lbs.)
Estimated Base Weight
25,400 lbs. (53′)

Dimensions

Deck Rating
120,000 lbs. in 14′
Deck Width
102″
Loaded Deck Height
19.5″
Loaded Ground Clearance
6.5″
Decking
2″ Nominal Apitong Track Area
Swing Clearance
108″ and 90″

Frame

Main Frame
Fabricated 80,000 PSI Yield 4 Beam Design with 100,000 PSI Flanges, HD Sloped Front Approach with Traction Bars

General

Crossmembers
8″ High Tensile I-Beams on 24″ Centers
Pin Setting
Dual Pins 15″ and 33″
Storage Area
(1) Between Main Frame at Front of Lower Deck (41″W x 24″L x 10″ D)
Tie Downs
Angled D-Rings on Lower Deck, Trunnion: 1 on End of Each Bolster, 2 at Rear of Lower Deck, 2 at Top of Rear Slope, 2 at Rear of Trunnion
Bolsters
Half Front Bolster with Traction Bars, Lowered Bolster Between Tires (20,000 lb. Capacity); Rear Bolster (17,500 lb. Capacity)
Grease
Centralized Grease System
Rims
22.5 x 8.25 Steel Hub Piloted
Oil Seal Hubs
Internal Mated Assembly
Hoses
Certified to -40°F
Components
Certified to -40°F
Color
Zinc Rich Powder Primer
Powder Coat Color
TGIC Polyester Powder Coat, White / Black / Yellow / Blue / Red / Green / Sapphire Blue / Dark Gray
Wet Kit for Tractor
Shipped Loose with Trailer or Factory Installed, 30 Gallon Steel or Aluminum Tank
Model
Capacity*
860
60 Ton
Certifications
Cage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.

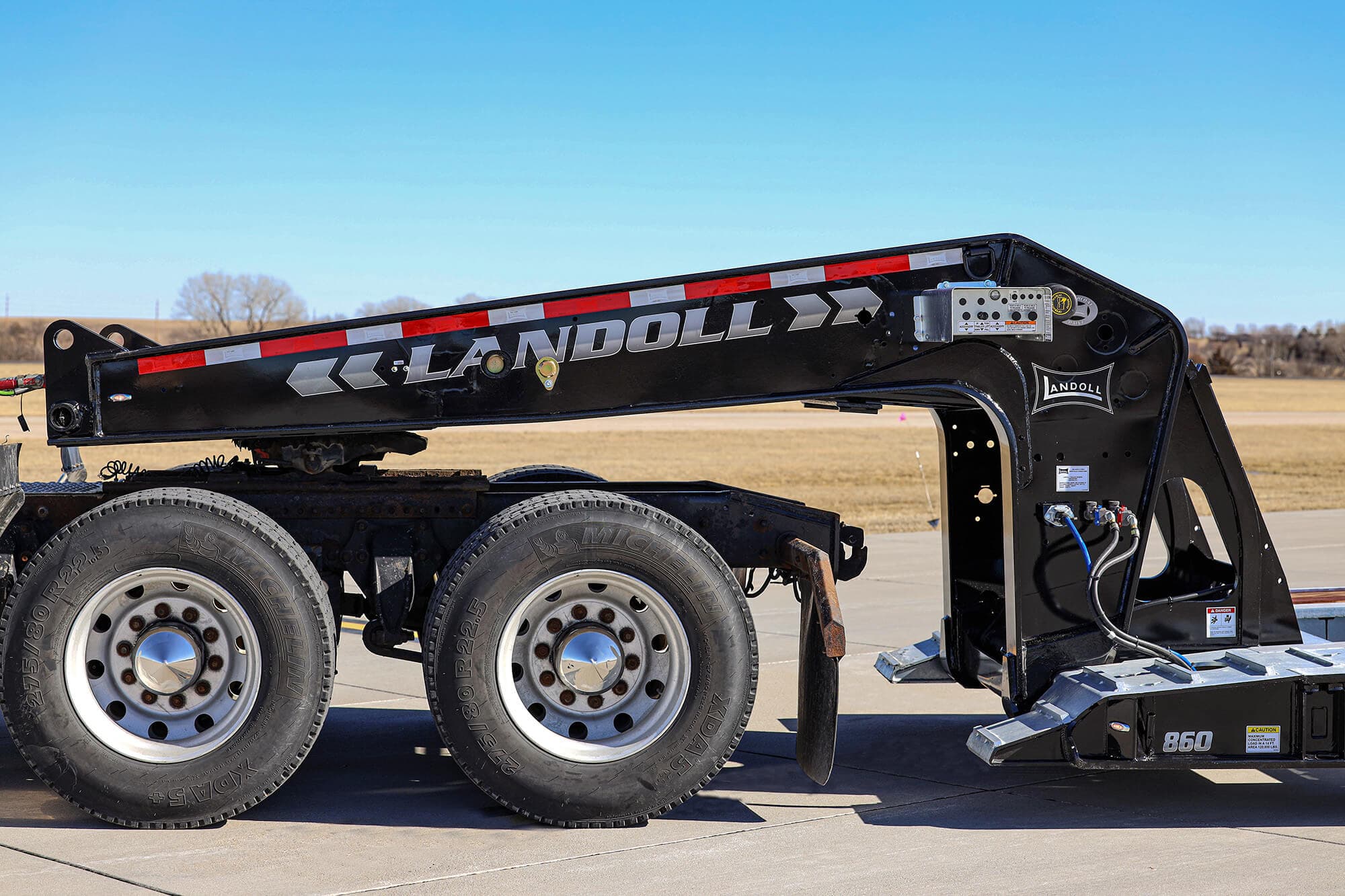

Gooseneck

Gooseneck
12′ 3″ Dual Drop-In Kingpin Settings

Running Gear

Suspension
SAF Air Ride, 25,000 lb. Capacity with Mechanical Ride Height Control Valve
Axles
(3) 25,000 lb. Axles Dual Tire, Oil Bath Bearings, 54″ Spacing on 53′; Auto Slack Adjusters – All Axles / Drum Brakes
Brakes
16.5×7 Full Air / Spring Brakes on 3 Axles ABS, 4S2M
Tires
275/70R 22.5 LRH Continental
Wheels
Hub Pilot / Steel Outboard Brake Drums
Wheels – 22.5 Tires
Polished Aluminum Machined Aluminum Dura-Bright Aluminum Black Available Upon Request

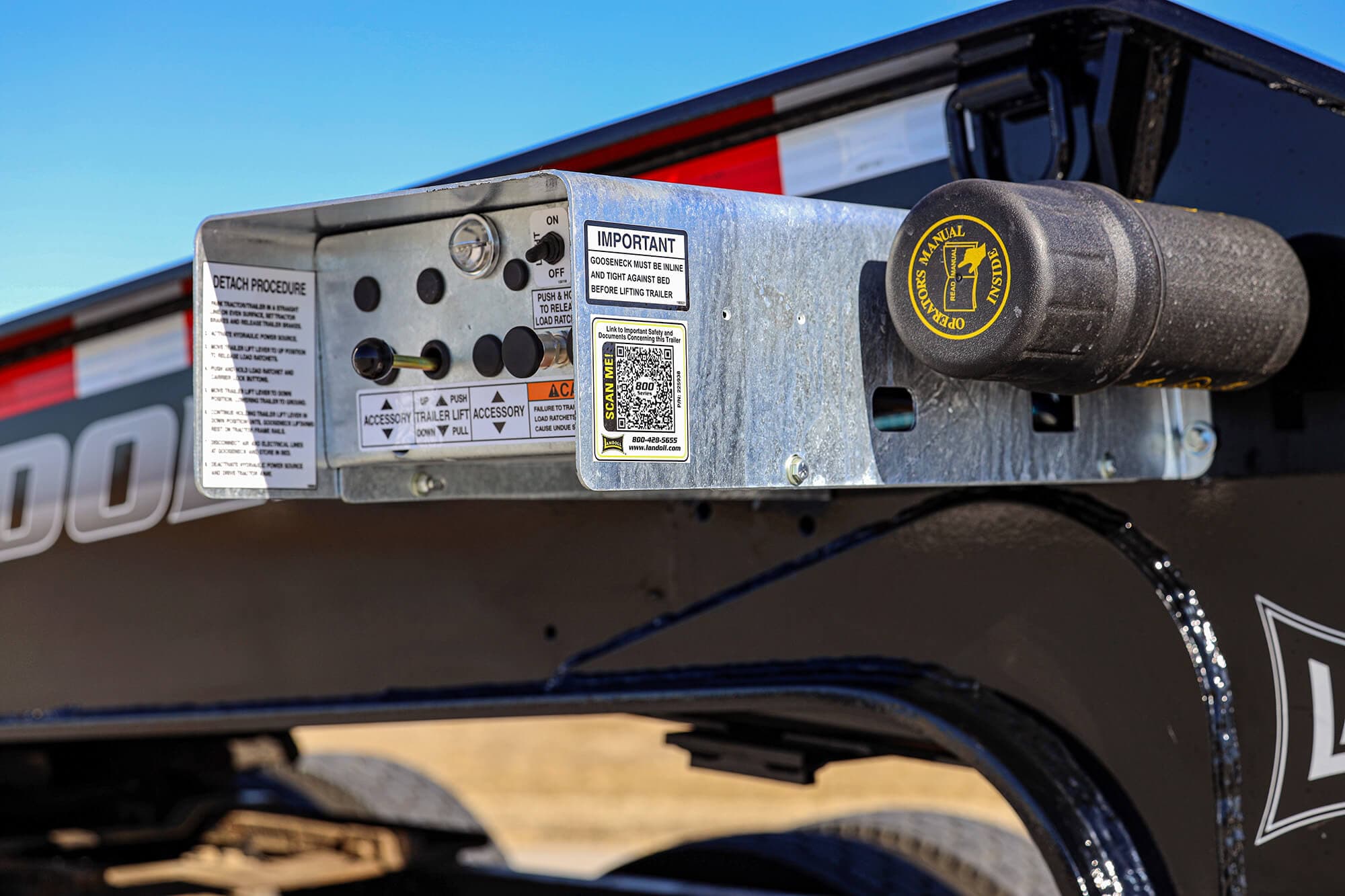

Hydraulics

Hydraulic Hook Up
2,500 PSI – 20 GPM at Controls, 50 GPM Max

Electrical

Air / Electrical
Glad Hand / 7-Way Receptacle
Lights
Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
Wiring Harness
Industry Best Grote Xtreme Harnessing (7-year warranty)

Finish

Finish
400°F Bake / Steel Grit Shot Blast to Bright Metal
Paint Over Galvanizing
Sides Only

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
