Landoll Trailers

950 Traveling Tail Trailer

Features

Capacity
50 ton
Axles
2
Deck height
38 in

Overview

From Landoll Trailers

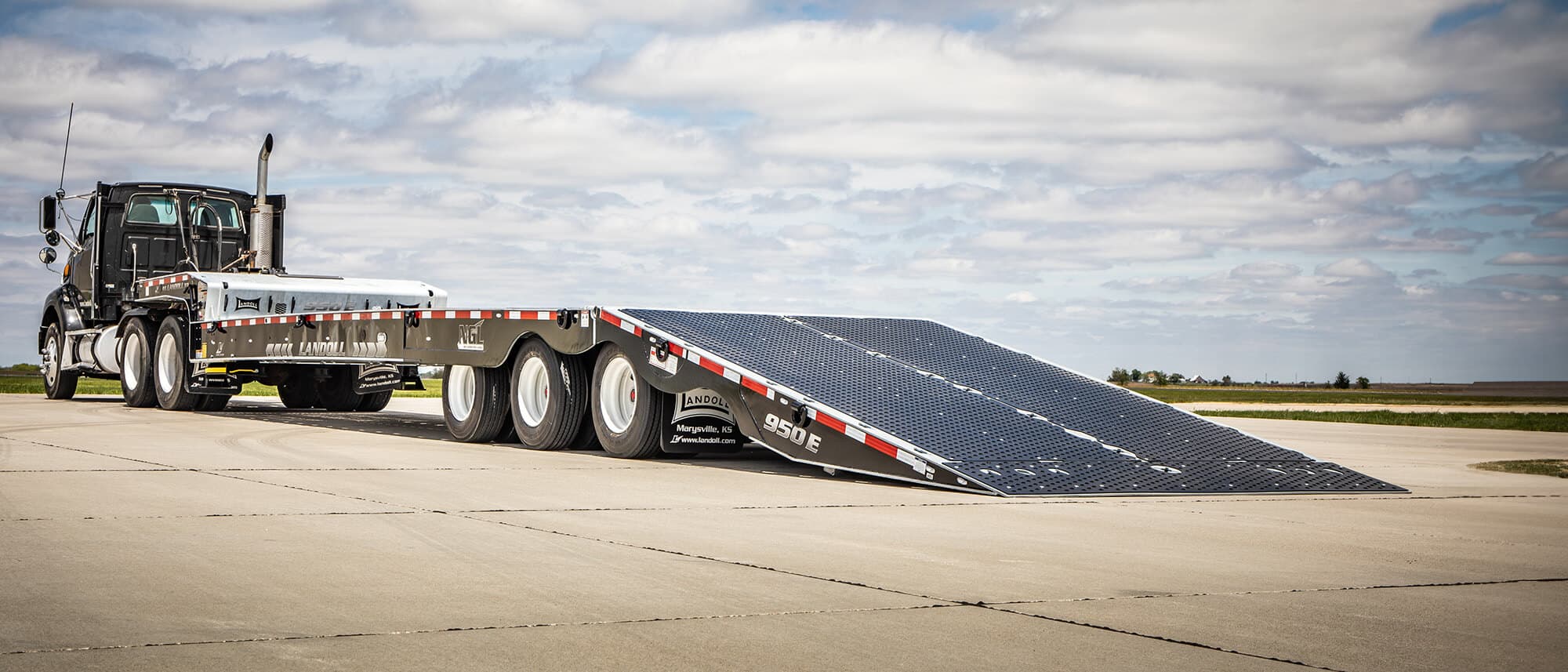

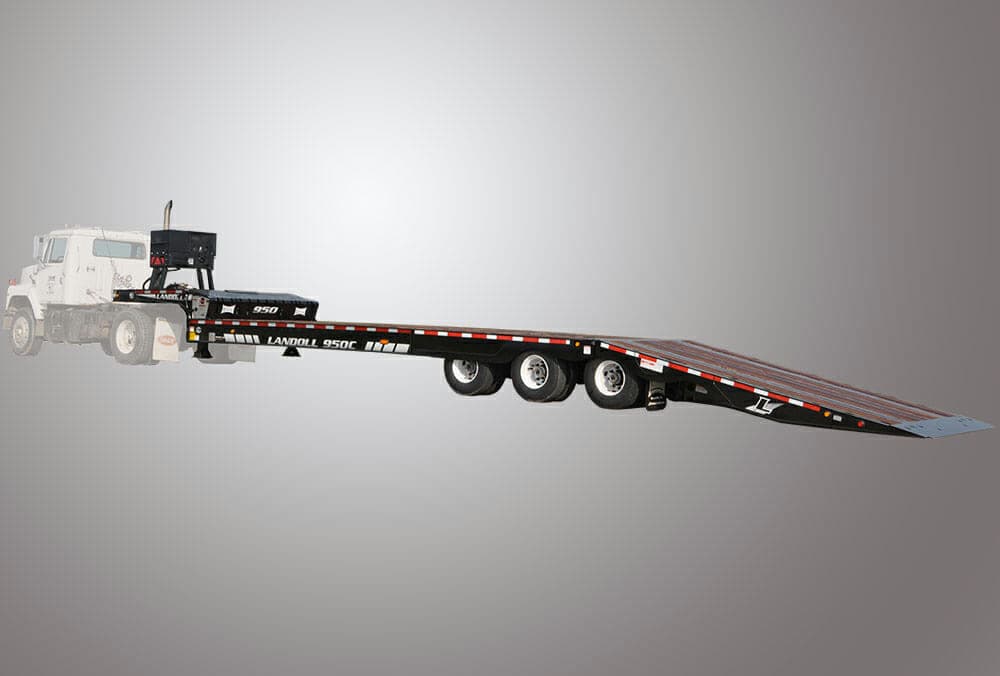

The 950 Traveling Tail Trailer has 50-ton capacity and three 25,000 lbs axles. It offers tail lengths of 12′ and 15′, and overall lengths of 45′, 48′ and 51′. It includes the same rugged four beam construction and other outstanding features of the 900 Series – standard powder coat paint, stable rigid dock arm, 24,000 lbs tail-lifting capacity and a centralized grease system. Landoll is the only trailer manufacturer to offer powder coat paint on large trailer frames. Quick, simple, safe operation and a longer wheelbase that increases payload. A 15′ tail reduces the load angle to a low 11°. Frames are steel shot blasted in preparation for the TGIC polyester powder coat paint finish standard on 900 E-Series trailers. The tail can raise and lift 24,000 lbs up to 57″ dock height. The 900 Series trailers are backed by a 5-year structural warranty. The low-load tail angle ensures easy clearance for loading low-sitting equipment, providing seamless loading capabilities. The hydraulic control allows for efficient and convenient loading and unloading operations, all managed through a single control point. Apitong Wood Covered Tail Square Stake Pockets on 16″ Centers (6) Double Keyhole Chain Slots on Tail (2) D-Rings Lower Slope at Deck Center Deck Keyholes on Tail * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Automatic Slack Adjusters Side Opening Toolboxes Lower Deck Bolt-On Lockable Toolbox 245/70R 17.5 Michelin X Multi T LRH 255/70R 22.5 Double Coin 255/70R 22.5 Michelin (Standard Colors Only) * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart

Specifications

Capacity

Capacity*
50 Ton (100,000 lbs.)
Estimated Base Weight
19,890 lbs. (51′) +/-3%
Tail Lifting Capacity
24,000 lbs.

Dimensions

Deck Rating
70,000 lbs. in 10′
Swing Clearance
84″
Deck Width
102″
Loaded Deck Height
38″
Loaded Ground Clearance
20″
Decking
1-3/8″ Nominal Apitong Wood (Lower Deck) Apitong Wood Covered Tail

Frame

Main Frame
Fabricated 100,000 PSI Yield 4-Beam Design
Wet Kit for Tractor (Includes 30 Gallon Steel Tank)
Shipped loose with trailer or factory installed

General

Crossmembers
4″ Junior I-Beam and 3″ Junior I-Beam on 8″ Centers
Slope Drop
90°
Parking Stands
Jost Two Speed Landing Gear
Pin Setting
18″
Toolbox
Twin Upper Deck Mounted Top-Opening with Non-Weight Bearing Illuminated Lids
Tie Downs
Double Keyhole Chain Slot Square Stake Pockets on 16″ Centers (6) Double Keyhole Chain Slots on Tail (2) D-Rings Lower Slope at Deck Center Deck Keyholes on Tail
Features
Flat Approach Plate
Undercarriage
Centralized Grease System
Rims
17.5 x 6.75 Tubeless
Oil Seal Hubs
Internal Mated Assembly
Primer
Zinc Rich Primer
Powder Coat Color
White, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Blue
Decals
Hi-Visibility Reflective Package
Bulkhead
16″/24″ 2 Position 48″ x 102″ Mesh
Bulkhead Wings
Steel Wings (Powder Coat Black) Aluminum Wings
D-Rings
Flush Mounted Bolt-On at Winch Recessed Mounted
Cable Roller Guide
4-Way Rollers Pivoting
Toolboxes
Load Bearing, Self-Supporting, Top Opening Toolboxes Side Opening Toolboxes Lower Deck Bolt-On Lockable Toolbox
Traction Bars for Tail
Weld On 12′ Tail Weld On 14′ Tail Weld On 15′ Tail
Pull-Out Step
Drivers side curb side
Model
Capacity*
950E-45-12
50 Ton
950E-48-12
50 Ton
950E-48-15
50 Ton
950E-50-12
50 Ton
950E-52-14
50 Ton
950E-51-15
50 Ton
950E-53-15
50 Ton
Note
All Bulkhead options require the 48″ X 102″ Bulkhead Bulkhead Wings Steel Wings (Powder Coat Black) Aluminum Wings Aluminum LED Light Bar (Stop, Turn, and Taillights) with Chain Binder Rack Dual LED Work Lights Dual Class II Strobe Beacons Bolt-On Chain-Binder Rack Spare Tire Carrier Parking Stands Pin Drop Tie Downs D-Rings Flush Mounted Bolt-On at Winch Recessed Mounted Winch & Accessories Winch 20K Winch (Braden) 12K Delete Standard Winch 20k or 30K Winch (Warn) Winch Guard Cable Roller Guide 4-Way Rollers Pivoting Wireless Remote Control Six Function Deck & Accessories Toolboxes Load Bearing, Self-Supporting, Top Opening Toolboxes Side Opening Toolboxes Lower Deck Bolt-On Lockable Toolbox Traction Bars for Tail Weld On 12′ Tail Weld On 14′ Tail Weld On 15′ Tail Bolt-On Landoll Traction Plate over Approach Keyhole Tie Downs for Center Main Deck Pull-Out Step Drivers side curb side Suspension & Undercarriage Digital Scale System Galvanized Bumper Hydraulic Power Source Wet Kit for Tractor (Includes 30 Gallon Steel Tank) Shipped loose with trailer or factory installed Hydraulic Quick Coupler Kit (1 male, 1 female) Polished Aluminum Hydraulic Tank, (19″W x 24D”) (Side mount) Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover Upper Deck Mounted Under Deck Mounted Tires & Rims 17.5 Machined Aluminum Wheel (Priced per tire) 17.5 Polished Aluminum Wheel (Priced per tire) 22.5 Machined Aluminum Wheel (Priced per tire) 22.5 Polished Aluminum Wheel (Priced per tire) Tires 235/75R 17.5 Double Coin 245/70R 17.5 Michelin X Multi T LRH 255/70R 22.5 Double Coin 255/70R 22.5 Michelin Spare Tires Available with Rim of Choice PSI Tire Inflation System Hubometer Paint & Special Hot Dip Galvanizing Paint Over Galvanizing Sides Top Surface (Standard Colors Only) Wet Paint Colors Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow Powder Coat Paint only available with Non-Galvanized Trailers Powder Coat Paint Colors Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow Special Paint: Contact Factory Specifications Model Capacity* Base Weight Length Tail Length Deck Axles Tires & Ply Ratings 950E-45-12 50 Ton Consult Factory 45′ 12′ 102″ x 35’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin 950E-48-12 50 Ton 20,695 lbs. (+/- 3%) 48′ 12′ 102″ x 38’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin 950E-48-15 50 Ton Consult Factory 48′ 15′ 102″ x 38’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin 950E-50-12 50 Ton Consult Factory 50′ 12′ 102″ x 40’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin 950E-52-14 50 Ton Consult Factory 52′ 14′ 102″ x 40’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin 950E-48-15 50 Ton Consult Factory 48′ 15′ 102″ x 41’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin 950E-51-15 50 Ton 21,750 lbs. (+/- 3%) 51′ 15′ 102′ x 42’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin 950E-53-15 50 Ton Consult Factory 53′ 15′ 102″ x 43’ 3″ 3 (12) 235/75R 17.5 LRJ Double Coin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.Specifications subject to change without notice.Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements.Line Drawing (PDF)GalleryPress O for more optionsClick for sound
Certifications
Cage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.

Gooseneck

Hitch
Fifth-Wheel Kingpin

Loading

Load Angle
11° with 15′ Tail

Running Gear

Suspension
SAF Air Ride RLU228, 22,500 lbs. Capacity with Manual Dump Valve
Axles
(3) 25,000 lbs. Dual Tire Axles, Oil Bath Bearings Outboard Brake Drum Automatic Slack Adjusters
Brakes
12.25 x 7.5 Full Air / Spring Brakes ABS 4S2M Center Axle Indirect
Tires
235/75R 17.5 LRJ Continental
Wheels
Steel Hub Pilot

Hydraulics

Hydraulic Hook Up
Quick Couplers / 2,500 PSI – 20 GPM at Controls, 50 GPM Max
Hydraulic Winch
Upper Deck 12,000 lbs. Worm Gear 85′ of 1/2″ Cable Wear Plate
Hydraulic Valve Body
Rexroth
Winch
20K Winch (Braden) 12K Delete Standard Winch 20k or 30K Winch (Warn)

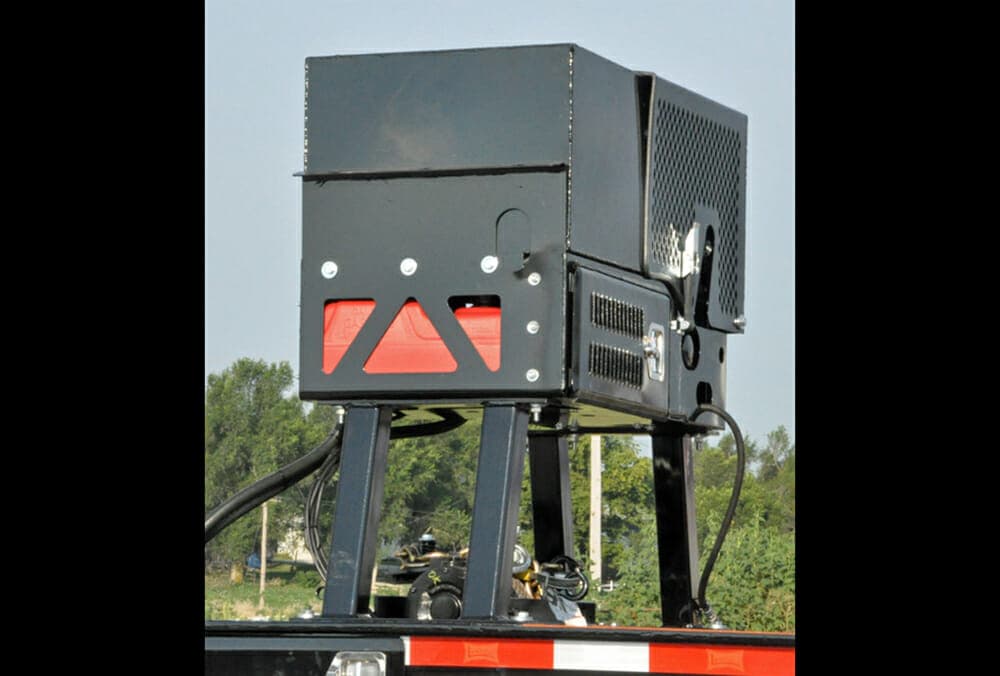

Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover
Upper Deck Mounted Under Deck Mounted

Electrical

Air / Electrical
7 Way Receptacle
Lights
Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty
Wiring Harness
Industry Best Grote Xtreme Harnessing (7-year warranty)

Finish

Finish
Steel Grit Shot Blast to Bright Metal
Paint Over Galvanizing
Sides Top Surface (Standard Colors Only)
Wet Paint Colors
Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow
Powder Coat Paint Colors
Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow

Controls

Wireless Remote Control
Six Function

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
