Alpha HD Trailers

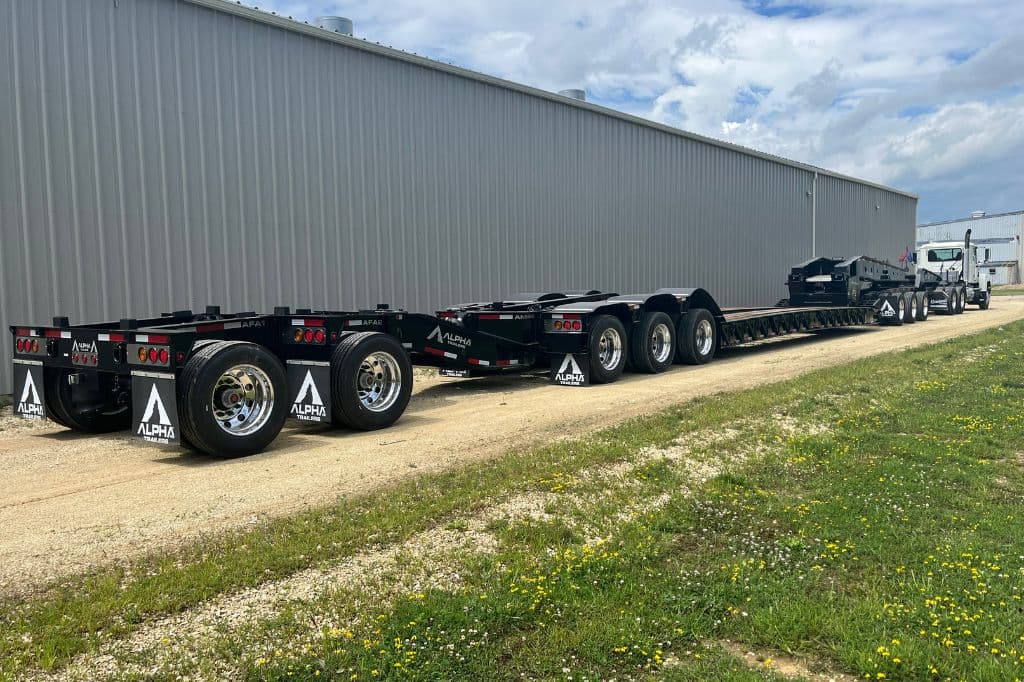

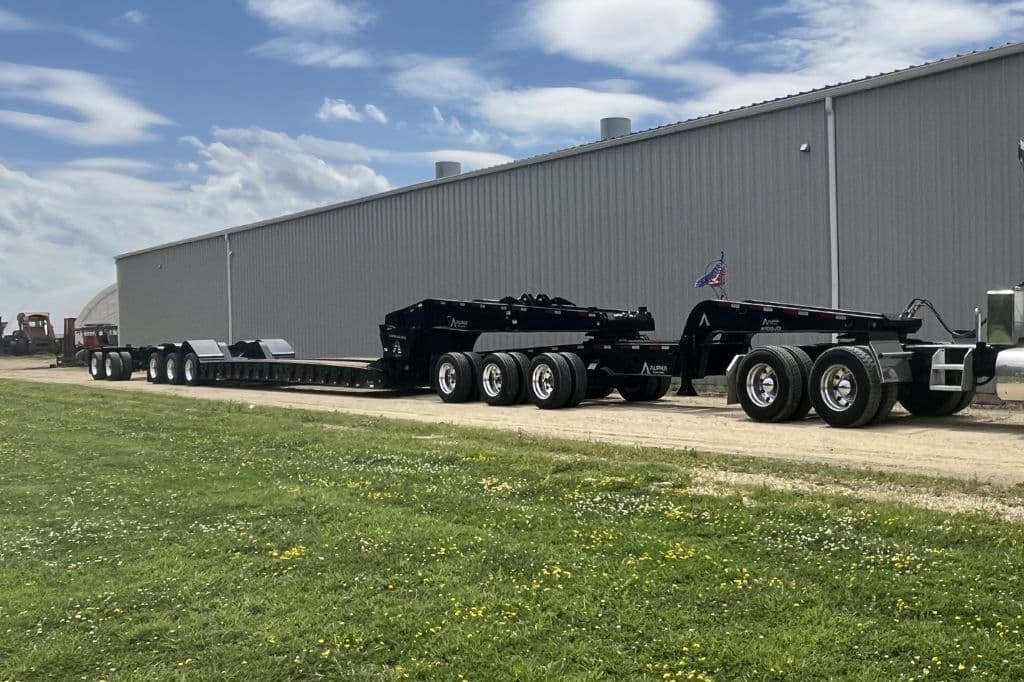

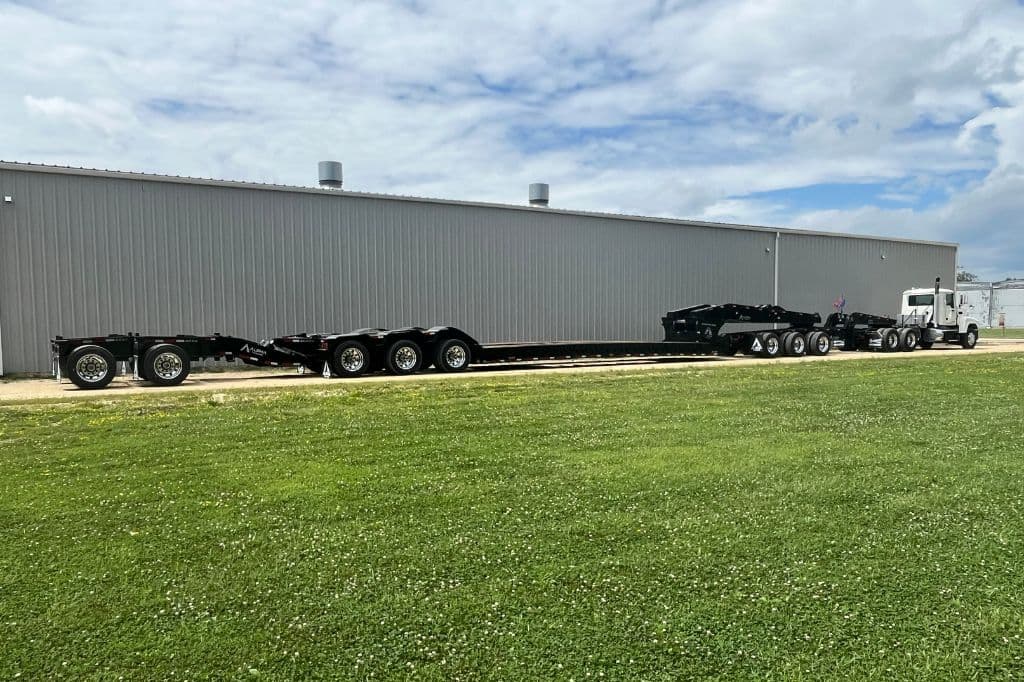

A150HDG-SF2 Hydraulic Detachable Lowboy
- Capacity
- 75 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 24 in
Overview
From Alpha HD Trailers
The Alpha HD A150HDG-SF2 construction trailer is our 150,000# payload, hydraulic detachable gooseneck, 3+2 capable lowboy. Some of the standard features the A150HDG-SF2 comes with incudes a scraper style HDG neck with 2 KP settings and 5 ride height positions, 108” flip neck, 1 7/8” Apitong with 12” crossmember spacing, chain drops and upper flange reinforcing, bolt on wheel cover capability, full suspension controls, stainless steel light pkg., 3rd air lift, and T1 steel construction. Other capacities and dimensions available. For a full list of specs please contact us.
Specifications
Dimensions
- OAL
- 55' 7"
- Deck Length
- 26'
- Loaded deck height
- 24"
- Loaded ground clearance
- 6"
Capacity
- Capacity
- 150,000# in 12' Concentrated
- Axle Capacity
- (3) 25,000#
Gooseneck
- Swing
- 122"/96"-230" with 108" Flip Neck
- Fifth Wheel Height
- 51"
Running Gear
- Axle Spacing
- 54"
- Suspension
- Ridewell Air
- Tires
- 255/70R22.5
- Flip/Stinger Axle Connections
- 3+2 Capable
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
