Talbert Manufacturing

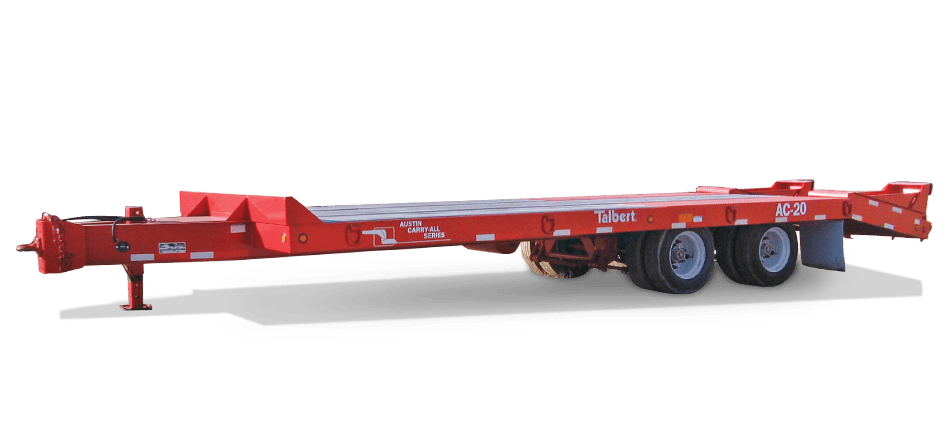

AC-20
- Deck height
- 800 in
Specifications
Capacity
- 40,000 lb. Capacity
- 1-1/2 in. Apitong on Main Deck and Between Mainbeams of Beavertail tons
General
- Adjustable 3 in. Pintle Eye
- 1/4 in. Floor Plate over Wheel Wells
- Safety Chains with Hooks
- Tires: 215/75R17.5 (H)
- 15,000 lb. Single Speed Drop Leg
- Wheels: Steel Disc Hub Piloted
- Lockable Tool Box
- Air Brakes with 2S1M ABS
- 8 in. Headboard
- Hutch Spring Suspension
- Self-Cleaning Spring-Assisted Ramps
- Estimated Weight: 8,500 lbs.
Dimensions
- 24 ft. 0 in. Deck (19 ft. 0 in. Flat; 5 ft. 0 in. Beavertail)
- 3 Lash Rings Each Side
- 32-3/4 in. Loaded Deck Height
- Valspar R-Cure 800 Red or Black Paint
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
