Aspen Custom Trailers

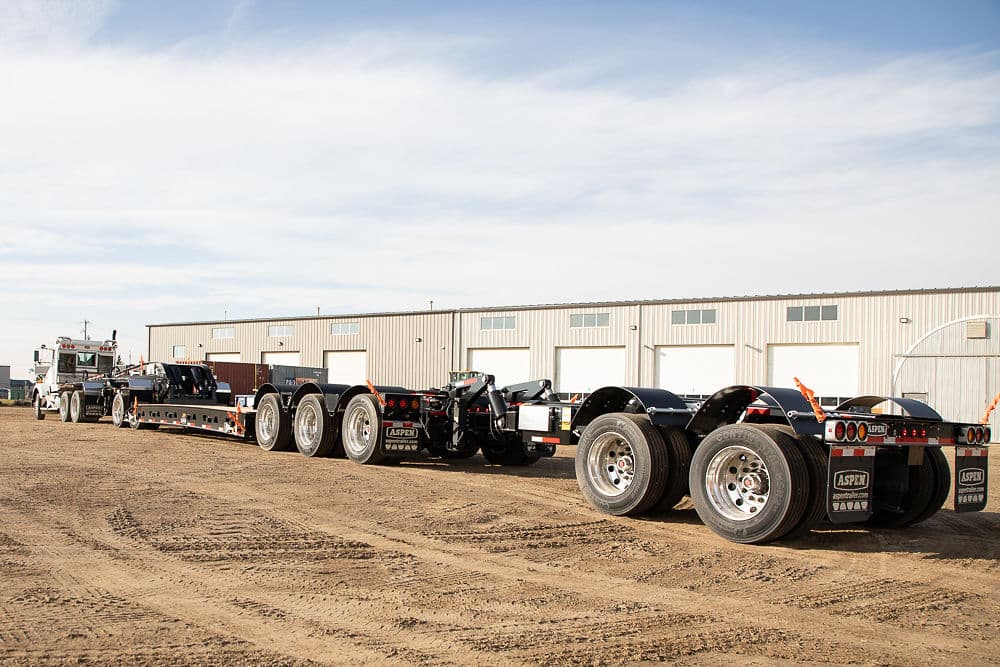

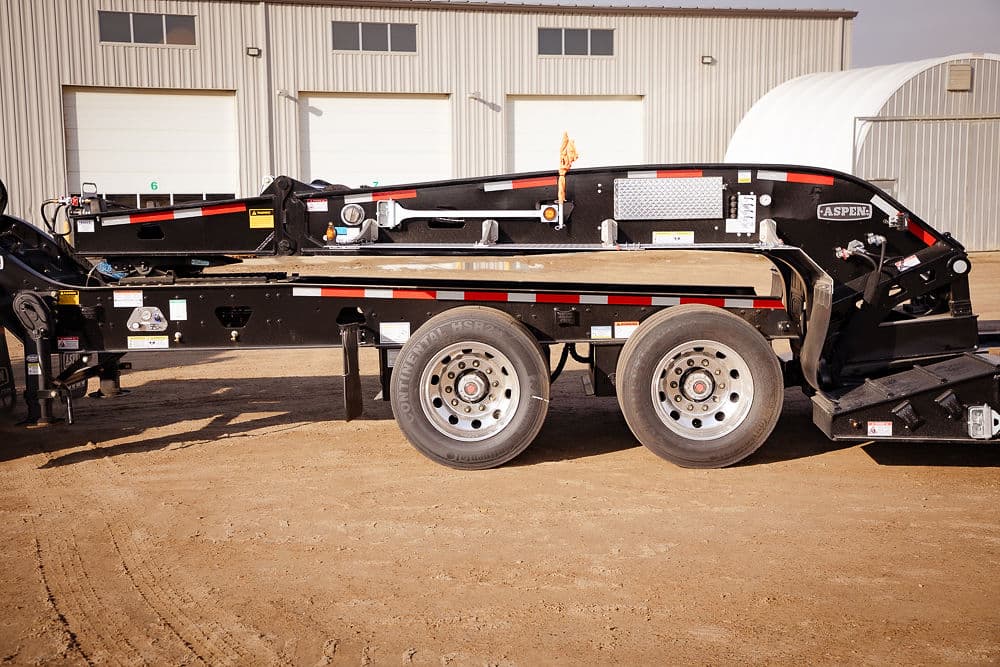

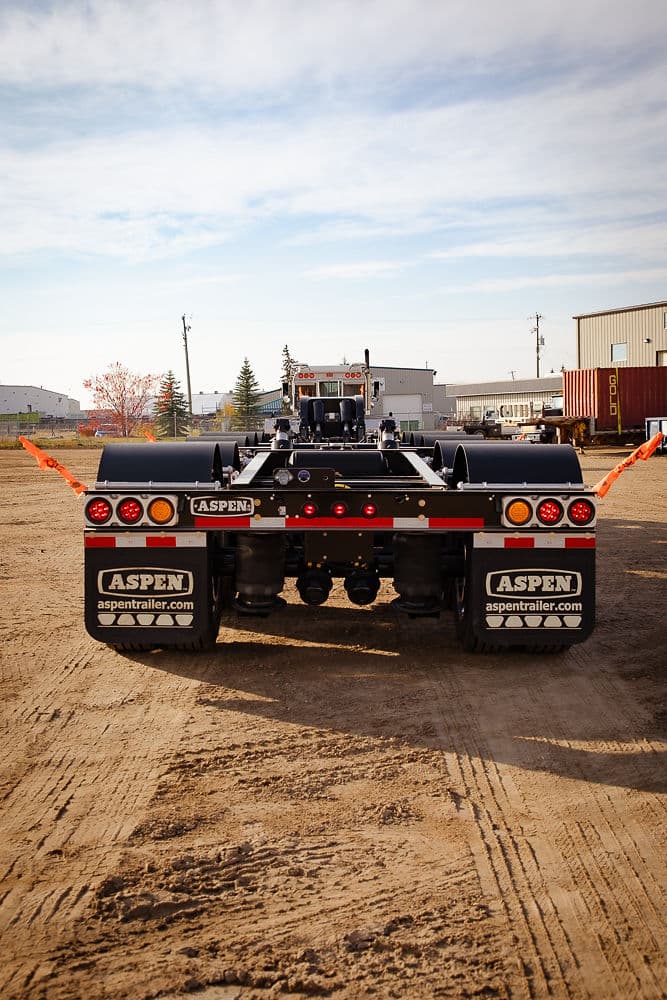

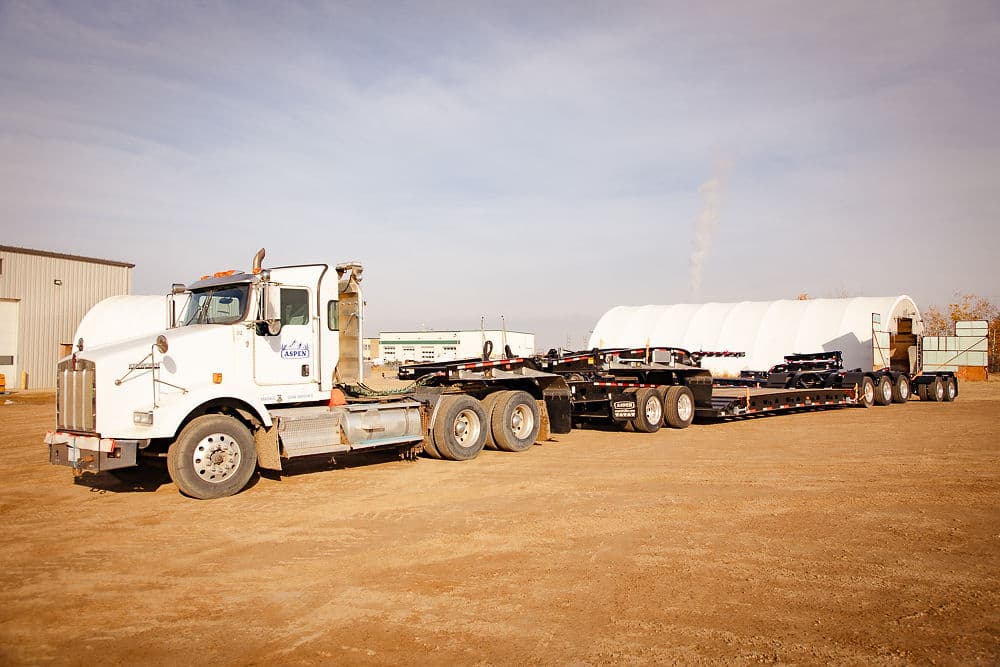

Aspen E-TRANSPORTER
e-series 65 ton triaxle HG transporter
- Capacity
- 65 ton
- Deck length
- 23.5 ft
- Deck height
- 23 in
Overview
From Aspen Custom Trailers
This Aspen E-Series
Specifications
Dimensions
- Load Capacity
- 130,000lbs (58,987kg) in 15′-0″ length
- Width Overall
- 8’-6” nominal
- Track Width
- 8’-6” nominal overall tire width
- Length Overall
- 53’-0”
- Deck Length
- 23’-6”
- Wheelbase
- 41’-9”
- Tractor Clearance
- 88”, 112” and 168” with flip
- Fifth Wheel Height
- 50”
- Loaded Deck Height
- 23”
- Loaded Ground Clearance
- 6”
Air/electrical
- Axles
- Steel hub, Cast drum c/w Rear axle air lift
- Wheels
- Machined & Polished Aluminum
- Tires
- 275/70 R 22.5 Highway Radials
- Suspension
- 75,000 lbs Air Ride with Shock straps
Paint
- Paint Code
- Required Upon Authorization
- Axles
- Steel hub, Cast drum c/w Rear axle air lift
- Wheels
- Machined & Polished Aluminum
- Tires
- 275/70 R 22.5 Highway Radials
- Suspension
- 75,000 lbs Air Ride with Shock straps
Included optional equipment
- Dual source hydraulics
- Wet kit and Power pack
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
