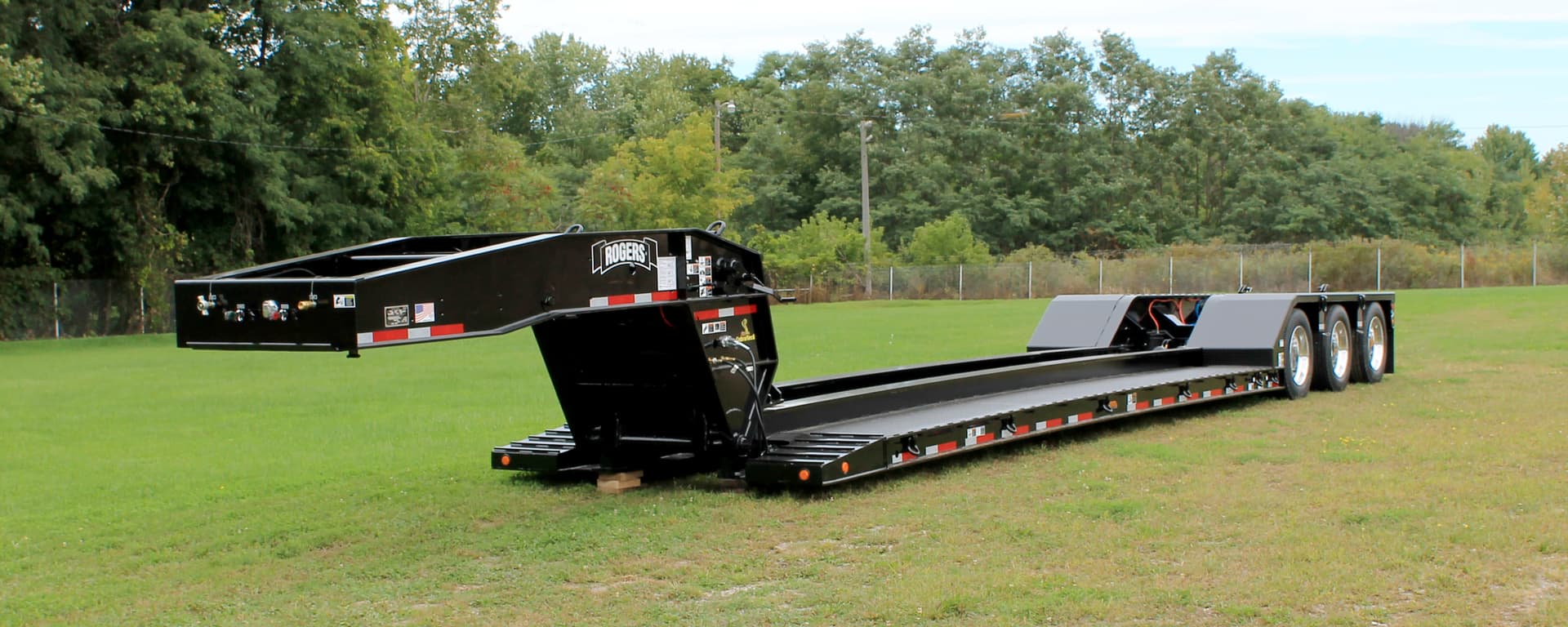

Rogers Brothers
CN55DS 55-Ton Detachable Gooseneck
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 15 in
Overview
From Rogers Brothers
The ROGERS CobraNeck Series CN55DS is a severe-duty 55-ton capacity lowbed semi-trailer that features drop side deck for the lowest possible loaded deck height and the "CobraNeck" gooseneck which adds readily adjustable deck heights along with ease of operation. The trailer is designed with a full capacity load concentration in one half the deck length for many years of worry free operation. The drop side deck features a 15" loaded height and tapered front slope for easy loading and unloading of equipment. The full-depth "Bucket Pocket" at the rear of the platform deck facilitates hauling of excavators and similar machinery. This model is also structurally designed to be used with a removable/flip 4th axle when required. Standard features: CobraNeck gooseneck; Hydraulic gooseneck jack with shoe; Hydraulic power source: Tractor PTO; Four-beam cambered design with 15" loaded drop side deck height; 14" wide flange main carrying beams made with T1 (A514) flanges; Exclusive "Croucher"® low, tapered front with concealed beam hooks; 1/4" tread plate steel deck; Total (28) heavy-duty removable side brackets; Total (12) bent lashing D's (6 each side of deck); Full-depth "Bucket Pocket" at rear of deck; Air lift axle · 3rd axle; LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black polyurethane finish coat.
Specifications
Capacity
- Capacity
- 55.0-ton
- Concentrated Load
- 110,000-pounds
- Concentrated Load Length
- 13'-0"
Dimensions
- Deck Length
- 26'-0"
- Loaded Deck Height
- 15"
- Deck Width
- 8'-6"
- Deck Style
- Drop Side
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole hub piloted steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
