Rogers Brothers

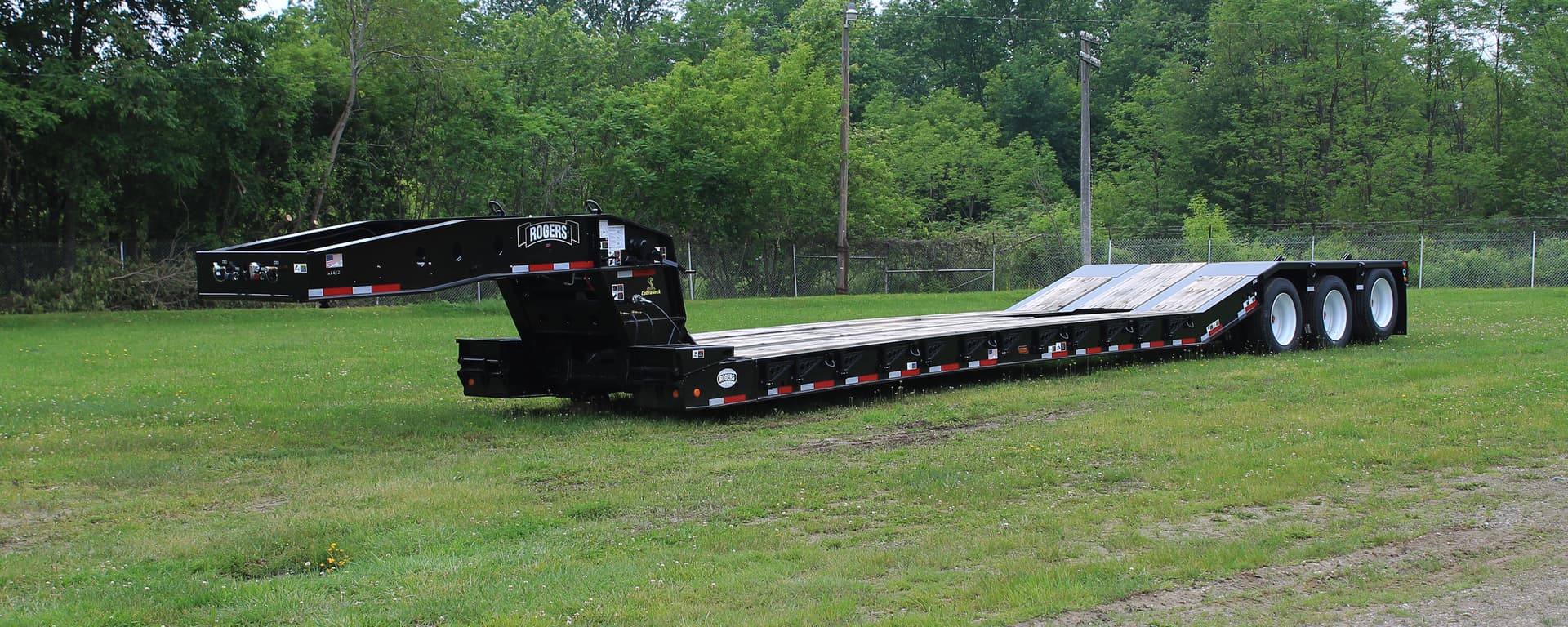

CN55GR 55-Ton Detachable Gooseneck
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 20 in
Overview
From Rogers Brothers
The ROGERS CobraNeck Series CN55GR is a severe-duty 55-ton capacity lowbed semi-trailer that features the exclusive ROGERS "Gentle Riser" deck for superior hauling versatility and the "CobraNeck" gooseneck which adds readily adjustable deck heights along with ease of operation. The trailer is designed with a full capacity load concentration in two-thirds the deck length for many years of worry free operation. The deck features a 20" loaded height and the exclusive "Croucher"® front end for easy loading and unloading of equipment. The full-depth "Bucket Pocket" at the rear of the platform deck facilitates hauling of excavators and similar machinery. The "Gentle Riser" feature provides a machine-friendly 16-degree incline from the platform deck to the additional loading space over the rear of the trailer. This model is also structurally designed to be used with a removable/flip 4th axle when required. Standard features: CobraNeck gooseneck; Hydraulic gooseneck jack with shoe; Hydraulic power source: Tractor PTO; Four-beam cambered design with 20" loaded deck height; 14" wide flange main carrying beams made with T1 (A514) flanges; Exclusive "Croucher"® low, tapered front with concealed beam hooks; "Gentle Riser" deck features 16-degree incline to rear loading area; 1 3/4" air-dried oak decking: No center boards; Total (24) removable swinging side brackets; Total (16) bent lashing D's (8 each side of deck); Full-depth "Bucket Pocket" at rear of deck; Loadable rear deck area with oak decking between mainbeams and reinforced steel tread-plate wheel covers; Air lift axle · 3rd axle; LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat.
Specifications
Capacity
- Capacity
- 55.0-ton
- Concentrated Load
- 110,000-pounds
- Concentrated Load Length
- 15'-0"
Dimensions
- Deck Length
- 24'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Gentler Riser
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
