Rogers Brothers
CN90PL-MOD 90-Ton Detachable Gooseneck
- Capacity
- 90 ton
- Axles
- 3
- Deck length
- 28 ft
- Deck height
- 26 in
Overview
From Rogers Brothers

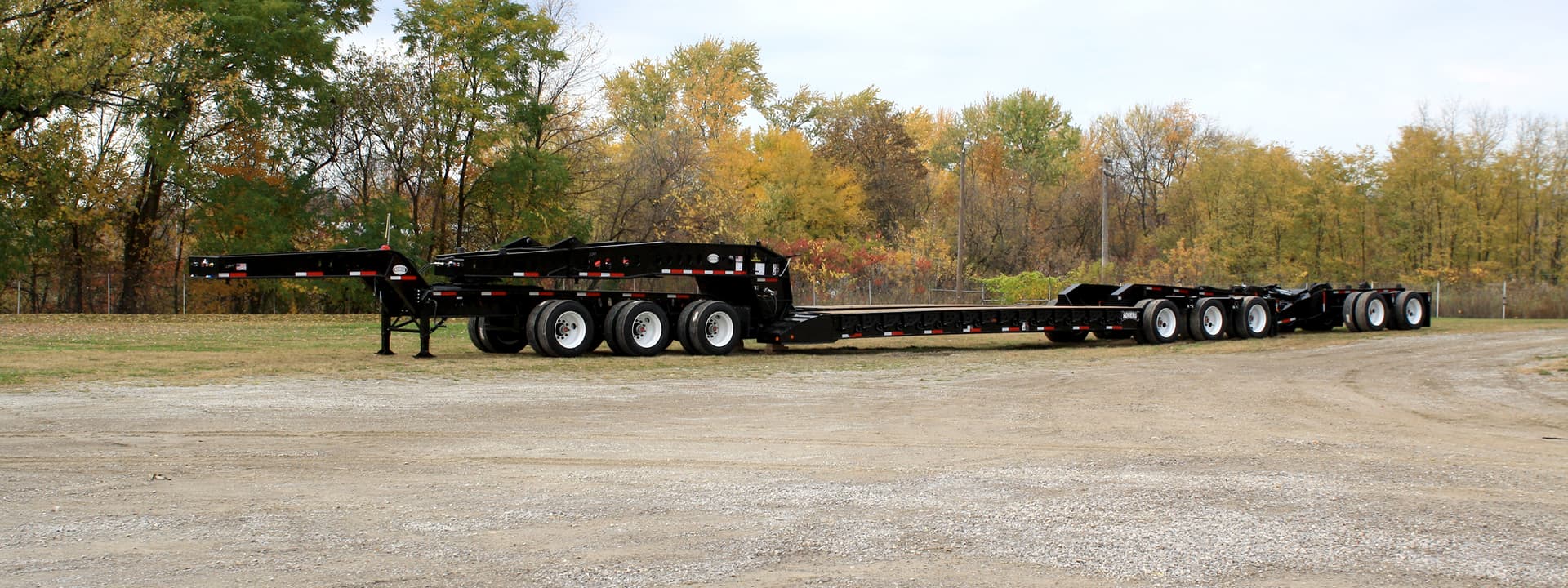

The ROGERS CobraNeck 90-ton modular trailer epitomizes versatility in the specialized heavy-haul trailer market. Shown as a 3 + 3 + 2 configuration with a 28'-0" long x 10'-0" wide platform deck, detachable tri-axle rear bogie, Nitro-Stinger, removable 4th & 5th axles and a 45-ton tri-axle jeep dolly. The capacity of the trailer in this configuration is 70-tons in 12'-0" of the deck in a 2-point load. Close-coupled (without the Nitro-Stinger) the trailer capacity is 90-tons in 16'-0" of the deck in a 2-point load. Standard features: CobraNeck gooseneck; 2-position kingpin; 140" and 128" swing clearances; Dual leg hydraulic gooseneck jack with shoe; Hydraulic power source: Tractor PTO; 72" Gooseneck Extender for use with JD45 tri-axle jeep dolly; Four-beam cambered modular platform deck, 10'-0" wide x 28'-0" long; 26" loaded deck height with 6" ground clearance; Fixed tapered ramp with grouser bars on front of platform deck; Side beam flange reinforcing on 1st 6'-0" of deck; 2 3/4" air dried oak flooring; no center boards; Total (30) swinging removable side brackets; Total (18) bent lashing D's (9 each side of deck); "Bucket Pocket" with last (3) cross members lowered between main beams at rear of deck; Pin-and-paddle style detachable rear frame; "Boom Trough" with "lowered cross members between rear frame beams; Trunnions between wheels with a lashing D on each end; Axle air lift on 3rd axle; Rear frame prepared for removable 4th and/or 5th axles; Removable 4th axle assembly; Removable 5th axle assembly; Self-equalizing Nitro-Stinger; 275/70R22.5 (H) Yokohama low profile radial tires on 22.5 x 8.25 hub piloted wheels (aluminum outer/steel inner); Air brakes, 16 1/2" x 7" shoes/drums: Premium 4S/2M Antilock braking system (ABS); Air lift axle · 3rd axle; Removable/flip 4th axle assembly with air lift; Air dump valve; LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat.
Specifications
Capacity
- Capacity
- 90.0-ton
- Concentrated Load
- 180,000-pounds
- Concentrated Load Length
- 16'-0"
Dimensions
- Deck Length
- 28'-0"
- Loaded Deck Height
- 26"
- Deck Width
- 10'-0"
- Deck Style
- Platform
Running Gear
- Axles
- 3+2 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole hub piloted steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Specialized
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
