Rogers Brothers

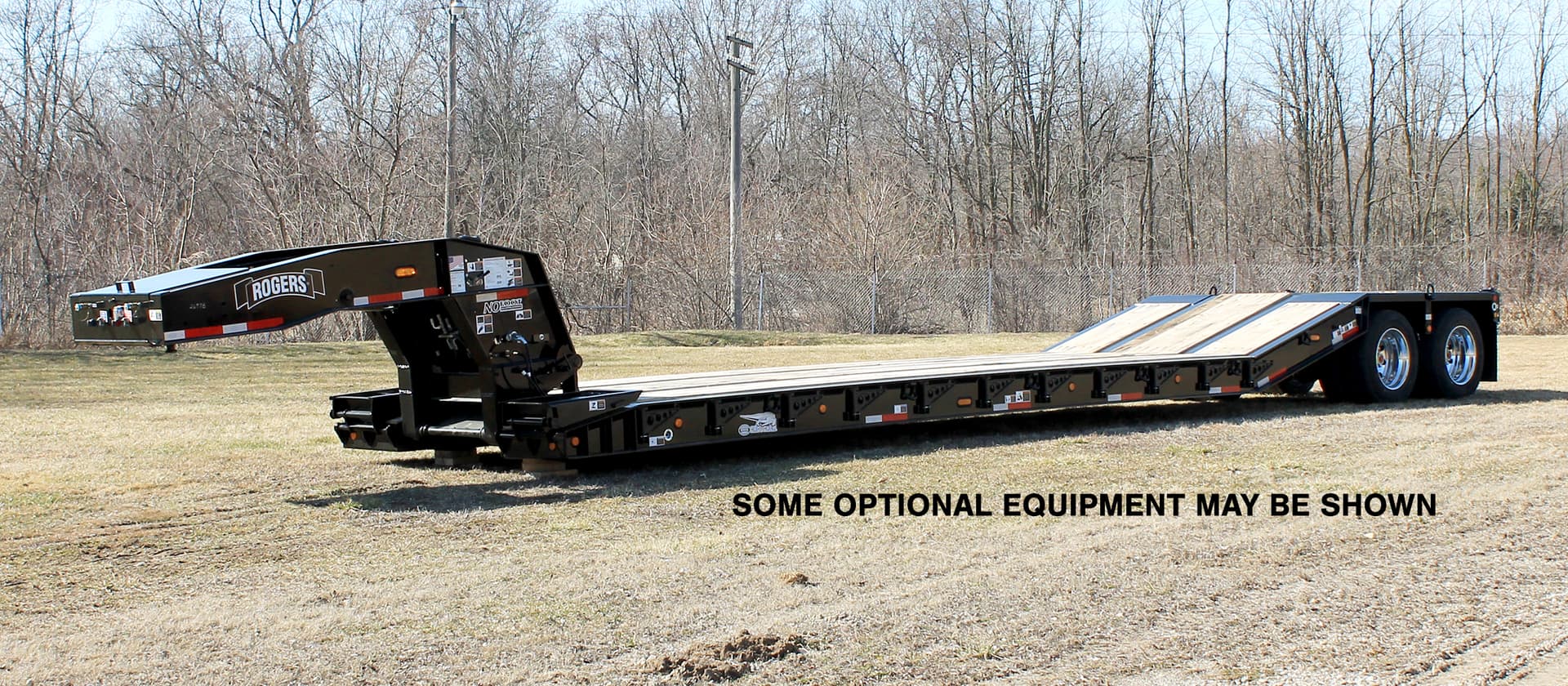

CR35GR 35-Ton Detachable Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 24 ft
- Deck height
- 20 in
Overview
From Rogers Brothers
The closest to a carry-all lowboy, the ROGERS CR35GR is built for pavers and rollers, but can haul excavators, bulldozers and other machines as well. The exclusive "Croucher" low front provides safe and stable loading; and the patented "No Foot" Direct-Push detachable gooseneck easily lifts the trailer. Standard features: Patented "No Foot" Direct-Push style gooseneck; Exclusive "Croucher" low, tapered front with concealed beam hooks; Front folding ramps; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Ultima deck design with 16" main beams and 12" side beams; Side beam flange reinforcing os first 6'-0" of deck; Full 2" air-dried oak decking; Center boards installed; Total (22) removable swinging side brackets; Total (12) bent lashing D's; 16º "Gentle Riser" includes:oak-covered riserReinforced 1/4" tread plate wheel coversOutriggers between wheels; oak-covered riser; Reinforced 1/4" tread plate wheel covers; Outriggers between wheels; Level rear extension with rear impact guard; US DOT-approved rubber-mounted LED lights with sealed wiring and 7-wire socket; Rogers Red or Black industrial enamel finish coat: (hover to see samples); Flag Holders.
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 15'-0"
Dimensions
- Deck Length
- 24'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Gentler Riser
Running Gear
- Axles
- 2 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
