Rogers Brothers
CR35RS 35-Ton Detachable Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 22 ft
- Deck height
- 23 in
Overview
From Rogers Brothers

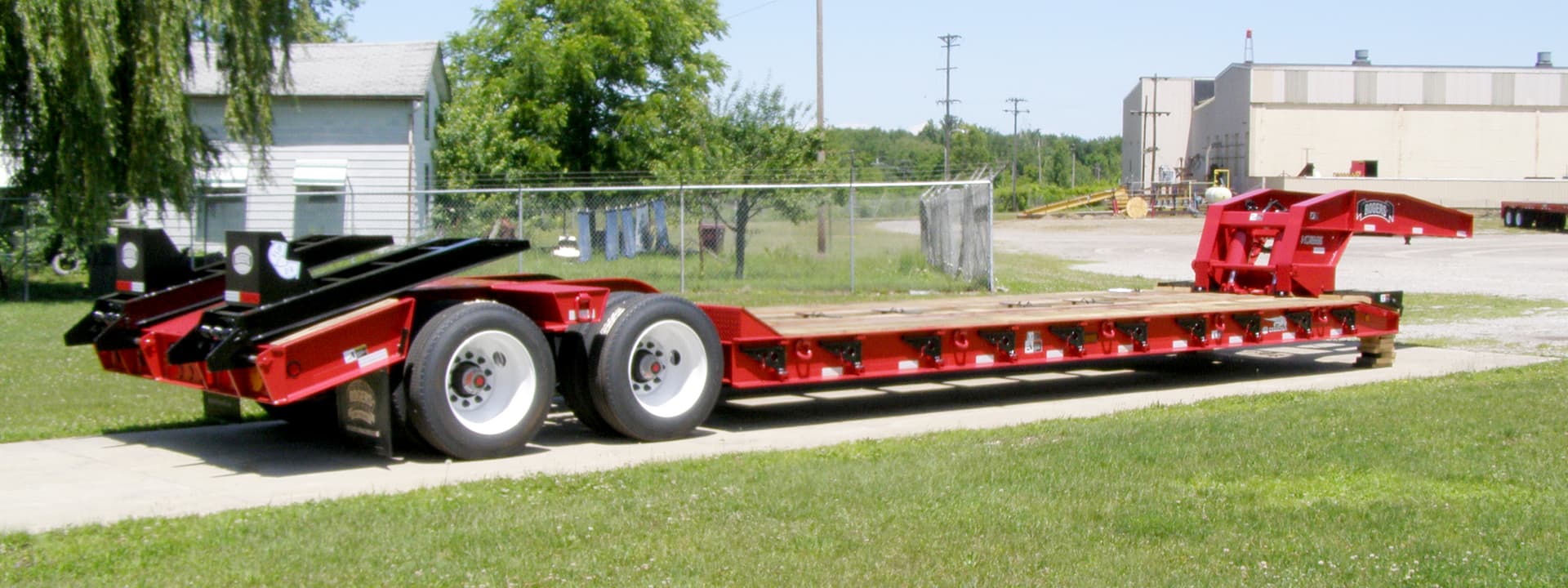

ROGERS CR35RS is 35-ton capacity lowboy trailer on air ride suspension with a beavertail, so it can be loaded from either the back or the front for maximum versatility. Pictured Option: Swinging side brackets, manual rear ladder-style ramps. Standard features: Patented "No Foot"® Direct-Push style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Exclusive "Croucher"® low, tapered front with concealed beam hooks; Side channel flange reinforcing of first 6'-0" of deck; Full 2" air-dried oak decking; no center boards; Total (20) side bracket bearings only; Total (10) bent lashing D's; Arch-type rear frame with sloped bridge ramps; Trunnions between wheels; Flag holders; Oak-covered beavertail with 14º slope, smooth plate between wheels; LED light package: rubber-mounted lights with sealed wiring and 7-wire socket; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 11'-0"
Dimensions
- Deck Length
- 22'-0"
- Loaded Deck Height
- 23"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 2 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front & Rear Loading
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
