Rogers Brothers
CR50 50-Ton Detachable Gooseneck
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 20 in
Overview
From Rogers Brothers

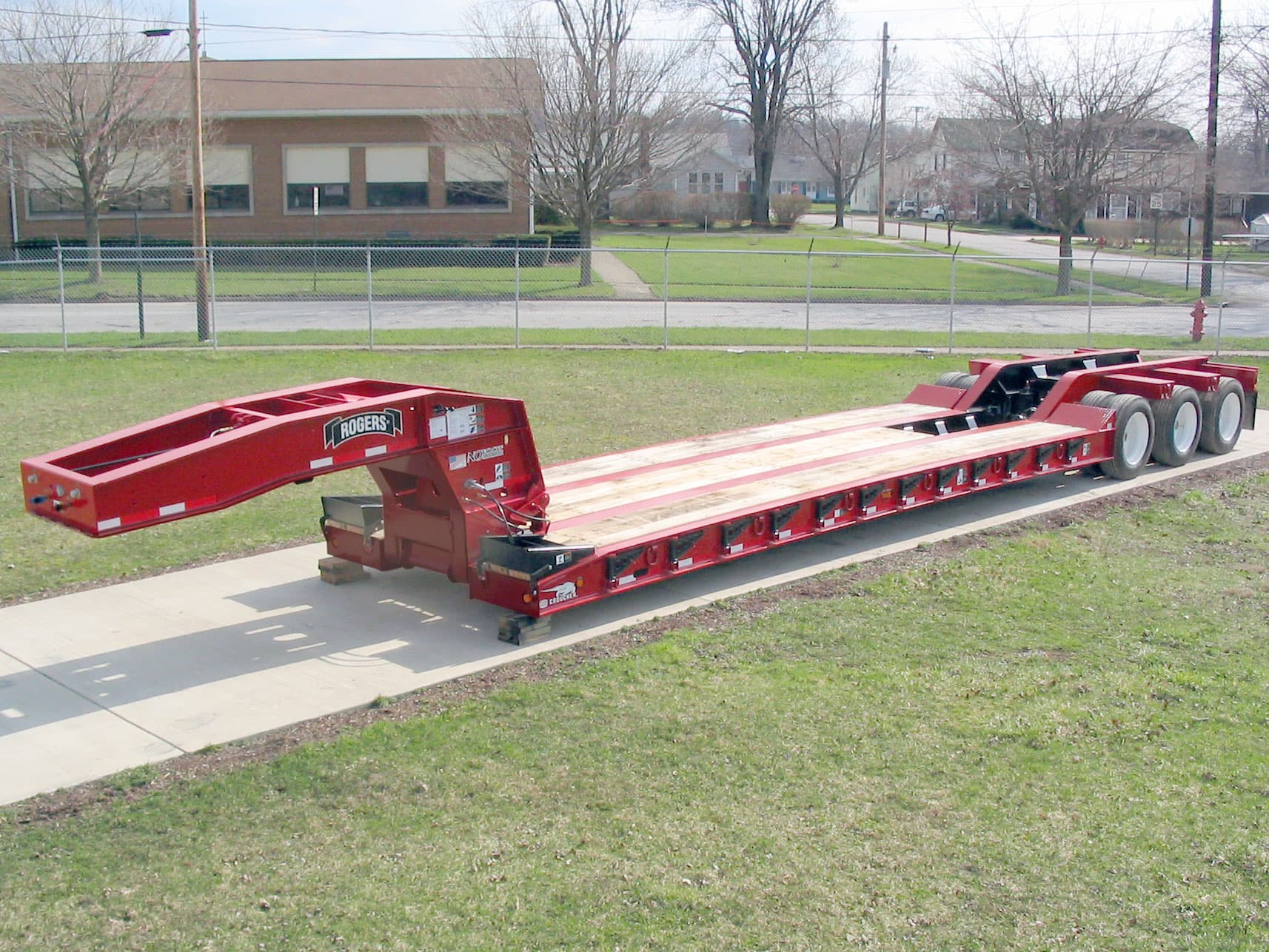

ROGERS® Ultima CR50 is the top of the line lowbed with an unmatched load concentration. Its low deck height with the "bucket pocket" and "boom trough" give better overhead clearance when hauling an excavator. Pictured Options: Center boards installed and front folding ramps. Standard features: "No Foot"® Tower style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with shoe; Hydraulic power source: Tractor PTO; Four-beam cambered frame design with 14" main beams; Exclusive "Croucher"® low, tapered front deck with concealed beam hooks; Side beam flange reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking; No center boards; Total (24) removable swinging side brackets; Total (16) bent lashing D's; "Bucket Pocket"; Arch-type rear frame with sloped bridge ramps; "Boom Trough"; Trunnions between wheels; LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Flag holders; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 50.0-ton
- Concentrated Load
- 100,000-pounds
- Concentrated Load Length
- 12'-0"
Dimensions
- Deck Length
- 24'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
