Rogers Brothers
CR50GR 50-Ton Detachable Gooseneck
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 25 ft
- Deck height
- 20 in
Overview
From Rogers Brothers

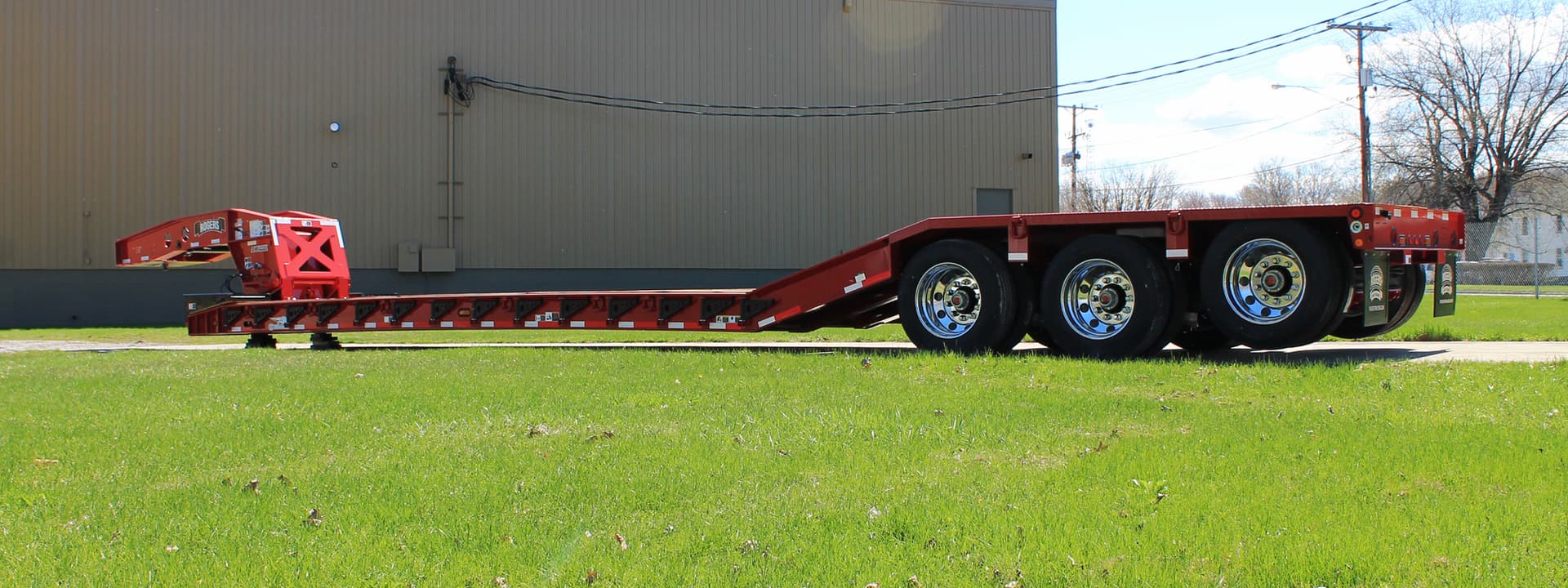

The ROGERS CR50GR is a 50-ton capacity lowboy featuring the often imitated "Gentle Riser" deck style designed to easily load multiple machines. It has the exclusive "Croucher"® low, tapered front end; the "No Foot"® Tower style detachable gooseneck; and air ride suspension. Standard features: "No Foot"® Tower style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Ultima four-beam cambered design with 14" main beams; Exclusive "Croucher"® low, tapered front with concealed beam hooks; Front folding ramps; Side beam flange reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking; Center boards installed; Total (24) removable swinging side brackets; Total (16) bent lashing D's; "Bucket pocket"; 16® "Gentle Riser" includes:Wood-covered riserReinforced 1/4" tread plate wheel coversOutriggers between wheels; Wood-covered riser; Reinforced 1/4" tread plate wheel covers; Outriggers between wheels; LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Cable-pull remote air tank drain; Safety flag holders; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 50.0-ton
- Concentrated Load
- 100,000-pounds
- Concentrated Load Length
- 15'-0"
Dimensions
- Deck Length
- 25'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Gentler Riser
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
